Hager ZAS207BD24A meter connection column 207 base, 2 ZP, 3.HZ, 4p, APZ
|
2.963,86 EUR |
|||||||||||
|
( 3.526,99 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1348947 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | ZAS207BD24A | ||||||||||
| UPC/EAN: | 3250611073611 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for HAGER ZAS207BD24A:
Furthermore, the system is constructed based on the applicable application guidelines of VDE-AR-N 4100:2019-04 including the associated correction VDE-AR-N 4100 Ber 1:2019. Using additional components, the base column is expanded into a ready-to-connect meter connection column of the corresponding VNB.

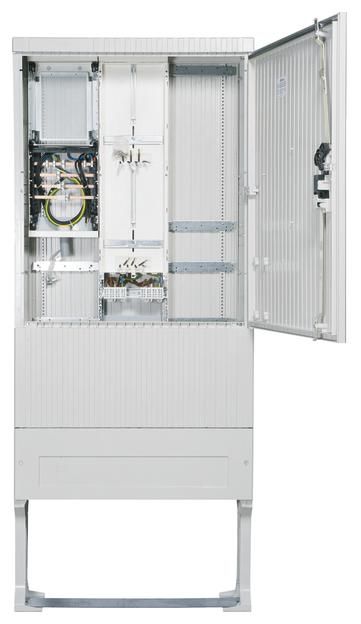

Profiled housing in rib design. Door with opening angle of 180 degrees when free-standing and 90 degrees when mounted in series. Right door can be detached. Locking with swivel lever and three-point bascule lock with 1 or 2 profile half cylinders. Built-in cylinder at the bottom with a same-key series. A second locking cylinder (e.g. from VNB locking system) can be installed at the top after removing the square lock. If a second profile half cylinder is not installed, the second upper opening must be fitted with a blind lock.
Ventilation takes place via labyrinth-like ventilation ducts, prevents the ingress of foreign bodies and is poke-proof. Meter connection columns are built according to the technical guideline: outdoor connection cabinets/connection of fixed switch and control cabinets and meter connection columns to the VNB low-voltage network.
The installation consists of protectively insulated meter fields DIN 43870 (functional areas) for meters. Meter locations are prepared for an IP 44 cover. The buried base and meter connection column form a unit. A floor grate is recommended. To prevent condensation, the base should be filled with base filler up to the height of the cable fastening rail.
Type: ZAS207BD24A
Questions & answers
What is the delivery time of Hager ZAS207BD24A meter connection column 207 base, 2 ZP, 3.HZ, 4p, APZ?
The article Hager ZAS207BD24A meter connection column 207 base, 2 ZP, 3.HZ, 4p, APZ is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of HAGER ZAS207BD24A to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager ZAS207BD24A meter connection column 207 base, 2 ZP, 3.HZ, 4p, APZ always at the best possible price. We can give you a discount of 2% on Hager ZAS207BD24A meter connection column 207 base, 2 ZP, 3.HZ, 4p, APZ if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Hager ZAS207BD24A meter connection column 207 base, 2 ZP, 3.HZ, 4p, APZ we can offer you a price of 2.741,57 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Hager ZAS207BD24A meter connection column 207 base, 2 ZP, 3.HZ, 4p, APZ via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
