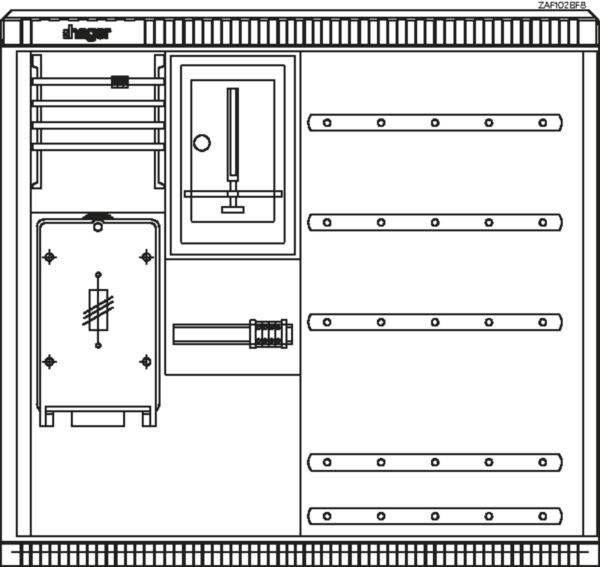

Hager ZAF102BF8
fixed-position distribution enclosure size 2 stationary content_copy

Fairground distribution cabinet, KVS, size 2, stationary, up to 80A, with meter space. Stationary power distribution cabinet for fairgrounds and markets, protection class IP 44, made of glass fiber reinforced polyester FS 833.5 in accordance with DIN EN 14598 with recycled material. DIN VDE 0100 Part 722 regulates the installation for temporary structures, wagons and caravans of the fairground type. Fairground distribution cabinet with meter space up to 80A in accordance with TAB 2000 and busbar system for installing socket strips for individual configuration. Profiled housing in rib design. With busbar system 5-pin E-Cu 30 x 6 mm. Door with opening angle of 180 degrees when free-standing and 90 degrees when housings are arranged in series. Doors can be removed, door can be hinged on the left or right. Locking with swivel lever, three-point bascule lock, double locking, a profile half cylinder is installed. Ventilation takes place via labyrinth-like ventilation ducts and is protected against penetration by foreign bodies. Note: Depending on the design, the fairground distribution cabinet with meter location can be permanently mounted with a fairground buried base or a fairground base/floor-mounted base. When installing socket strips in fairground distribution cabinets and columns that laypeople have access to operate, the person installing the system must ensure protection against direct contact.

General
Nominal voltage	400 V
Nominal current	80 A
Material	Composite material
Surface protection	Untreated
Degree of protection cabinet (IP)	IP44
Colour	Grey
RAL-number	7035
Width	1110 mm
Height	1005 mm
Depth	315 mm
Mounting	Floor
Number of poles	5
Nominal cross section conductor branch cable	25 mm²
Nominal cross section conductor main cable	25 mm²
Degree of protection busbar (IP)	Other
Equipped with busbar
Equipped with connectors
With earthing
With stand (base)
Including floor plate
With mounting plate

---
