Hager Y882E branch cable assembly 25 mm² 5-pole

Your rating:
Average rating
product review for Hager Y882E branch cable assembly 25 mm² 5-pole
( 4.4 / 5 ) 9 ratings
Hager Y882E
This image may differ from the desired article.
112,67 EUR
( 134,08 EUR incl. VAT )
≈ £94.30  |  ≈ $123.82
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 2 pieces
1x Hager Y882E branch cable assembly 25 mm² 5-pole
Datasheet:file_download Download
Lieske Part No.:291998
Mfg Part No: Y882E
UPC/EAN: 4010330731235
Weight:0.86 kg
Type:Y882E
Graduated prices net
From piecesPrice per pieces
5108,44 EUR
10104,22 EUR
1599,99 EUR
2095,77 EUR

Product information for Hager Y882E:

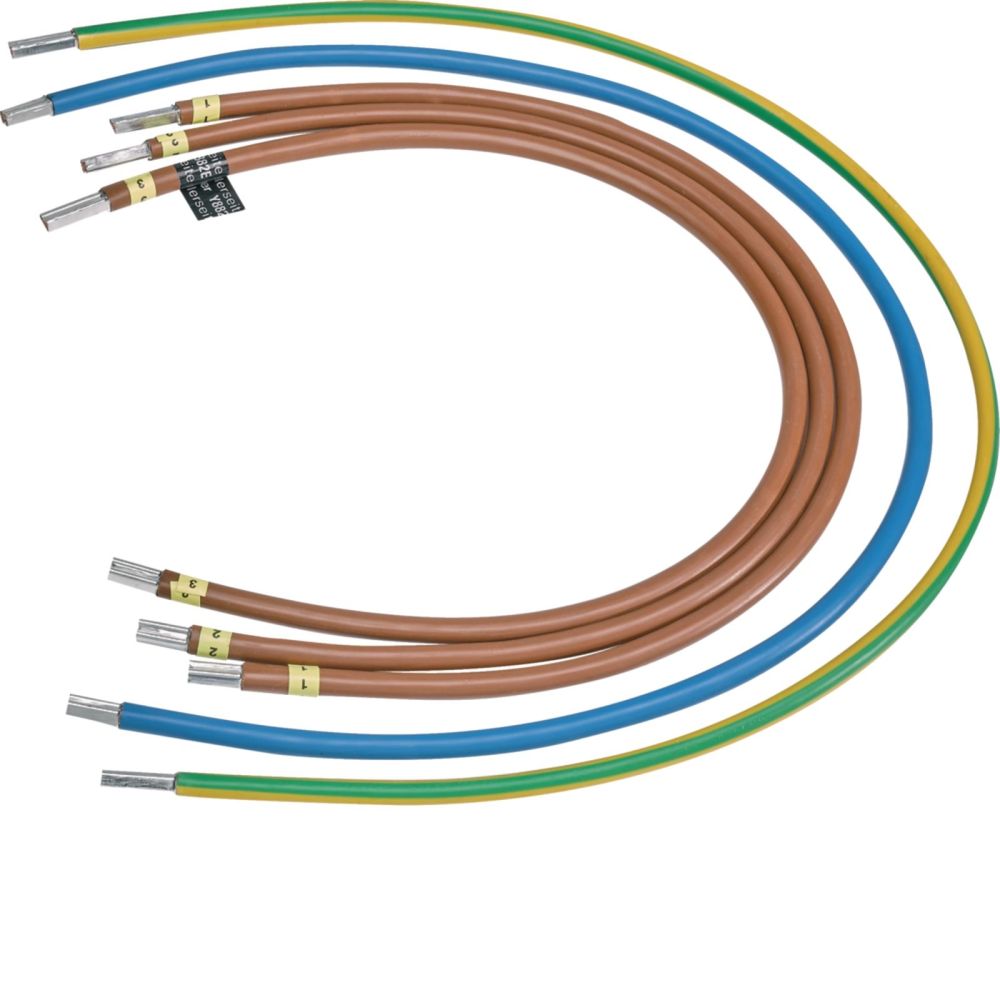

The Hager cable assembly type Y882E is a 5-pole cable assembly for use in meter enclosures and distributors. It is specifically designed for connecting cables with a cross-section of 25 mm² and serves as an incoming and outgoing cable assembly for single-tier mounting plates. The designation univ.Z indicates that it is universally suitable for metering installations. Polarity follows the standard L1, L2, L3, N, PE, with individual conductor lengths of 625 mm (L1, L2, L3), 775 mm (N), and 825 mm (PE). The assembly is configured with H/H ends, indicating a specific cable connection technique optimized for mounting in meter enclosures.

Applications
This cable assembly is used in electrical distribution systems, particularly in meter enclosures, where secure and structured connection of main cables is required. It is intended for use in installations according to DIN VDE 0603/1 and DIN 43 870, which apply to surface, flush, or semi-recessed mounting. The assembly is used in conjunction with metering installations where main cables must be introduced and connected via the lower connection compartment, as required by VDE-AR-N 4100:2019-04.

Functions and Equipment in Detail
The Y882E cable assembly features a fixed 5-pole configuration, with individual conductors designated for phases L1, L2, L3, neutral conductor N, and protective earth conductor PE. The lengths of the individual conductors are dimensioned to allow flexible installation in various enclosure configurations. The cable ends are configured as H/H, ensuring a secure and standardized connection. The conductor cross-sections are each 25 mm², providing high current-carrying capacity and thermal stability.

Technology Explained Simply
The use of 25 mm² cross-section conductors enables safe power transmission under high loads, typical for residential and commercial installations. The 5-pole configuration covers all required conductors to ensure a complete electrical connection. The lengths of the individual conductors (625 mm for phases, 775 mm for N, 825 mm for PE) are chosen to support installation in standard meter enclosures without requiring additional cutting or extension. The H/H ends allow for easy and secure connection to other components within the enclosure.

Compatibility and Accessories
The cable assembly is designed for use in meter enclosures manufactured according to DIN VDE 0603/1 and DIN 43 870. It is part of a modular system intended for installation in single-tier mounting plates. The assembly is used in conjunction with metering installations complying with VDE-AR-N 4100:2019-04, particularly when main cables are introduced from the bottom or side into the lower connection compartment. Compatibility with other components such as busbars or cable distribution boxes is ensured, provided installation instructions are followed.

Installation and Mounting
Mounting is carried out in meter enclosures, with the cable assembly ends secured at designated connection points. The lengths of the individual conductors are designed to support installation in standard configurations. Connections are made via the H/H ends, ensuring a secure and standardized connection. Installation is performed in accordance with the technical connection conditions (TAB) of the VNB and VDE guidelines.

Operational Advantages
The Y882E cable assembly provides a reliable and structured connection of main cables in meter enclosures. The use of 25 mm² conductors ensures high current-carrying capacity and thermal stability. The 5-pole configuration covers all required conductors, enabling a complete electrical connection. The lengths of the individual conductors are dimensioned to support installation in various enclosure configurations without requiring additional processing. The H/H ends ensure a secure and standardized connection, reducing installation time and minimizing error sources.

Sustainability
The cable assembly is REACh-SVHC free and RoHS-compliant, ensuring the use of non-hazardous materials and compliance with European environmental regulations for electrical equipment. These properties are important for disposal and environmental protection throughout the product's lifecycle.

General
Number of poles5


Product data sheet
Datasheet for Hager Y882E, EAN: 4010330731235

Questions & answers

What is the delivery time of Hager Y882E branch cable assembly 25 mm² 5-pole?

The article Hager Y882E branch cable assembly 25 mm² 5-pole is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager Y882E to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Hager Y882E branch cable assembly 25 mm² 5-pole always at the best possible price. We can give you a discount of 2% on Hager Y882E branch cable assembly 25 mm² 5-pole if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Hager Y882E branch cable assembly 25 mm² 5-pole we can offer you a price of 108,44 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
