Hager WTN4041BG auxiliary unit for Uni-rotary switch comfort UP 1930/glass/R.classic

Your rating:
Average rating
product review for Hager WTN4041BG auxiliary unit for Uni-rotary switch comfort UP 1930/glass/R.classic
( 0 / 5 ) 0 ratings
Hager WTN4041BG

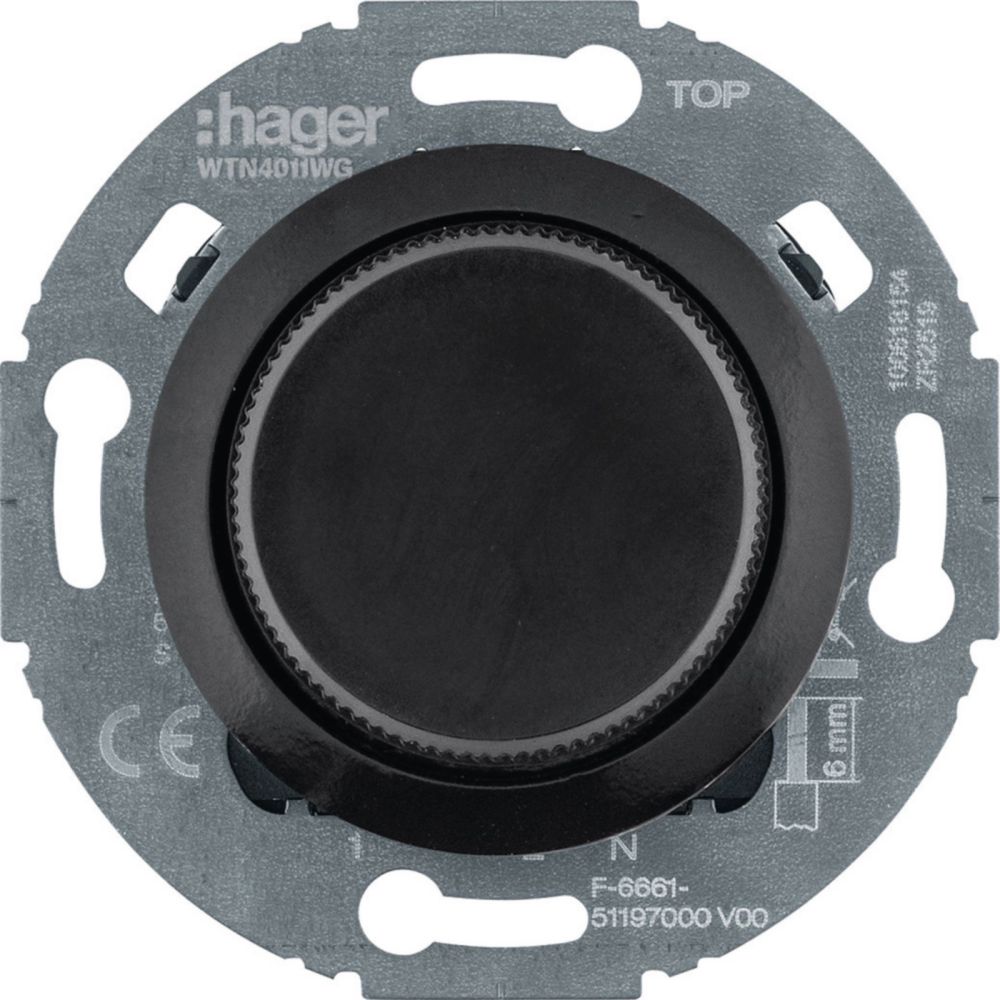

This image may differ from the desired article.
140,69 EUR
( 167,42 EUR incl. VAT )
≈ £117.76  |  ≈ $154.62
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Hager WTN4041BG auxiliary unit for Uni-rotary switch comfort UP 1930/glass/R.classic
Datasheet:file_download Download
Lieske Part No.:892631
Mfg Part No: WTN4041BG
UPC/EAN: 3250610075470
Weight:0.089 kg
Type:WTN4041BG
Graduated prices net
From piecesPrice per pieces
5135,41 EUR
10130,14 EUR
15124,86 EUR
20119,59 EUR

Product information for Hager WTN4041BG:

The article WTN4041BG from Hager is a remote station insert for universal rotary dimmers of the Comfort series, designed as an under-plaster element. It serves as an additional control unit integrated into existing dimming systems to create additional control points for lighting control. The unit is specifically designed for use with models 1930, Glas, and R.classic, enabling decentralized control of light sources without direct connection to the main dimmer. Operation is via a rotary/press button, allowing intuitive and precise adjustment of brightness. The colour is black, approximately matching RAL number 9005, and the surface is glossy, ensuring a modern appearance.

Applications

The remote station insert is suitable for use in residential and commercial rooms where multi-point control of lighting fixtures is required. It is typically used in rooms with multiple entrances or larger areas to allow lighting to be operated from various positions. Installation is under plaster, allowing it to blend visually into the wall and enabling a clean installation. The protection rating IP20 safeguards against contact with moving parts and is suitable for indoor environments without special conditions such as humidity or dust exposure.

Functions and Equipment in Detail

The device features a light level memory that stores the last set brightness value. This allows the lighting to return to the previous level when the switch is operated again, enhancing user-friendliness. Control is via a rotary/press button, which serves both for brightness adjustment and for switching the lighting on and off. The load type is universal and includes LED retrofit lighting, ensuring broad compatibility with modern light sources. Connection is via push-in terminals, enabling quick and secure connections.

Technology Explained Simply

The remote station insert operates with a supply voltage of 230 V and a frequency of 50 to 60 Hz, enabling use in the European power grid. The standby power consumption is 0.30 W, ensuring low energy consumption even when not in active use. Installation is via spring clips, ensuring secure fixation in the installation box. The mounting depth is 24 mm, with a minimum depth of the device box of 27 mm required to ensure correct installation. The dimensions of the device are 71 mm in height and width, and 45 mm in depth, representing a standard size for under-plaster elements.

Compatibility and Accessories

The insert is specifically designed for universal rotary dimmers of the Comfort series from Hager, particularly for models 1930, Glas, and R.classic. It is not intended for use with switches, motion detectors, presence detectors, time switches, function switches, or IR switches. Use with serial dimmers is also not possible. Compatibility is limited to the specified dimmer models, and functions such as light level memory and rotary/press button operation can only be fully utilized in combination with these devices.

Installation and Mounting

Installation is under plaster, with spring clips ensuring secure fixation in the installation box. The mounting depth is 24 mm, with a minimum depth of the device box of 27 mm required to ensure correct installation. Connection is via push-in terminals, enabling quick and secure connections. The materials consist of halogen-free thermoplastic, ensuring high safety and environmental compatibility. The surface is untreated and glossy, ensuring a modern appearance.

Operational Advantages

The insert offers flexible control of lighting fixtures at multiple locations, enhancing user-friendliness. The integrated light level memory function allows the last set brightness value to be retained, making operation intuitive. Use with LED retrofit lighting expands application possibilities and enables modern, energy-efficient lighting. The low standby power consumption of 0.30 W ensures low energy consumption even when not in active use. Installation is simple and uses spring clips, enabling quick and secure installation. The protection rating IP20 safeguards against contact with moving parts and is suitable for indoor environments without special environmental conditions.

Materials and Sustainability

The device is made of halogen-free thermoplastic, ensuring high safety and environmental compatibility. The materials are REACh-SVHC free and RoHS-compliant, confirming compliance with European environmental and safety regulations. The surface is untreated and glossy, ensuring a modern appearance. The colour is black, approximately matching RAL number 9005, and the surface is glossy, ensuring a modern appearance.

Operating Temperature

The operating temperature ranges from -5 °C to +35 °C, enabling use in normal indoor environments. Voltage testing is possible without disassembly, simplifying maintenance and inspection of the device. Installation is via spring clips, ensuring secure fixation in the installation box. Connection is via push-in terminals, enabling quick and secure connections. The materials consist of halogen-free thermoplastic, ensuring high safety and environmental compatibility. The surface is untreated and glossy, ensuring a modern appearance.

Compatibility and Accessories

The insert is specifically designed for universal rotary dimmers of the Comfort series from Hager, particularly for models 1930, Glas, and R.classic. It is not intended for use with switches, motion detectors, presence detectors, time switches, function switches, or IR switches. Use with serial dimmers is also not possible. Compatibility is limited to the specified dimmer models, and functions such as light level memory and rotary/press button operation can only be fully utilized in combination with these devices.

Installation and Mounting

Installation is under plaster, with spring clips ensuring secure fixation in the installation box. The mounting depth is 24 mm, with a minimum depth of the device box of 27 mm required to ensure correct installation. Connection is via push-in terminals, enabling quick and secure connections. The materials consist of halogen-free thermoplastic, ensuring high safety and environmental compatibility. The surface is untreated and glossy, ensuring a modern appearance.

Operational Advantages

The insert offers flexible control of lighting fixtures at multiple locations, enhancing user-friendliness. The integrated light level memory function allows the last set brightness value to be retained, making operation intuitive. Use with LED retrofit lighting expands application possibilities and enables modern, energy-efficient lighting. The low standby power consumption of 0.30 W ensures low energy consumption even when not in active use. Installation is simple and uses spring clips, enabling quick and secure installation. The protection rating IP20 safeguards against contact with moving parts and is suitable for indoor environments without special environmental conditions.

Materials and Sustainability

The device is made of halogen-free thermoplastic, ensuring high safety and environmental compatibility. The materials are REACh-SVHC free and RoHS-compliant, confirming compliance with European environmental and safety regulations. The surface is untreated and glossy, ensuring a modern appearance. The colour is black, approximately matching RAL number 9005, and the surface is glossy, ensuring a modern appearance.

Operating Temperature

The operating temperature ranges from -5 °C to +35 °C, enabling use in normal indoor environments. Voltage testing is possible without disassembly, simplifying maintenance and inspection of the device. Installation is via spring clips, ensuring secure fixation in the installation box. Connection is via push-in terminals, enabling quick and secure connections. The materials consist of halogen-free thermoplastic, ensuring high safety and environmental compatibility. The surface is untreated and glossy, ensuring a modern appearance.

General
Assembly arrangementBasic element with central cover plate
Method of operationTurn/push button
Type of loadUniversal and LED Retrofit
Mounting methodFlush mounted (plaster)
Type of fasteningMounting with claw
MaterialPlastic
Material qualityThermoplastic
Surface protectionUntreated
Surface finishingGlossy
ColourBlack
RAL-number (akin)9005
Suitable for degree of protection (IP)IP20
Nominal voltage230
Frequency60 Hz
Connection typePlug clamp
Width of device71 mm
Height of device71 mm
Depth of device45 mm
Min. depth of built-in installation box27 mm
Number of units1
App control via Bluetoothno
Serial dimmerno
Substation inputno
Light value memoryyes
Applicable with buttonno
Applicable with movement sensorno
Applicable with presence indicatorno
Applicable with time switch/timerno
Applicable with transmission buttonno
Applicable with infrared buttonno
Halogen freeyes
Transparentno


Product data sheet
Datasheet for Hager WTN4041BG, EAN: 3250610075470
