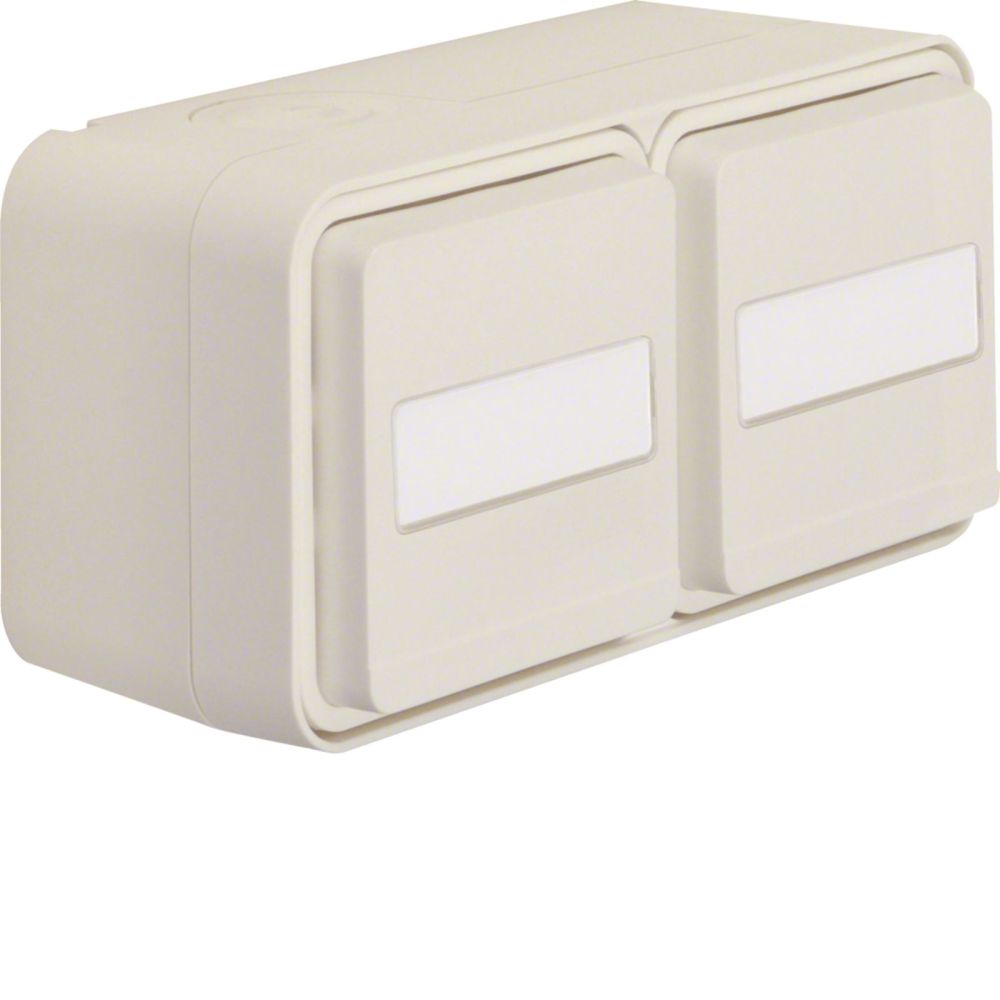

Hager WNC145B socket outlet SCHUKO AP 2-way horizontal with hinged cover and labelling field W.1
|
40,09 EUR 41,78 EUR |
|||||||||||
|
( 47,71 EUR incl. VAT ) ≈ £33.56 | ≈ $44.70 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 892164 | ||||||||||
| Mfg Part No: | WNC145B | ||||||||||
| UPC/EAN: | 3250610102299 | ||||||||||
| Weight: | 0.25 kg | ||||||||||
| Type: | WNC145B | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager WNC145B:
| General | |
| Number of active Pins (round) | 2 |
| Number of active Pins (flat) | 0 |
| Number of modules (module system) | 0 |
| Number of socket outlets switchable | 0 |
| Number of phases | 1 |
| Imprint/indication | None |
| Connection type | Plug clamp |
| Colour | White |
| RAL-number (akin) | 9010 |
| Special power supply | None |
| Mounting method | Surface mounted (plaster) |
| Type of fastening | Mounting with screw |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Frequency | 60 Hz |
| Rated fault current | 0 mA |
| Suitable for degree of protection (IP) | IP55 |
| Impact strength | IK05 |
| Width of device | 147 mm |
| Height of device | 76 mm |
| Depth of device | 65 mm |
| Min. depth of built-in installation box | 0 mm |
| Assembly arrangement | Basic element with complete housing |
| Mounting direction | Horizontal |
| Number of ports USB-A | 0 |
| Number of socket outlets | 2 |
| With signal lamp | |
| With hinged lid | |
| With child-protection | |
| Label space/information surface | |
| Transparent | |
| Lockable | |
| Eject-mechanism | |
| Insulated mounting | |
| With function lighting | |
| With orientation lighting | |
| Over voltage protection | |
| Fault current protection | |
| With miniature fuse | |
| Halogen free | |
| Antibacterial treatment | |
| With on/off switch | |
| With loop through function | |
| Rotated central insert | |
| Concurrently switching N-neutral | |
| IFTTT support available | |
Questions & answers
What is the delivery time of Hager WNC145B socket outlet SCHUKO AP 2-way horizontal with hinged cover and labelling field W.1?
The article Hager WNC145B socket outlet SCHUKO AP 2-way horizontal with hinged cover and labelling field W.1 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager WNC145B to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager WNC145B socket outlet SCHUKO AP 2-way horizontal with hinged cover and labelling field W.1 always at the best possible price. We can give you a discount of 2% on Hager WNC145B socket outlet SCHUKO AP 2-way horizontal with hinged cover and labelling field W.1 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Hager WNC145B socket outlet SCHUKO AP 2-way horizontal with hinged cover and labelling field W.1 we can offer you a price of 37,99 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
