Hager WNC123B socket outlet AP protective earth pin 3-way horizontal BS

Your rating:
Average rating
product review for Hager WNC123B socket outlet AP protective earth pin 3-way horizontal BS
( 0 / 5 ) 0 ratings

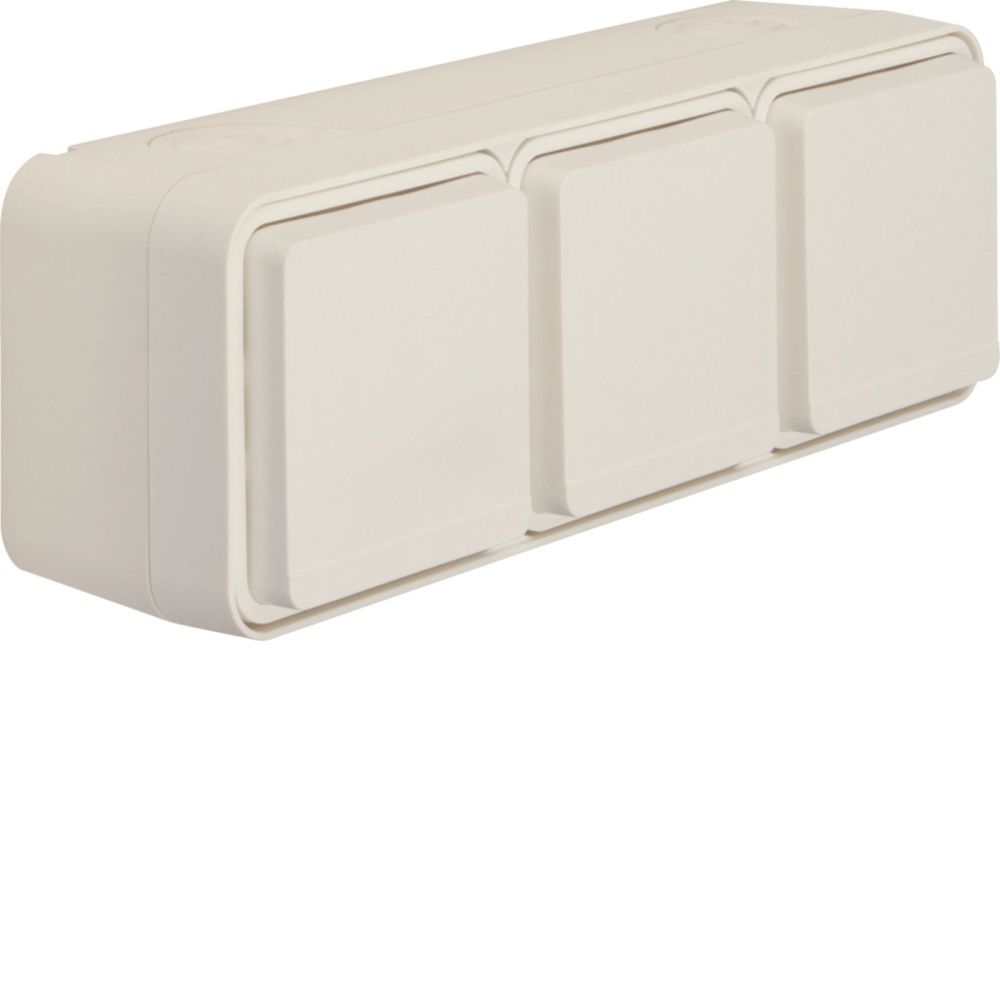

Hager WNC123B
This image may differ from the desired article.
Hager WNC123B
69,06 EUR
( 82,18 EUR incl. VAT )
≈ £57.80  |  ≈ $75.90
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Hager WNC123B socket outlet AP protective earth pin 3-way horizontal BS
Datasheet:file_download Download
Lieske Part No.:892926
Mfg Part No: WNC123B
UPC/EAN: 3250617171250
Weight:0.369 kg
Type:WNC123B
Graduated prices net
From piecesPrice per pieces
665,43 EUR
1261,81 EUR
2458,18 EUR
3654,56 EUR

Product information for Hager WNC123B:

The Hager socket outlet WNC123B is a surface-mounted socket module for use in installation systems, designed as a base element with complete housing. The device features three Schuko socket outlets with protective earth pin, is intended for horizontal mounting, and provides enhanced shock protection. The socket outlet is manufactured in white colour (similar to RAL 9010) with a matte surface from thermoplastic and includes a self-closing hinged cover that can be latched in the closed position. Installation is carried out using screw fastening, with a mounting depth of 65 mm. The socket outlet is suitable for indoor use, with protection rating IP55 ensuring dust- and splash-proof construction, also suitable for outdoor use under protected conditions. The impact resistance is IK05, providing a certain level of mechanical protection.

Applications
The socket outlet WNC123B is designed for use in residential and commercial rooms, particularly in areas where increased mechanical and environmental resistance is required. The IP55 protection rating makes it suitable for rooms with high humidity, such as kitchens, bathrooms, or workshops, as well as for outdoor areas, provided the mounting is protected from direct rainfall. The horizontal mounting and mounting depth of 65 mm allow for flexible integration into existing installation systems.

Functions and Equipment in Detail
The device features three active socket outlets, each with a protective earth pin. The connection is made via push-in terminals designed for conductor cross-sections from 1.0 to 2.5 mm². The socket outlet is equipped with a self-closing hinged cover that protects the sockets from dust and splashing water and can be latched in the closed position. The surface is untreated and matte, enabling robust and easy-to-maintain use. The socket outlet is halogen-free and complies with the requirements of the RoHS directive and REACh SVHC regulation.

Technical Details Explained
The rated voltage is 250 V, the rated current is 16 A, with a frequency range of 50 to 60 Hz. The operating temperature ranges from -15 °C to 30 °C. The protection rating IP55 means the device is protected against dust and splashing water, enabling safe use in humid or slightly soiled environments. The impact resistance IK05 protects against mechanical stresses, such as light impacts or pressure loads. The socket outlet is designed for surface mounting and is secured using screws. The mounting depth is 65 mm, and no back-box is required.

Compatibility and Accessories
The socket outlet WNC123B is designed as a base element with complete housing and can be used in combination with other Hager installation components. The socket outlet does not feature additional functions such as signal lamp, functional lighting, orientation lighting, surge protection, residual current protection, or fine fuse. There is no labelling surface, and the socket outlet is not lockable. Installation is horizontal, with device dimensions of 218 mm (width) × 76 mm (height) × 65 mm (depth).

Installation and Mounting
Installation is carried out using screw fastening on surface mounting. The socket outlet is designed for horizontal mounting, with a mounting depth of 65 mm. The connection terminals are suitable for flexible conductors with a cross-section of 1.0 to 2.5 mm². The socket outlet is not intended for mounting in back-boxes, as the minimum depth is 0 mm.

Operational Advantages
The socket outlet WNC123B provides robust and secure power supply for three consumers. The IP55 protection rating and hinged cover ensure high environmental resistance, allowing the socket outlet to be used in humid or slightly soiled areas. The enhanced shock protection increases safety during use, particularly in areas with increased risk of accidents. The halogen-free design and compliance with RoHS and REACh contribute to environmental compatibility. The socket outlet is designed for an operating temperature range of -15 °C to 30 °C, enabling broad application in various climatic conditions.

General
ModelEarthing pin
Number of active Pins (round)2
Number of active Pins (flat)0
Number of modules (module system)0
Number of socket outlets switchable0
Number of phases1
Imprint/indicationNone
Connection typePlug clamp
ColourWhite
RAL-number (akin)9010
Special power supplyNone
Mounting methodSurface mounted (plaster)
Type of fasteningMounting with screw
MaterialPlastic
Material qualityThermoplastic
Surface protectionUntreated
Surface finishingMatt
Nominal current16 A
Nominal voltage250 V
Frequency60 Hz
Rated fault current0 mA
Suitable for degree of protection (IP)IP55
Impact strengthIK05
Width of device218 mm
Height of device76 mm
Depth of device65 mm
Min. depth of built-in installation box0 mm
Assembly arrangementBasic element with complete housing
Mounting directionHorizontal and vertical
Number of ports USB-A0
Number of socket outlets3
With signal lampno
With hinged lidyes
With child-protectionyes
Label space/information surfaceno
Transparentno
Lockableno
Eject-mechanismno
Insulated mountingyes
With function lightingno
With orientation lightingno
Over voltage protectionno
Fault current protectionno
With miniature fuseno
Halogen freeyes
Antibacterial treatmentno
With on/off switchno
With loop through functionno
Rotated central insertno
Concurrently switching N-neutralno
IFTTT support availableno


Product data sheet
Datasheet for Hager WNC123B, EAN: 3250617171250

Questions & answers

What is the delivery time of Hager WNC123B socket outlet AP protective earth pin 3-way horizontal BS?

The article Hager WNC123B socket outlet AP protective earth pin 3-way horizontal BS is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager WNC123B to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Hager WNC123B socket outlet AP protective earth pin 3-way horizontal BS always at the best possible price. We can give you a discount of 2% on Hager WNC123B socket outlet AP protective earth pin 3-way horizontal BS if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Hager WNC123B socket outlet AP protective earth pin 3-way horizontal BS we can offer you a price of 65,43 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
