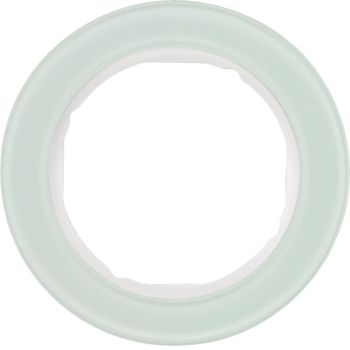

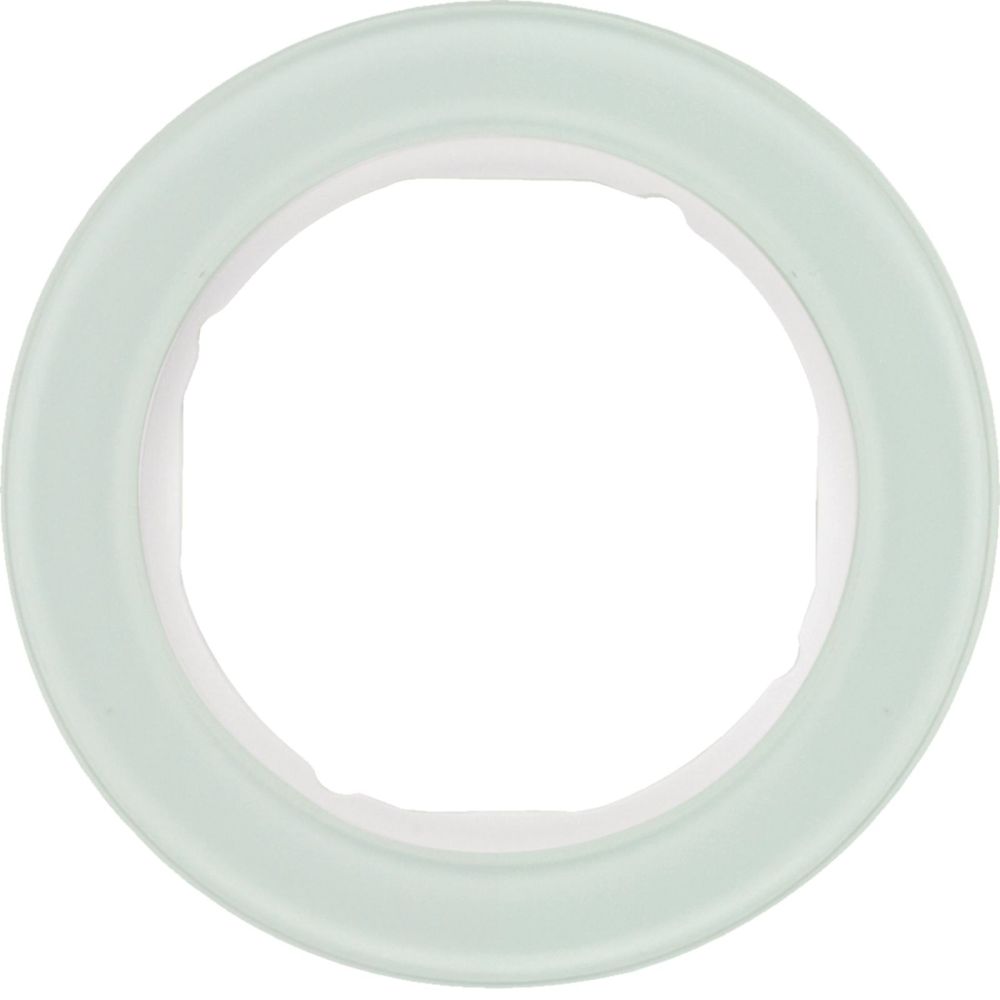

Hager WLD9100GW frame 1-way series R.Classic glass pws mounting material

Your rating:
Average rating
product review for Hager WLD9100GW frame 1-way series R.Classic glass pws mounting material
( 0 / 5 ) 0 ratings
Hager WLD9100GW
This image may differ from the desired article.
37,05 EUR
( 44,09 EUR incl. VAT )
≈ £31.01  |  ≈ $40.72
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 3 pieces
1x Hager WLD9100GW frame 1-way series R.Classic glass pws mounting material
Datasheet:file_download Download
Lieske Part No.:892498
Mfg Part No: WLD9100GW
UPC/EAN: 3250610091036
Weight:0.029 kg
Type:WLD9100GW
Graduated prices net
From piecesPrice per pieces
1035,66 EUR
2534,27 EUR
5032,88 EUR
7531,49 EUR

Product information for Hager WLD9100GW:

The Hager WLD9100GW is a flush-mounted frame from the R.Classic series, designed as a 1-module element with a glass front in polar white. It serves as a mounting component for switches, socket outlets or other electrical components in indoor environments and is typically used in conjunction with a flush-mounted installation system. The carrier material is made of white plastic, ensuring mechanical stability and mounting functionality. The glass front panel provides a glossy, untreated appearance and is finished in polar white, corresponding to RAL 9010. Dimensions are 81.2 mm in width and height, and 9.9 mm in depth, with an inner diameter of the opening measuring 54 mm. Mounting is achieved via clamp fastening, enabling quick and secure attachment to flush-mounted installation elements. The frame is suitable for both horizontal and vertical mounting and can be used in device installation channels.

Applications
This frame is intended for use in indoor environments, particularly in residential and office buildings, where an aesthetically pleasing and functional electrical installation is required. It is not suitable for underfloor duct socket outlets, but for installation in wall or ceiling linings. The protection rating IP20 ensures protection against contact with fingers and against solid foreign objects, but not against water or dust. The impact resistance IK02 protects against minor mechanical stresses, such as those occurring during normal indoor use. The operating temperature ranges from -5 °C to +35 °C, enabling use in climate-controlled indoor spaces.

Functions and Equipment in Detail
The frame features a 1-module opening designed for mounting a single electrical component. It is a module without additional modules or labeling surface. The glass front panel is not transparent, but finished in polar white, allowing it to blend visually into the surrounding environment. The surface is untreated and glossy, creating a clean, modern appearance. The white plastic carrier material ensures stable mounting and is halogen-free, enhancing environmental compatibility. The clamp fastening allows for quick and tool-free installation, requiring no additional fastening elements.

Technology Explained Simply
The protection rating IP20 means the frame is protected against contact with fingers and against entry of solid foreign objects with a diameter of at least 12.5 mm. It is not waterproof or dustproof, and therefore suitable only for dry indoor environments. The impact resistance IK02 corresponds to protection against minor mechanical stresses, such as those occurring during normal handling. The dimensions of 81.2 mm width and height, and 9.9 mm depth, conform to the standard format for flush-mounted installation elements. The opening with an inner diameter of 54 mm is designed for mounting a standard component. Mounting is done by clamping, so no additional fastening elements are required.

Compatibility and Accessories
The frame is suitable for use in device installation channels and can be combined with sealing kits for higher IP ratings (e.g. IP20), thereby extending its application possibilities in more humid environments. Compatibility with other components of the R.Classic series is ensured, as dimensions and mounting methods are standardized.

Mounting and Installation
Mounting is done via clamp fastening, allowing the frame to be directly attached to flush-mounted installation elements. The fastening is tool-free and enables quick installation. Mounting orientation can be horizontal or vertical, depending on installation requirements. The installation width and height are specified as 0 mm, meaning the frame is directly clamped into the designated opening without additional installation measures.

Operational Advantages
The frame offers an aesthetically pleasing solution for indoor installations with a glossy glass front in polar white. The combination of glass and white plastic creates a modern appearance. The halogen-free design and REACh-SVHC-free composition enhance environmental compatibility. The clamp fastening enables quick and tool-free installation, reducing installation time. Use in combination with sealing kits extends application possibilities in humid environments without requiring any modification to the frame itself.

General
Number of units1
Mounting directionHorizontal and vertical
Number of units horizontal1
Number of units vertical1
Number of modules horizontal (module system)0
Number of modules vertical (module system)0
MaterialGlass
Material qualityOther
Surface protectionUntreated
Surface finishingGlossy
ColourWhite
RAL-number (akin)9010
Degree of protection (IP)IP20
Impact strengthIK02
Type of fasteningClamp mounting
Width81.2 mm
Height81.2 mm
Depth9.9 mm
Built-in width0 mm
Built-in height0 mm
Diameter bore hole (opening)54 mm
Inner diameter54 mm
Outer diameter81.20 mm
With mounting gridno
Suitable for floor boxno
Suitable for wall ductyes
Suitable for built-in installationyes
Label space/information surfaceno
Halogen freeyes
Transparentno
With hinged lidno
Antibacterial treatmentno
Flush-mounted installationyes


Product data sheet
Datasheet for Hager WLD9100GW, EAN: 3250610091036
