Hager WDE503404 group push-button 4S 0-position toggle insert UP 10 A

Your rating:
Average rating
product review for Hager WDE503404 group push-button 4S 0-position toggle insert UP 10 A
( 0 / 5 ) 0 ratings

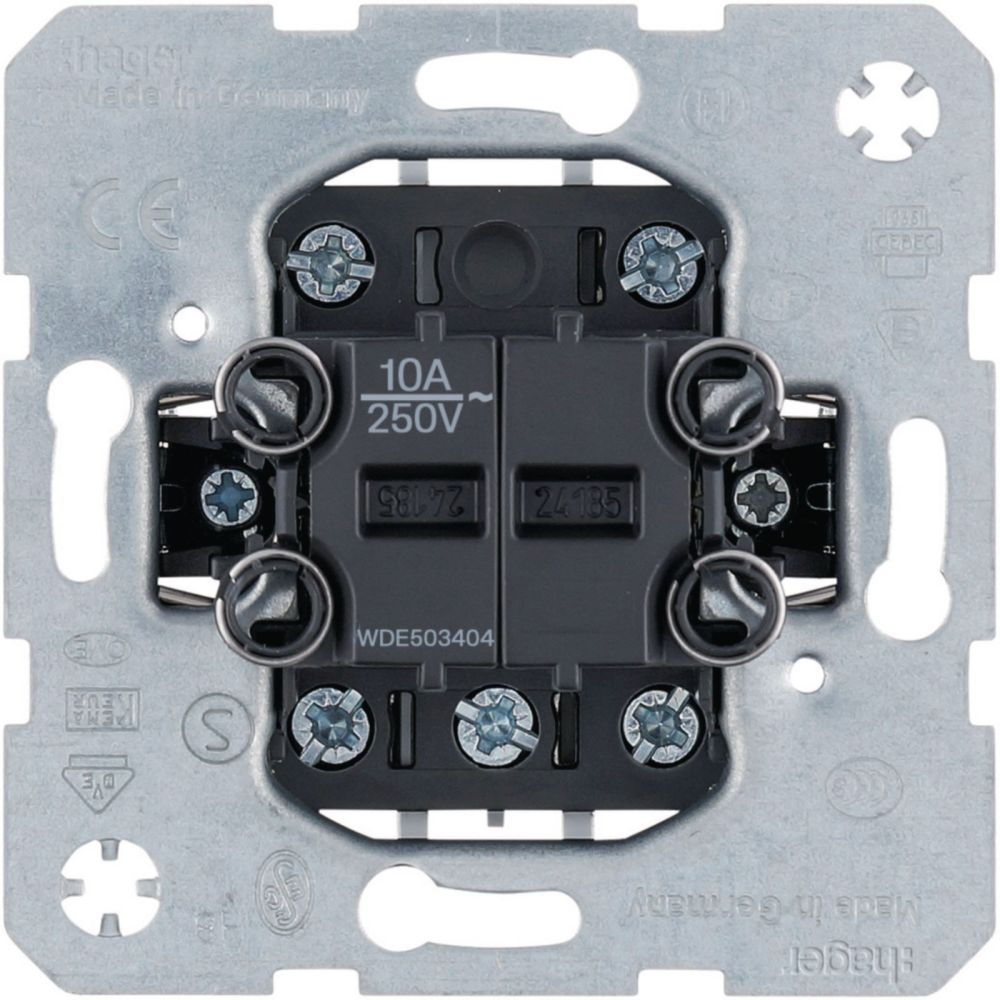

Hager WDE503404
This image may differ from the desired article.
30,11 EUR
( 35,83 EUR incl. VAT )
≈ £25.20  |  ≈ $33.09
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >25 pieces
1x Hager WDE503404 group push-button 4S 0-position toggle insert UP 10 A
Datasheet:file_download Download
Lieske Part No.:892481
Mfg Part No: WDE503404
UPC/EAN: 3250610095386
Weight:0.0827 kg
Type:WDE503404
Graduated prices net
From piecesPrice per pieces
1028,53 EUR
2526,95 EUR
5025,37 EUR
7523,79 EUR

Product information for Hager WDE503404:

The Hager group toggle switch WDE503404 is a flush-mounted switch for controlling lighting in residential and commercial buildings. It features two toggle actuators and is designed as a base element for modular construction, enabling flexible installation options and easy maintenance. The switching function is electromechanical, with the toggle serving as the operating element. The switch is rated for a nominal voltage of 250 V and a rated current of 10 A, making it suitable for typical indoor lighting applications.

Applications

The switch is intended for mounting in flush-mounted boxes and is particularly suitable for residential and commercial rooms where a discreet and functional switching solution is required. The design as a group switch allows for simultaneous control of multiple loads or combination with other modules in a switching field. The 0-position ensures that all switching functions are deactivated in the default position, which is helpful during installation and maintenance.

Functions and equipment in detail

The switch features two independent toggle actuators, each operating a separate switch. The total number of contacts includes six changeover contacts, with each contact arrangement configured as a normally open (NO) and normally closed (NC) contact. This enables flexible wiring, for example, for controlling lights in different rooms or combining with other switching functions. The switching function is achieved via screw terminals, ensuring a secure and reliable connection. Mounting is done using claw and screw fastening, allowing secure installation in standard flush-mounted boxes (60-series and 70-series).

Technology explained simply

The switch is made of metal and plastic, with an untreated, matte surface. The color corresponds approximately to RAL 7035. The impact resistance is IK07, ensuring high mechanical stability against external influences such as light impacts or pressure. The protection rating IP20 protects against contact with fingers and larger solid objects, but is not suitable for outdoor use or in damp rooms. The operating temperature ranges from -5 °C to +35 °C, covering typical indoor environments. The mounting depth is 32 mm, requiring a minimum depth of 35 mm for the device box.

Compatibility and accessories

The switch is suitable for mounting in boxes of types A.1, A.8, C.1, C.8, K.x, Q.x, R.x, S.x, and B.x. It is designed as a modular insert, allowing it to be combined with other modules to create complex switching configurations. The screw terminal connection enables easy and secure wiring. There is no integrated lighting, signal lamp, or feedback contact, meaning the switch operates purely mechanically.

t
Mounting and installation

Mounting is done in flush-mounted boxes using claw and screw fastening. The device dimensions are 71 mm (height) × 71 mm (width) × 41.6 mm (depth). The minimum depth of the device box is 35 mm to ensure secure mounting depth. Installation is performed in standard 60-series and 70-series boxes, with screw terminals enabling secure connection of the wires. The 0-position provides a safe default position, which is helpful during commissioning and maintenance.

Advantages in operation

The switch offers a robust and reliable switching function with high mechanical stability (IK07) and is designed for indoor use. The modular design allows for flexible expansion and maintenance, while the screw terminals ensure a secure and durable connection. The group switch design with two toggles enables control of multiple loads from a single switching field, simplifying planning and installation. Halogen-free and RoHS-compliant, it meets current environmental and safety standards.

General
Assembly arrangementBasic element
ModelGroup push button
Method of operationRocker
Number of poles1
Number of rockers2
Number of modules (module system)0
Mounting methodFlush mounted (plaster)
Type of fasteningMounting with claw and screw
MaterialOther
Material qualityOther
Surface protectionUntreated
Surface finishingMatt
ColourOther
RAL-number (akin)7035
ImprintNone
Suitable for degree of protection (IP)IP20
Nominal voltage250 V
Rated current10 A
Width of device71 mm
Height of device71 mm
Depth of device41.6 mm
Min. depth of built-in installation box35 mm
Connection typeScrewed terminal
Impact strengthIK07
Number of contacts as change-over contact6
Number of contacts as normally closed contact1
Number of contacts as normally open contact1
Operating principleElectromechanical
Feedback-signal contactno
With lightingno
Halogen freeyes
Antibacterial treatmentno
Transparentno
Label space/information surfaceno
With signal lampno
IFTTT support availableno
With light sourceno


Product data sheet
Datasheet for Hager WDE503404, EAN: 3250610095386

Questions & answers

What is the delivery time of Hager WDE503404 group push-button 4S 0-position toggle insert UP 10 A?

The article Hager WDE503404 group push-button 4S 0-position toggle insert UP 10 A is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager WDE503404 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Hager WDE503404 group push-button 4S 0-position toggle insert UP 10 A always at the best possible price. We can give you a discount of 2% on Hager WDE503404 group push-button 4S 0-position toggle insert UP 10 A if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Hager WDE503404 group push-button 4S 0-position toggle insert UP 10 A we can offer you a price of 28,53 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
