Hager WDE383620 key switch 1p UP earthing contact for profile half cylinder

Your rating:
Average rating
product review for Hager WDE383620 key switch 1p UP earthing contact for profile half cylinder
( 0 / 5 ) 0 ratings

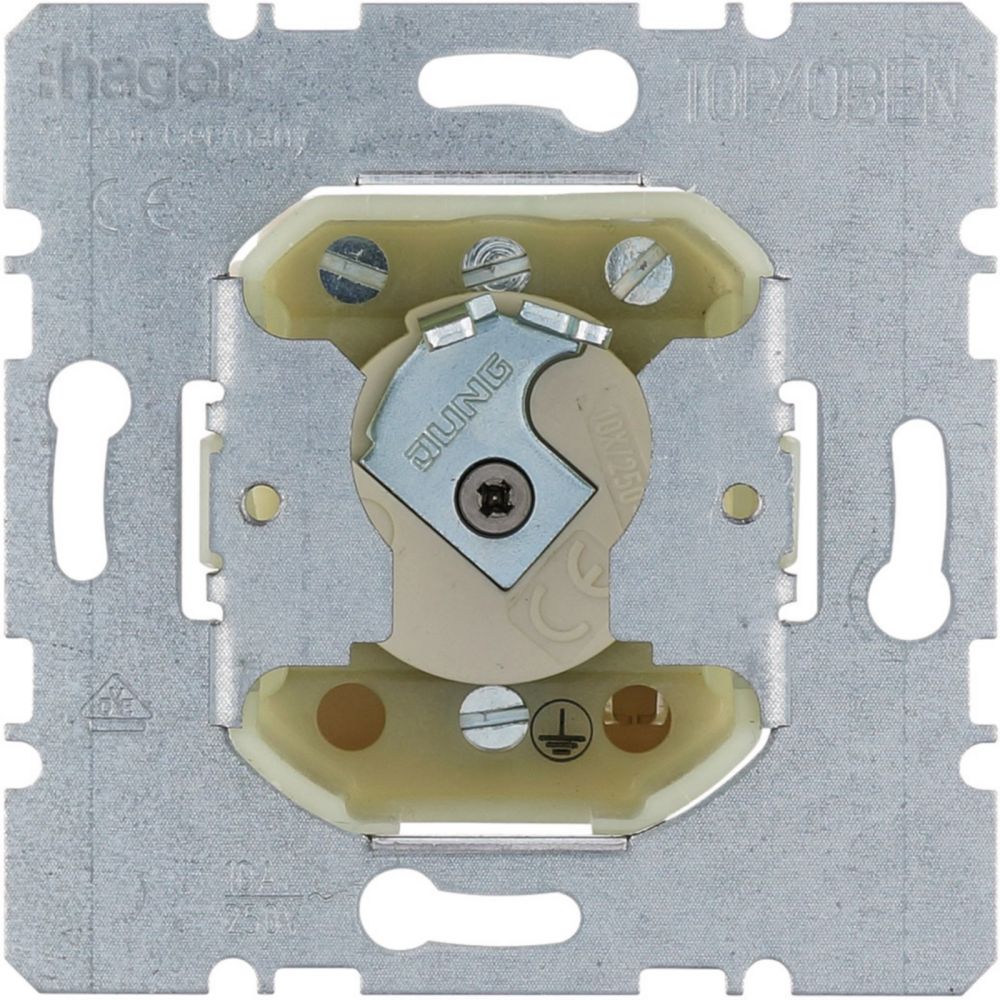

Hager WDE383620
This image may differ from the desired article.
Hager WDE383620
76,00 EUR
( 90,44 EUR incl. VAT )
≈ £63.61  |  ≈ $83.52
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Hager WDE383620 key switch 1p UP earthing contact for profile half cylinder
Datasheet:file_download Download
Lieske Part No.:891632
Mfg Part No: WDE383620
UPC/EAN: 3250610094891
Weight:0.0833 kg
Type:WDE383620
Graduated prices net
From piecesPrice per pieces
673,15 EUR
1270,30 EUR
2467,45 EUR
3664,60 EUR

Product information for Hager WDE383620:

The Hager key changeover switch WDE383620 is a single-pole surface-mounted switch designed specifically for mounting in flush installations. It features an earth contact and is designed for use with profile half-cylinders, making it particularly suitable for security applications in buildings. Operation is via a key that controls the switching function, enabling controlled access to the power supply. The device is part of the modular program for installation switches and is used as a basic component, without an integrated mounting plate.

Applications

The switch is intended for indoor use, particularly in areas where access control is required, such as office buildings, apartments, or industrial facilities. The protection rating IP44 ensures protection against splashing water and dust, making it suitable for rooms with increased humidity or areas with light splashing. The impact resistance IK07 protects the device against mechanical impacts that may occur during normal indoor use.

Functions and Equipment in Detail

The switch features a single operating lever activated by a key. The switching function is configured as a changeover switch, meaning it can switch between two circuits. Electrical specifications include a rated voltage of 250 V and a rated current of 16 A. The switching current for fluorescent lamps is 16 AX, enabling use with fluorescent tubes and similar loads. Connections are made via screw terminals, ensuring a secure and durable connection. The device is halogen-free and complies with the requirements of the RoHS directive and REACh SVHC regulation, ensuring environmental compatibility and safety during use.

Technology Explained Simply

The switch is constructed with a plastic housing featuring a matte, untreated surface in grey (similar to RAL 7035). Dimensions are 71 mm width and 71 mm height, with a device depth of 40.2 mm. The mounting depth is 31 mm, requiring a minimum depth of 35 mm for the device box. Mounting is done via screw fastening, and the device does not include an integrated mounting plate. Frequency compatibility is between 50 and 60 Hz, enabling use in European and international power networks. The switching function is not illuminated, and there are no text fields or labeling surfaces. The use of recycled material is not intended.

Compatibility and Accessories

The switch is designed for use with profile half-cylinders, enabling mechanical locking. Electrical connections are made via screw terminals, ensuring a secure and durable connection.

Mounting and Installation

Mounting is done on flush installation, with screw fastening ensuring the device is securely fixed in the installation space. The mounting depth of 31 mm requires a correspondingly deep device box, with a minimum depth of 35 mm recommended. Mounting is done without an integrated mounting plate, so fastening occurs directly to the wall or within the flush installation. Electrical connections are made via screw terminals, ensuring a secure connection.

Operational Advantages

The switch provides secure and controlled power supply, as the switching function can only be activated by a key. The protection rating IP44 and impact resistance IK07 enhance the reliability and service life of the device. The use of halogen-free plastic and compliance with RoHS and REACh ensure environmentally compatible and safe use. Screw terminals enable easy and secure installation, with dimensions and mounting depth matched to standard installations.

General
Wiring systemTwo-way switch
Method of operationKey
Assembly arrangementModular device for domestic switching devices
Number of modules (module system)0
Number of rockers1
Mounting methodSurface mounted (plaster)
Type of fasteningScrew mounting
MaterialPlastic
Material qualityOther
Surface protectionUntreated
Surface finishingMatt
ColourOther
RAL-number (akin)7035
Function lightingOther
Type of lightingOther
Suitable for degree of protection (IP)IP44
Nominal voltage250 V
Rated current16 A
Switching current for fluorescent lamps16 AX
Connection typeScrewed terminal
Width of device71 mm
Height of device71 mm
Depth of device40.2 mm
Built-in depth31 mm
Min. depth of built-in installation box35 mm
Impact strengthIK07
Imprint/indicationNone
Push button switchno
With mounting plateno
Halogen freeyes
Label space/information surfaceNo
IlluminationNo
Feedback-signal contactno
Washing machine switchno
Antibacterial treatmentno
IFTTT support availableno


Product data sheet
Datasheet for Hager WDE383620, EAN: 3250610094891

Questions & answers

What is the delivery time of Hager WDE383620 key switch 1p UP earthing contact for profile half cylinder?

The article Hager WDE383620 key switch 1p UP earthing contact for profile half cylinder is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager WDE383620 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Hager WDE383620 key switch 1p UP earthing contact for profile half cylinder always at the best possible price. We can give you a discount of 2% on Hager WDE383620 key switch 1p UP earthing contact for profile half cylinder if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Hager WDE383620 key switch 1p UP earthing contact for profile half cylinder we can offer you a price of 73,15 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
