Hager VU60WWV
small distributor for Homeway applications plastic door
|
433,86 EUR 452,13 EUR |
|||||||||||
|
( 516,29 EUR incl. VAT ) ≈ £365.31 | ≈ $487.22 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1352561 | ||||||||||
| Mfg Part No: | VU60WWV | ||||||||||
| UPC/EAN: | 3250616616493 | ||||||||||
| Weight: | 4.715 kg | ||||||||||
| Type: | VU60WWV | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager VU60WWV:

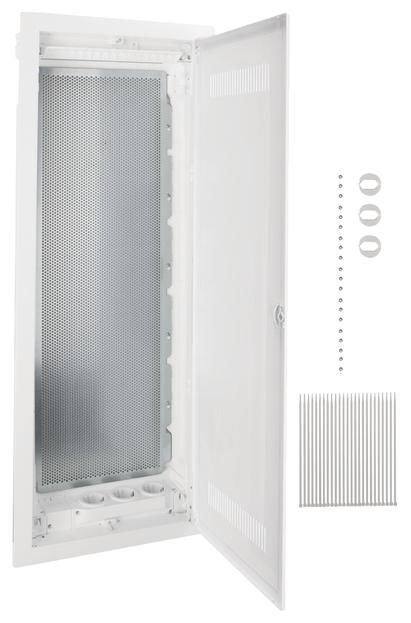

Consists of a plastic wall box with standard cable clamp and break-out cable entry slide with snap fastening and integrated spirit level, including galvanized sheet steel fastening tabs. Rotatable cover frame with ventilation door made of sheet steel with slotted plastic insert for a better WLAN signal, powder-coated and baked, with 15 mm plaster compensation. Ventilation door, flush with the front with internal hand-operated hinges. Door lock with flush handle recess and automatically folding back handle. Door hinge on the right or left without dismantling the cover frame.
Continuously perforated mounting plate made of galvanized sheet steel with 3.2 mm holes for attaching active and passive communication technology. The power supply integrated in the wall box slider is equipped with three protective contact sockets that can be rotated by 90°. The sockets can be connected directly via a connection terminal. The sockets can be fitted with an enclosed protective contact cover to comply with protection class II.
Note: Optimized for use as a central communication distributor for the homeway home cabling system.
| General | |
| Mounting method | Flush mounted (plaster) |
| Number of rows | 5 |
| Width in number of modular spacings | 12 |
| Type of cover | Door |
| Cover model | With notch |
| Material housing | Other |
| Height | 880.5 mm |
| Width | 348 mm |
| Depth | 94.5 mm |
| Built-in depth | 90 mm |
| Internal depth | 91.5 mm |
| Colour | White |
| RAL-number | 9010 |
| Degree of protection (IP) | IP30 |
| Type of closure | Other |
| Built-in height | 865 mm |
| Built-in width | 335 mm |
| Type of door | Single |
| Transparent cover/door | |
| DIN-rail | |
| With mounting plate | |
| Extension possible | |
| With lock | |
