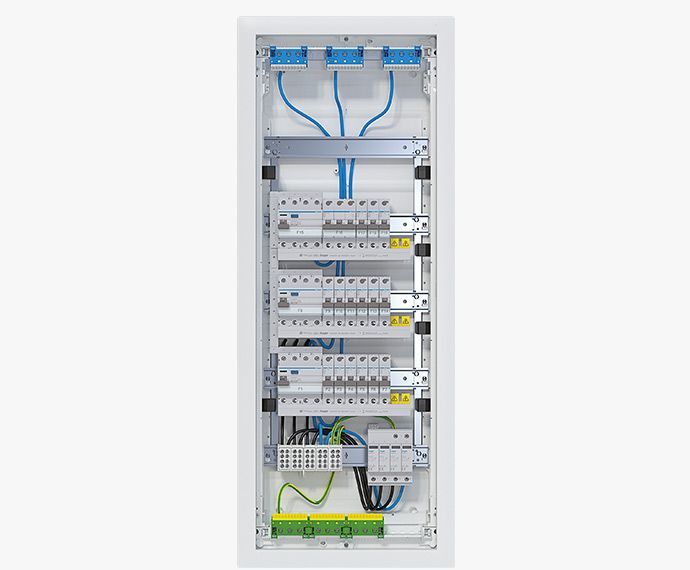

Hager VU60BV1 small v., volta, UPV, 5x12PLE, IP30, equipped

Small distribution board, volta, UPV, 5x12PLE, IP30, equipped and wired, 3 FI circuits, surge arrester. Complete small flush-mounted installation distributor made of plastic, in accordance with DIN VDE 60670-24 and DIN 43871, suitable for use in residential buildings in accordance with DIN 18015. For installation of devices up to 63 A with 70 mm installation depth in accordance with dimensional standard DIN 43880, rated voltage 400V/50Hz. Protection class IP30, protection class II, protectively insulated.
Consists of: plastic wall box with standard cable clamp and break-out cable entry slides with snap-on fastening, integrated spirit level and galvanized sheet steel fastening tabs. Device carrier made of galvanized sheet steel, top hat rails can be installed individually insulated. Device cover made of plastic with 46 mm device slot, quick-release fastening with 90° rotation, sealable as standard. Rotatable cover frame with door made of sheet steel, powder-coated and baked, with 15 mm plaster compensation. Door, flush with internal hand-operated hinges. Door lock with flush-mounted recessed grip and automatically folding back handle, door hinge on the right or left without dismantling the cover frame. Circuit diagram fastening in the door as standard and integrated side cable routing channel with cable retaining clips. Finger-safe PE/N terminal with plug-in technology in easy-to-install snap technology and N terminal for FI circuits as standard.
Equipped and wired with:

• 3 x FI switch, 4-pole, 40A
• 15 x LS switch, 1-pole, 16A
• 1 x LS switch, 3-pole, 20A
• 1 x surge arrester type 2
• 1 main line branch terminal
• including main current wiring.

Type: VU60BV1
