Hager VU48WWV
multimedia distributor for Homeway, UP, 4-row, plastic door
|
377,34 EUR 393,23 EUR |
|||||||||||
|
( 449,03 EUR incl. VAT ) ≈ £317.72 | ≈ $423.75 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1769560 | ||||||||||
| Mfg Part No: | VU48WWV | ||||||||||
| UPC/EAN: | 3250616616486 | ||||||||||
| Weight: | 4.705 kg | ||||||||||
| Type: | VU48WWV | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager VU48WWV:

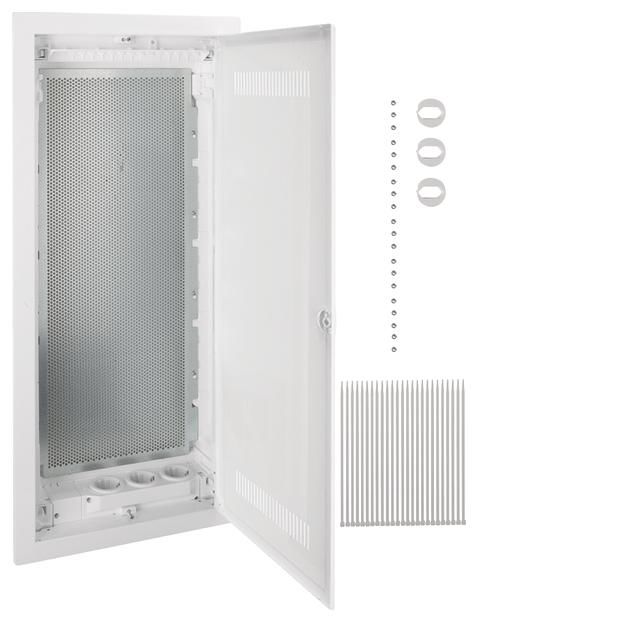

Consists of a plastic wall box with standard cable clamp and break-out cable entry slide with snap fastening and integrated spirit level, including galvanized sheet steel fastening tabs. Rotatable cover frame with ventilation door made of sheet steel with slotted plastic insert for a better WLAN signal, powder-coated and baked, with 15 mm plaster compensation. Ventilation door, flush with the front with internal hand-operated hinges. Door lock with flush handle recess and automatically folding back handle. Door hinge on the right or left without dismantling the cover frame.
Continuously perforated mounting plate made of galvanized sheet steel with 3.2 mm holes for attaching active and passive communication technology. The power supply integrated in the wall box slider is equipped with three protective contact sockets that can be rotated by 90°. The sockets can be connected directly via a connection terminal. The sockets can be fitted with an enclosed protective contact cover to comply with protection class II.
Note: Optimized for use as a central communication distributor for the homeway home cabling system.
| General | |
| Mounting method | Flush mounted (plaster) |
| Number of rows | 4 |
| Width in number of modular spacings | 12 |
| Type of cover | Door |
| Cover model | With notch |
| Material housing | Other |
| Height | 755.5 mm |
| Width | 348 mm |
| Depth | 94.5 mm |
| Built-in depth | 90 mm |
| Internal depth | 91.5 mm |
| Colour | White |
| RAL-number | 9010 |
| Degree of protection (IP) | IP30 |
| Type of closure | Other |
| Built-in height | 740 mm |
| Built-in width | 335 mm |
| Type of door | Single |
| Transparent cover/door | |
| DIN-rail | |
| With mounting plate | |
| Extension possible | |
| With lock | |
Questions & answers
What is the delivery time of Hager VU48WWV multimedia distributor for Homeway, UP, 4-row, plastic door?
The article Hager VU48WWV multimedia distributor for Homeway, UP, 4-row, plastic door is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager VU48WWV to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager VU48WWV multimedia distributor for Homeway, UP, 4-row, plastic door always at the best possible price. We can give you a discount of 2% on Hager VU48WWV multimedia distributor for Homeway, UP, 4-row, plastic door if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Hager VU48WWV multimedia distributor for Homeway, UP, 4-row, plastic door we can offer you a price of 349,04 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
