Hager VA48NW AP Volta, 4, MP, outlet, patch panel
|
382,56 EUR 398,67 EUR |
|||||||||||
|
( 455,25 EUR incl. VAT ) ≈ £329.00 | ≈ $434.97 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Lieske Part No.: | 961924 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | VA48NW | ||||||||||
| UPC/EAN: | 3250616411500 | ||||||||||
| Weight: | 3.691 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Wall, Stand, distribution systems from HagerFurther products in category Wall, Stand, distribution systems
All products of Hager
Product information for Hager VA48NW:

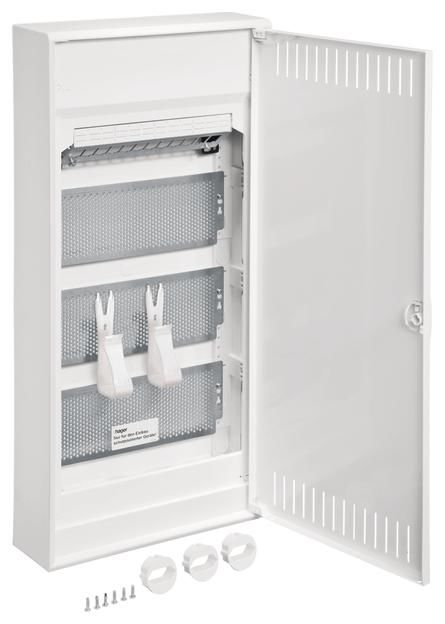

Multimedia, volta, APV, 4-row, with slotted sheet steel door.Small surface-mounted installation distributor made of plastic, in accordance with DIN VDE 61439-3, suitable for use in residential buildings in accordance with DIN 18015 and for the installation of protectively insulated VDI components. Protection class IP30, protection class II protectively insulated.
Consisting of: plastic base plate with standard cable clamp, ventilation door made of powder-coated and baked sheet steel, flush with internal hand-operated hinges. Door lock with flush recessed grip and automatically folding back handle, door hinge on the right or left.
Upper connection compartment: patch panel and DIN top hat rail snapped on insulated to accommodate different communication modules, for the required functional equipotential bonding in accordance with DIN EN 50310 (VDE 0800-2-310) there are 2 screw fastenings on the patch panel. Labeling option with enclosed label strip for port labeling. Pre-assembled perforated mounting plates made of galvanized sheet steel with 3.2 mm holes are installed. A universal bracket can be hung directly on the perforated plate for screwless fastening of VDI components.
A 3-way protective contact socket (rotatable by 90°) is mounted in the lower connection compartment. The sockets can be connected directly via a connection terminal. The sockets can be fitted with an enclosed protective contact cover to comply with protection class II. The 3-way protective contact socket can also be mounted in two positions on a DIN rail.
Note: A type 3 surge protection module can be connected directly (not included).
Type: VA48NW
Consisting of: plastic base plate with standard cable clamp, ventilation door made of powder-coated and baked sheet steel, flush with internal hand-operated hinges. Door lock with flush recessed grip and automatically folding back handle, door hinge on the right or left.
Upper connection compartment: patch panel and DIN top hat rail snapped on insulated to accommodate different communication modules, for the required functional equipotential bonding in accordance with DIN EN 50310 (VDE 0800-2-310) there are 2 screw fastenings on the patch panel. Labeling option with enclosed label strip for port labeling. Pre-assembled perforated mounting plates made of galvanized sheet steel with 3.2 mm holes are installed. A universal bracket can be hung directly on the perforated plate for screwless fastening of VDI components.
A 3-way protective contact socket (rotatable by 90°) is mounted in the lower connection compartment. The sockets can be connected directly via a connection terminal. The sockets can be fitted with an enclosed protective contact cover to comply with protection class II. The 3-way protective contact socket can also be mounted in two positions on a DIN rail.
Note: A type 3 surge protection module can be connected directly (not included).
Type: VA48NW
