Hager UK21R1 building block universN 300x250 mm for LTS 160 A

Your rating:
Average rating
product review for Hager UK21R1 building block universN 300x250 mm for LTS 160 A
( 4.5 / 5 ) 11 ratings

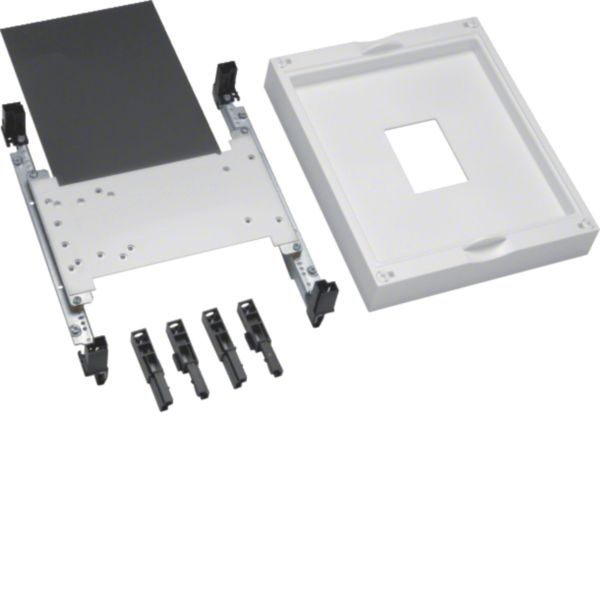

Hager UK21R1
This image may differ from the desired article.
Hager UK21R1Hager UK21R1
149,72 EUR
( 178,17 EUR incl. VAT )
≈ £125.32  |  ≈ $164.54
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: 5 pieces
1x Hager UK21R1 building block universN 300x250 mm for LTS 160 A
Datasheet:file_download Download
Lieske Part No.:210376
Mfg Part No: UK21R1
UPC/EAN: 3250616210608
Weight:1.065 kg
Type:UK21R1
Graduated prices net
From piecesPrice per pieces
5142,98 EUR
10136,25 EUR
15129,51 EUR
20122,77 EUR

Product information for Hager UK21R1:

The Hager component UK21R1 of the universN series is a modular element for low-voltage distribution, designed for the installation of switch disconnectors with a rated operational current of 160 A. With dimensions of 300 mm height, 250 mm width, and 110 mm depth, it fits into standardized distribution and meter cabinet constructions. The device is designed for a rated voltage of 3 AC 690 volts at 50 hertz and serves as a component for setting up switchgear in the field of low-voltage distribution. The cover is sealable and provides shock protection; it is reinforced using gas-injection molding, ensuring high mechanical stability and durability. The cover is made of plastic and is supplied with the component.

Low-voltage distribution
The component UK21R1 is specifically designed for use in low-voltage distribution, where it is integrated as a modular element into switchgear. It enables structured and secure distribution of electrical energy in buildings, industrial facilities, or other applications requiring switch disconnectors up to 160 A. The construction supports integration into larger distribution concepts that can handle up to 1600 A total current.

Functions and equipment in detail
The component is designed for the installation of a switch disconnector, but is not supplied with one. The cover is equipped with four quick-release bolts, enabling secure and rapid mounting and dismounting. The sealable construction ensures safe operation and prevents unauthorized access. The cover is made of plastic and offers a high degree of protection against mechanical stress.

Technology explained simply
The reinforcement of the cover using gas-injection molding ensures high strength and resistance to mechanical forces, such as impact or pressure. This is particularly important in industrial or public facilities where switchgear is subjected to high loads. The rated voltage of 3AC 690 V/50 Hz covers most applications in the low-voltage range, including industrial and commercial facilities. The rating for 160 A allows use in medium to large distribution systems.

Compatibility and accessories
The component is specifically designed for switch disconnectors and cannot be used for power circuit breakers, zero-voltage switches, or transfer switches. Suitable accessories include the blank cover UZ01Z6, which is universally suitable for disconnectors, and the locking bolt UZ06A1, also universally applicable. These components support flexible design of distribution systems and enable clean and orderly installation.

Mounting and installation
Installation is carried out in standardized distribution or meter cabinets, with the component dimensions (300 x 250 x 110 mm) matched to common module sizes. The cover is fastened using the designated quick-release bolts, enabling quick and secure installation.

Advantages in operation
The component UK21R1 offers a safe and reliable solution for low-voltage distribution. The sealable cover ensures a high level of protection and prevents unauthorized access. Reinforcement via gas-injection molding increases mechanical stability and service life. VDE testing in accordance with DIN EN 61 439-1, -2, -3 and DIN 43 870 ensures compliance with applicable safety and quality standards. The modular design allows flexible and scalable adaptation to different requirements.

Compliance with standards
The product is VDE-tested and complies with standards DIN EN 61 439-1, -2, -3 and DIN 43 870. These standards specify requirements for low-voltage switchgear and controlgear, including safety, electrical performance, and mechanical strength. Compliance with these standards ensures that the component can be safely and reliably used in professional applications.

Materials and sustainability
The component is RoHS-compliant and free of REACh-SVHC substances, ensuring environmental compatibility and safety for handling the product. The materials used meet current environmental and safety standards.

Applications
The component is suitable for use in low-voltage distribution in buildings, industrial facilities, commercial enterprises, and other applications requiring switch disconnectors up to 160 A. The modular design enables flexible integration into existing or newly constructed distribution systems.

Manufacturer number and type
The manufacturer number is UK21R1, and the type is defined as universN component 300x250mm for switch disconnector 160A. The dimensions and technical properties are optimized for use in standardized distribution constructions.

General
Height300 mm
Width250 mm
Depth110 mm
Rated operation current160 A
Number of switches1
With coveryes
Plastic cover plateyes
Suitable for switch disconnectoryes
Equipped with switch disconnector compactno
Suitable for power circuit breakeryes
Equipped with power circuit-breakerno
Suitable for no-voltage switchno
Equipped with no-voltage switchno
Suitable for reverserno
Equipped with reverserno
With auxiliary terminalno


Product data sheet
Datasheet for Hager UK21R1, EAN: 3250616210608
