Hager UD32B1 building block universN 450x500 mm 6x12 PLE

Your rating:
Average rating
product review for Hager UD32B1 building block universN 450x500 mm 6x12 PLE
( 4.5 / 5 ) 43 ratings
Hager UD32B1
This image may differ from the desired article.
Hager UD32B1Hager UD32B1
151,43 EUR
( 180,20 EUR incl. VAT )
≈ £126.75  |  ≈ $166.42
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >50 pieces
1x Hager UD32B1 building block universN 450x500 mm 6x12 PLE
Datasheet:file_download Download
Lieske Part No.:277599
Mfg Part No: UD32B1
UPC/EAN: 3250616141285
Weight:2.964 kg
Type:UD32B1
Graduated prices net
From piecesPrice per pieces
5144,62 EUR
10137,80 EUR
15130,99 EUR
20124,17 EUR

Product information for Hager UD32B1:

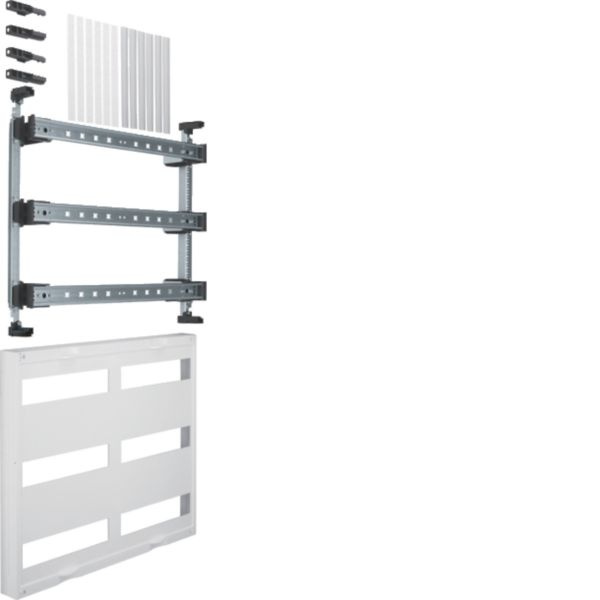

The Hager UD32B1 is a component in the universN design, specifically designed for horizontal mounting of modular devices in distribution enclosures. With dimensions of 450 mm height, 500 mm width, and 125 mm depth, it offers a compact yet functionally equipped space for the installation of low-voltage distribution systems. The module features six DIN rails, each accommodating 12 module positions (PLE), enabling a total of 72 modules. The design is intended for structured and space-saving installation, making mounting in distribution enclosures efficient and clear.

Applications

The UD32B1 is suitable for use in low-voltage distribution systems, particularly in distribution enclosures where modular and flexible segmentation of components is required. It is designed for mounting modular devices such as power switches, fuses, or control elements. The horizontal mounting allows for optimal use of available space and clear structuring of the electrical installation. The design is especially suitable for systems up to a rated current of 1600 A and a rated voltage of 3AC 690 V / 50 Hz.

Functions and Equipment in Detail

The module features a robust plastic construction in pure white (RAL 9010), ensuring high mechanical stability and durability. The six DIN rails are arranged in three rows, with a row spacing of 150 mm. This arrangement enables clear separation of components and facilitates installation and maintenance. The module is designed for surface mounting, allowing flexible integration into existing distribution enclosures. The material selection and construction comply with the requirements of standards DIN EN 61439-1, -2, and -3 (VDE 0660 Part 600-1, -2, and -3), ensuring reliability and safety of the installation.

Technology Explained Simply

The term PLE (module position) refers to the standard unit for mounting components on DIN rails. One PLE corresponds to a defined space requirement that specifies the dimensions and mounting specifications for modules. The UD32B1 offers a total of 72 PLE, distributed across six DIN rails with 12 PLE each. This standardization enables uniform and secure mounting of components. The horizontal mounting of components ensures optimal air circulation and facilitates maintenance. The pure white plastic construction is not only aesthetically pleasing but also resistant to mechanical stress and environmental influences.

Compatibility and Accessories

The UD32B1 is part of the universN system by Hager and can be combined with various accessories to enhance the functionality and safety of the installation. Compatible accessories include, for example, the UZ005 universal labeling strip (set of 12 pieces, adhesive), the ZZ35S lockable cover strip (216 mm for 12 PLE), the UZ05A1 universN hood tower extension (4 pieces included), the UZ06A1 universal locking bolt, and the UZ25V2 universN cable clamp (20 pieces). These accessories support structuring, labeling, and secure fastening of components in the distribution unit.

Mounting and Installation

The UD32B1 is mounted horizontally in distribution enclosures. The module is designed for surface mounting, allowing it to be attached to existing enclosure structures. The DIN rails enable mounting of modules according to DIN 43870, ensuring standardized and secure fastening. The six rails are arranged in three rows with a row spacing of 150 mm. Installation requires no additional tools, although the use of locking bolts (e.g., UZ06A1) enhances installation safety. The module is designed for simple and quick installation, reducing mounting time.

Operational Advantages

The UD32B1 offers high flexibility in designing distribution systems. The modular design allows individual adaptation to specific requirements. The clear structuring provided by the six DIN rails and 72 PLE enhances clarity and facilitates maintenance. The robustness of the plastic construction ensures long service life and high reliability. Compliance with standards DIN EN 61439-1, -2, and -3 (VDE 0660 Part 600-1, -2, and -3) ensures installation safety. Integration into the universN system enables a compatible and expandable distribution solution.

Sustainability

The product is RoHS-compliant, meaning it meets the requirements for restricting the use of certain hazardous substances in electrical and electronic equipment. This contributes to environmental compatibility and safe disposal.

General
Height450 mm
Width500 mm
Depth125 mm
Number of DIN rails6
Number of modular spacings per DIN-rail72
Row distance150 mm
Extension possibleyes
With busbarno


Product data sheet
Datasheet for Hager UD32B1, EAN: 3250616141285
