Hager TYBS692F switching/blind output KNX 2/1-fold +2 inputs UP 6A
|
139,94 EUR 145,83 EUR |
|||||||||||
|
( 166,53 EUR incl. VAT ) ≈ £120.07 | ≈ $159.25 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: 5 pieces | |||||||||||
| Lieske Part No.: | 1062878 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | TYBS692F | ||||||||||
| UPC/EAN: | 3250610050361 | ||||||||||
| Weight: | 0.05 kg | ||||||||||
| Type: | TYBS692F | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager TYBS692F:

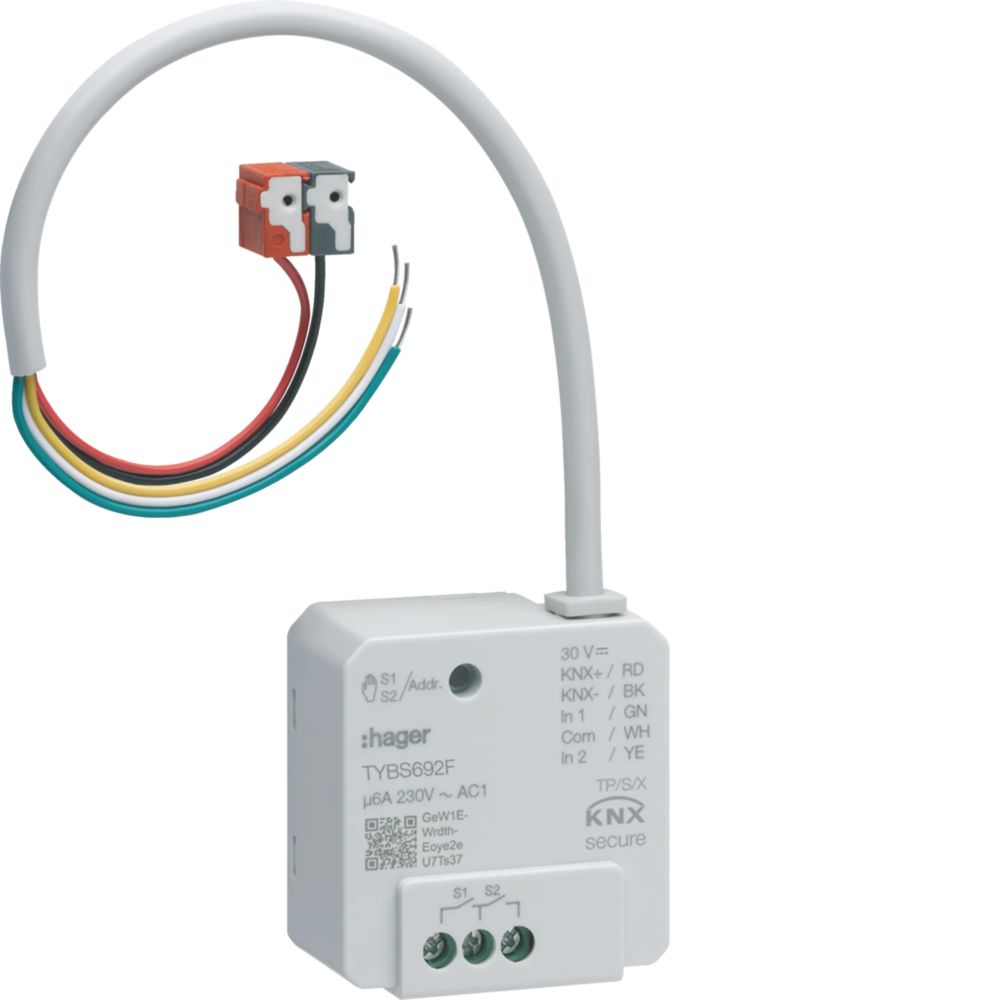

KNX switching/blind output, 2/1-way + 2 inputs, flush-mounted, 6A. Switching/blind actuator (flush-mounted) KNX Secure inputs for switching an independent load using a potential-free contact. Flush-mounted device with integrated bus coupler, bus connection via KNX connection terminal with pre-assembled cable and programming/manual button with integrated LED.
Switching functions: ON/OFF, timer, safety off, forced control, toggle function for time or continuous function, operating hours counter, device diagnostics, lock/logic/preset/delay or scene functions (64 scenes).
Roller shutter/blind drive functions: UP/DOWN/stop, slat position/stop, percentage control for moving to a predefined position, sun protection function (e.g. via external sensor), alarm function for defined position, safety lock, device diagnostics, lock/logic/preset or scene functions (64 scenes).
Binary input functions: Toggle, switching, timer, roller shutter/blind, dimming, heating, forced control, scene, alarm, automatic, load shedding, tariff and window contact.
Note: Commissioning possible with easytool or ETS (from version 4). Observe installation instructions for actuator manufacturers.
Switching functions: ON/OFF, timer, safety off, forced control, toggle function for time or continuous function, operating hours counter, device diagnostics, lock/logic/preset/delay or scene functions (64 scenes).
Roller shutter/blind drive functions: UP/DOWN/stop, slat position/stop, percentage control for moving to a predefined position, sun protection function (e.g. via external sensor), alarm function for defined position, safety lock, device diagnostics, lock/logic/preset or scene functions (64 scenes).
Binary input functions: Toggle, switching, timer, roller shutter/blind, dimming, heating, forced control, scene, alarm, automatic, load shedding, tariff and window contact.
Note: Commissioning possible with easytool or ETS (from version 4). Observe installation instructions for actuator manufacturers.
