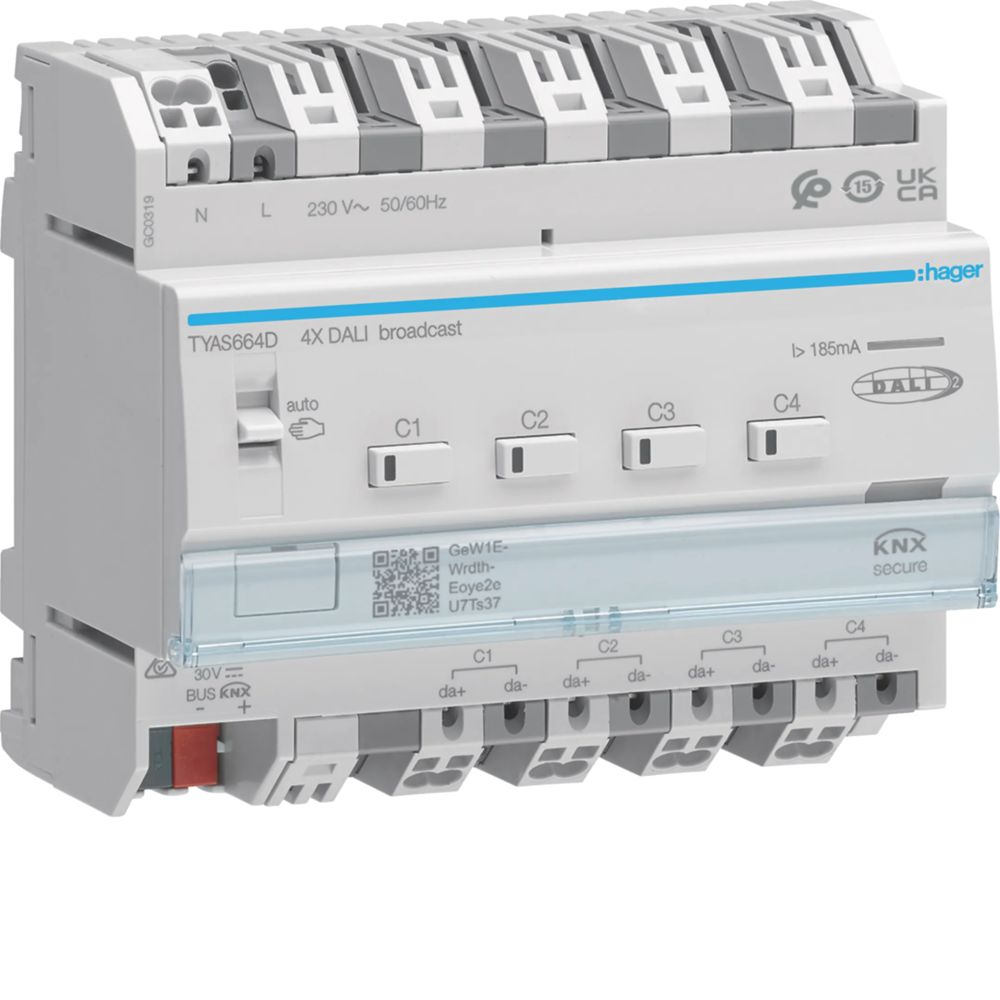

Hager TYAS664D DALI actuator 4-fold KNX easy Broadcast RGB(T)W

DALI actuator 4-way, KNS Secure, easy, broadcast, RGB(T)W.DALI broadcast actuator 4-way (REG) KNX Secure for integrating devices with a DALI interface into the KNX system. The DALI system controls and visualizes a maximum of 94 DALI devices and sets the colors and color temperature for lights with DALI Device Type 8 for Tunable White and Color Control in accordance with IEC 62386-209.
Modular device with mains connection, bus connection via KNX connection terminal, load connections with plug-in terminals, slide switch auto/min/max, illuminated buttons for dimming mode and programming button, control button for manual operation with status LED, control LED for overheating protection, control LED for short circuit and overload protection for each output and labeling field with cover.
With manual operation, the connected DALI devices can be controlled for commissioning on a construction site without the device being supplied with KNX bus voltage or configured. For this purpose, the devices connected to the DALI system are controlled centrally using broadcast commands.
Function: Switching ON/OFF, relative or absolute dimming (dimming value), timer, safety off, forced control, switching between continuous and timed operation, operating hours counter, logic block, device diagnostics, setting the minimum and maximum dimming value, lock/logic/preset/delay/or scene functions.
Note: Commissioning possible with easytool or ETS (from version 5).
Type: TYAS664D
