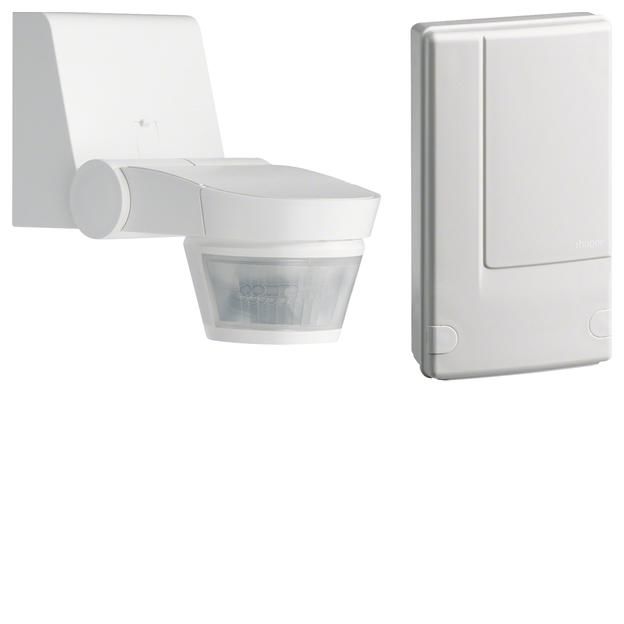

Hager TRE720 wireless AP kit Bw Batt + AP ed, 16A, q.-link

Radio AP kit motion detector battery + AP output 10A, quicklink.Set consisting of radio outdoor motion detector IP55 quicklink and radio KNX AP output device IP55. Radio outdoor motion detector IP55 quicklink for surface mounting as radio solutions in the 868 MHz range with quicklink radio or integration via KNX radio media coupler into the KNX-TP system. Tool-free quicklink push-button mode using configuration button with LED display. Power supply using 3 AAA LR03 1.5V batteries supplied, whereby the configuration remains when the battery is changed. Used to control lighting in commercial buildings and residential houses by detecting moving people. Detection range of 220° with creep-by protection for local detection and a range of max. 16m at a recommended mounting height of approx. 2.5 m. Horizontal lens adjustment of +/- 80° and vertical lens adjustment of +90°/-30° possible. Detection using Fresnel lenses. The monitoring area can be limited using the included covers. The time delay and brightness value can be set directly on the device or using the optional remote control or KNX objects. The sensitivity can be set from 20% to 100%. Installation on walls and ceilings is possible. Can be installed on corners using the optional installation adapter. Radio KNX AP output device IP55 for switching consumers in conjunction with quicklink radio products or KNX-capable bus systems via KNX radio. The device converts the switching information into bidirectional commands. Functions Output ON/OFF, moving roller shutters and blinds, slat adjustment, time functions, priority, 8 freely definable scene functions.
