Hager ST312 safety transformer 230 V/12+24 V 25 VA 4PLE

Your rating:
Average rating
product review for Hager ST312 safety transformer 230 V/12+24 V 25 VA 4PLE
( 4.5 / 5 ) 10 ratings

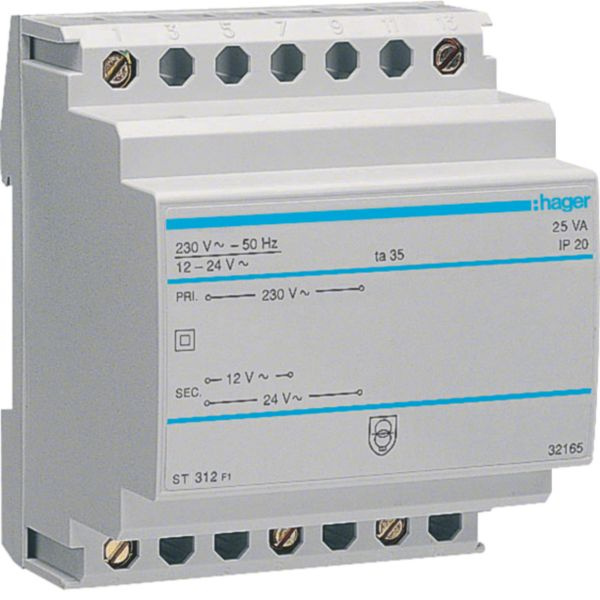

Hager ST312
This image may differ from the desired article.
Hager ST312Hager ST312
106,21 EUR
( 126,39 EUR incl. VAT )
≈ £88.90  |  ≈ $116.72
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces
1x Hager ST312 safety transformer 230 V/12+24 V 25 VA 4PLE
Datasheet:file_download Download
Lieske Part No.:185266
Mfg Part No: ST312
UPC/EAN: 3250615703125
Weight:0.82 kg
Type:ST312
Graduated prices net
From piecesPrice per pieces
599,04 EUR
1091,87 EUR
1584,70 EUR
2077,53 EUR

Product information for Hager ST312:

The Hager safety transformer ST312 is a modular device for voltage conversion in electrical installations. It provides safe power supply for consumers with 12 V and 24 V AC voltage from a primary mains voltage of 230 V. The device is designed for use in electrical systems where galvanic isolation between primary and secondary side is required to ensure user and connected device safety. The transformer is classified as a safety transformer according to DIN VDE 0551 Part 1 and EN 60742, guaranteeing compliance with strict safety standards for insulation and operation.

Applications

The ST312 is intended for indoor use, particularly in electrical distributions where galvanic isolation is necessary. Typical applications include power supply for lighting elements, signaling systems, doorbell systems, or other electrical devices operating at 12 V or 24 V. The maximum output power is 25 VA, equivalent to 25 W output power. The operating temperature ranges from -20 °C to 35 °C, ensuring reliable performance even in cooler environments. The IP20 protection rating prevents entry of solid foreign objects larger than 12.5 mm and protects against contact with internal components.

Functions and Equipment in Detail

The transformer features two secondary voltages: 12 V with a maximum current of 2.08 A and 24 V with a maximum current of 1.04 A. The total maximum output current is 3 A. The output voltages are suitable for supplying various loads, provided the total power does not exceed 25 VA. The transformer is short-circuit proof, meaning it will not be damaged in case of a short circuit in the secondary circuit and maintains stable power supply. An integrated thermal protection safeguards the device against overheating and shuts it off when a critical temperature is reached to prevent damage. The device does not include an integrated on/off switch.

Technology Explained Simply

The ST312 operates as a safety transformer, ensuring galvanic isolation between the mains voltage (230 V) and the output voltages (12 V and 24 V). This isolation reduces the risk of electric shock and is especially required in systems with direct user contact. The insulation voltage is 4000 V, ensuring electrical safety under high voltage stress. The operating frequency is 50 Hz, matching the standard frequency in the German power grid. The connection cross-sections are designed for flexible conductors up to 4 mm² and rigid conductors up to 6 mm², enabling flexible integration into existing installations.

Compatibility and Accessories

The transformer is designed for modular installation on a DIN rail and occupies 4 module units (4PLE). Dimensions are 85 mm (height), 70 mm (width), and 58 mm (depth). Installation is exclusively for surface mounting; flush mounting is not intended. Use in combination with other modular devices is possible as long as the DIN rail provides sufficient width and stability. Compatibility with other devices depends on the mechanical and electrical requirements of the specific installation.

Installation and Mounting

Installation must comply with applicable electrical regulations and standards. Connections are designed for use with flexible and rigid conductors, with maximum cross-sections of 4 mm² (flexible) and 6 mm² (rigid). Wiring must be carried out in accordance with regulations for electrical installations.

Operational Advantages

The ST312 provides reliable and safe power supply for applications requiring galvanic isolation. Integrated protection functions such as short-circuit protection and thermal protection enhance operational safety. The compact design and DIN rail mounting allow flexible integration into existing installations. Halogen-free materials and compliance with RoHS and REACh-SVHC contribute to environmental compatibility. The maximum power loss is 25 W, limiting thermal stress during operation and increasing the device's lifespan.

General
Primary voltage230 V
Secondary voltage 112 V
Secondary voltage 224 V
Secondary amperage 12.08 A
Secondary amperage 21.04 A
Max. output power25 W
Max. output current3 A
Max. power loss25 W
Type of transformerSafety transformer
Length85 mm
Width70 mm
Height58 mm
Width in number of modular spacings4
Modular versionyes
Short-circuit protectedyes
Temperature protectionyes
With on/off switchno
Flush-mounted installationno
Surface mountedyes


Product data sheet
Datasheet for Hager ST312, EAN: 3250615703125
