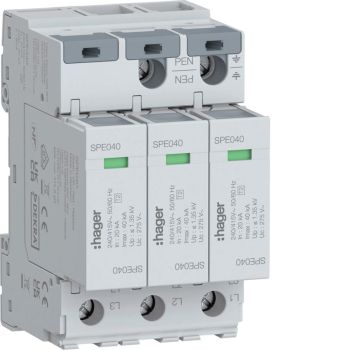

Hager SPE340 surge arrester 3P T2 TNS/TT Uc 275 V In 20 kA Imax 40 kA
|
235,88 EUR 245,82 EUR |
|||||||||||
|
( 280,70 EUR incl. VAT ) ≈ £197.67 | ≈ $264.89 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 614581 | ||||||||||
| Mfg Part No: | SPE340 | ||||||||||
| UPC/EAN: | 3250610087350 | ||||||||||
| Weight: | 0.3392 kg | ||||||||||
| Type: | SPE340 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager SPE340:
| General | |
| Number of conductors (without earthing) | 3 |
| Nominal discharge surge current (8/20) | 20 kA |
| Nominal voltage AC | 415 V |
| Short-circuit breaking capacity (Isccr) | 50 kA |
| Max. continuous voltage AC | 275 V |
| Max. discharge surge current (8/20) | 40 kA |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Construction size | 3 modular spacing |
| Max. PV-voltage | 0 V |
| Voltage protection level | 1.35 kV |
| Max. conductor cross section solid (solid, stranded) | 50 mm² |
| Max. conductor cross section flexible (fine-strand) | 35 mm² |
| Voltage protection level L-N | 1.35 kV |
| Signalling at the device | Optic |
| Degree of protection (IP) | IP2XC |
| System configuration DC | |
| System configuration IT | |
| System configuration TN | |
| System configuration TN-C | |
| System configuration TN-C-S | |
| System configuration TN-S | |
| System configuration TT | |
| System configuration other | |
| With remote signalling contact | |
| Integrated backup fuse | |
| Category type 2 | |
Questions & answers
What is the delivery time of Hager SPE340 surge arrester 3P T2 TNS/TT Uc 275 V In 20 kA Imax 40 kA?
The article Hager SPE340 surge arrester 3P T2 TNS/TT Uc 275 V In 20 kA Imax 40 kA is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager SPE340 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager SPE340 surge arrester 3P T2 TNS/TT Uc 275 V In 20 kA Imax 40 kA always at the best possible price. We can give you a discount of 2% on Hager SPE340 surge arrester 3P T2 TNS/TT Uc 275 V In 20 kA Imax 40 kA if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Hager SPE340 surge arrester 3P T2 TNS/TT Uc 275 V In 20 kA Imax 40 kA we can offer you a price of 223,50 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
