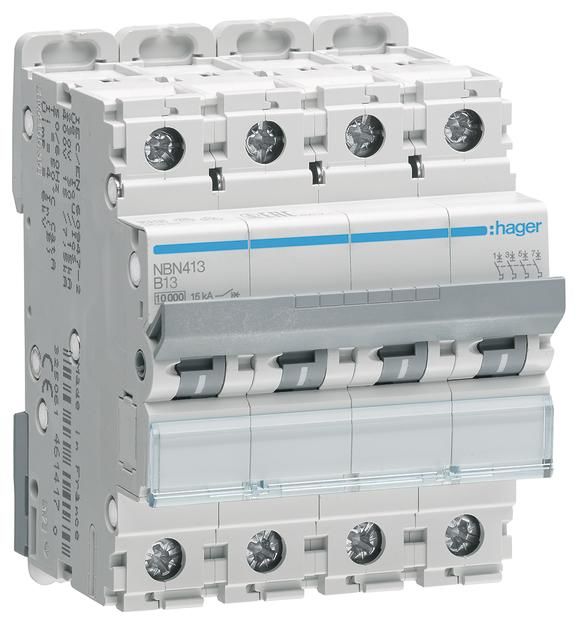

Hager NBN413
circuit breaker 4p 10kA B-characteristic 13A 4 modules
|
112,86 EUR 117,61 EUR |
|||||||||||
|
( 134,30 EUR incl. VAT ) ≈ £94.58 | ≈ $126.74 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1772947 | ||||||||||
| Mfg Part No: | NBN413 | ||||||||||
| UPC/EAN: | 3250614614163 | ||||||||||
| Weight: | 0.425 kg | ||||||||||
| Type: | NBN413 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager NBN413:
| General | |
| Release characteristic | B |
| Number of poles (total) | 4 |
| Number of protected poles | 4 |
| Rated current | 13 A |
| Rated voltage | 400 V |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V | 10 kA |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V | 10 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V | 30 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V | 15 kA |
| Voltage type | AC |
| Frequency | 60 Hz |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 4 |
| Built-in depth | 70 mm |
| Degree of protection (IP) | IP20 |
| Ambient temperature during operating | 70 °C |
| Connectable conductor cross section multi-wired | 25 mm² |
| Connectable conductor cross section solid-core | 35 mm² |
| Power loss | 8.90 W |
| Concurrently switching N-neutral | |
| Additional equipment possible | |
| Explosion-proof | |
| Flush-mounted installation | |
