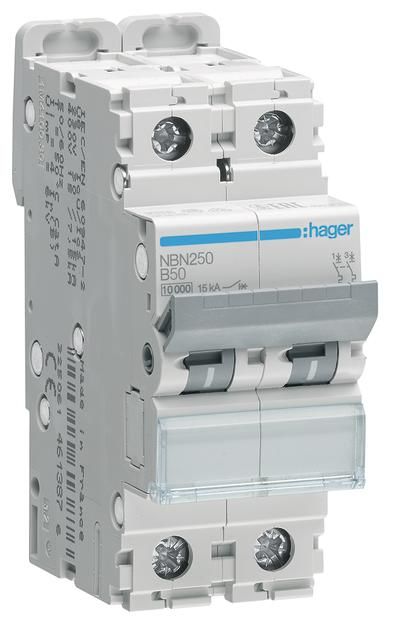

Hager NBN250 circuit breaker 2-pole 10kA/15kA B-50A 2M
|
112,48 EUR 117,22 EUR |
|||||||||||
|
( 133,85 EUR incl. VAT ) ≈ £94.26 | ≈ $126.32 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 2111113 | ||||||||||
| Mfg Part No: | NBN250 | ||||||||||
| UPC/EAN: | 3250614613920 | ||||||||||
| Weight: | 0.245 kg | ||||||||||
| Type: | NBN250 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager NBN250:
| General | |
| Release characteristic | B |
| Number of poles (total) | 2 |
| Number of protected poles | 2 |
| Rated current | 50 A |
| Rated voltage | 400 V |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V | 10 kA |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V | 10 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V | 30 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V | 15 kA |
| Voltage type | AC |
| Frequency | 60 Hz |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 2 |
| Built-in depth | 70 |
| Degree of protection (IP) | IP20 |
| Ambient temperature during operating | 70 °C |
| Connectable conductor cross section multi-wired | 25 mm² |
| Connectable conductor cross section solid-core | 35 |
| Power loss | 10.60 W |
| Concurrently switching N-neutral | |
| Additional equipment possible | |
| Explosion-proof | |
| Flush-mounted installation | |
Questions & answers
What is the delivery time of Hager NBN250 circuit breaker 2-pole 10kA/15kA B-50A 2M?
The article Hager NBN250 circuit breaker 2-pole 10kA/15kA B-50A 2M is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager NBN250 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager NBN250 circuit breaker 2-pole 10kA/15kA B-50A 2M always at the best possible price. We can give you a discount of 2% on Hager NBN250 circuit breaker 2-pole 10kA/15kA B-50A 2M if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Hager NBN250 circuit breaker 2-pole 10kA/15kA B-50A 2M we can offer you a price of 106,57 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
