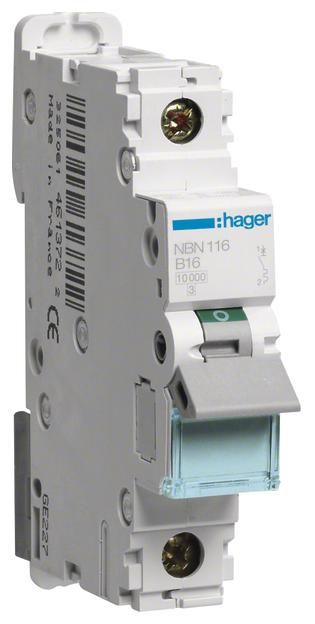

Hager NBN116 MCB 1 pole B-16A 10kA 1M,
|
26,31 EUR 27,42 EUR |
|||||||||||
|
( 31,31 EUR incl. VAT ) ≈ £22.26 | ≈ $29.41 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >50 pieces | |||||||||||
| Lieske Part No.: | 506384 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | NBN116 | ||||||||||
| UPC/EAN: | 3250614613722 | ||||||||||
| Weight: | 0.107 kg | ||||||||||
| Type: | NBN116 | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Circuit breaker from HagerFurther products in category Circuit breaker
All products of Hager
Product information for Hager NBN116:
Circuit breaker 1-pole 10kA/15kA B-16A 1M. Circuit breaker in accordance with DIN EN 60898-1 (VDE 0641-11) with time-delayed thermal release for overload protection and electromagnetic release for short-circuit protection. Suitable for the subsequent installation of additional devices. Labeling option directly on the device and individual removal from the phase busbar assembly by unlocking the quick-release top hat rail fastening.
| General | |
| Release characteristic | B |
| Number of poles (total) | 1 |
| Number of protected poles | 1 |
| Rated current | 16 A |
| Rated voltage | 400 V |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V | 10 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V | 15 kA |
| Voltage type | AC |
| Frequency | 60 Hz |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 1 |
| Built-in depth | 70 mm |
| Degree of protection (IP) | IP20 |
| Ambient temperature during operating | 70 °C |
| Connectable conductor cross section multi-wired | 25 mm² |
| Connectable conductor cross section solid-core | 35 mm² |
| Power loss | 2.62 W |
| Concurrently switching N-neutral | |
| Additional equipment possible | |
| Explosion-proof | |
| Flush-mounted installation | |
Questions & answers
What is the delivery time of Hager NBN116 MCB 1 pole B-16A 10kA 1M, ?
The article Hager NBN116 MCB 1 pole B-16A 10kA 1M, is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager NBN116 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager NBN116 MCB 1 pole B-16A 10kA 1M, always at the best possible price. We can give you a discount of 2% on Hager NBN116 MCB 1 pole B-16A 10kA 1M, if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Hager NBN116 MCB 1 pole B-16A 10kA 1M, we can offer you a price of 24,93 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
