Hager Logo

Hager NBN106
LS-switch 1P 10kA B-6A 1M

Your rating:
Average rating
product review for Hager NBN106 LS-switch 1P 10kA B-6A 1M
( 4.4 / 5 ) 10 ratings

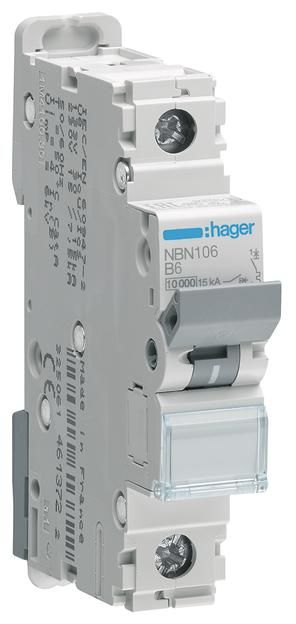

Hager NBN106
This image may differ from the desired article.
Hager NBN106Hager NBN106
30,40 EUR
( 36,18 EUR incl. VAT )
≈ £25.44  |  ≈ $33.41
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >25 pieces
1x Hager NBN106 LS-switch 1P 10kA B-6A 1M
Datasheet:file_download Download
Lieske Part No.:650765
Mfg Part No: NBN106
UPC/EAN: 3250614613692
Weight:0.111 kg
Type:NBN106
Graduated prices net
From piecesPrice per pieces
1028,80 EUR
2527,21 EUR
5025,61 EUR
7524,02 EUR

Product information for Hager NBN106:

Circuit breaker 1-pole 10kA/15kA B-6A 1M. Circuit breaker in accordance with DIN EN 60898-1 (VDE 0641-11) with time-delayed thermal release for overload protection and electromagnetic release for short-circuit protection. Suitable for the subsequent installation of additional devices. Labeling option directly on the device and individual removal from the phase busbar assembly by unlocking the quick-release top hat rail fastening.

General
Release characteristicB
Number of poles (total)1
Number of protected poles1
Rated current6 A
Rated voltage400 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp6 kV
Rated short-circuit breaking capacity Icn EN 60898 at 230 V10 kA
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V15 kA
Voltage typeAC
Frequency60 Hz
Current limiting class3
Over voltage category3
Pollution degree2
Width in number of modular spacings1
Built-in depth70 mm
Degree of protection (IP)IP20
Ambient temperature during operating70 °C
Connectable conductor cross section multi-wired25 mm²
Connectable conductor cross section solid-core35 mm²
Power loss1.33 W
Concurrently switching N-neutralno
Additional equipment possibleyes
Explosion-proofno
Flush-mounted installationyes


Product data sheet
Datasheet for Hager NBN106, EAN: 3250614613692

Questions & answers

What is the delivery time of Hager NBN106 LS-switch 1P 10kA B-6A 1M?

The article Hager NBN106 LS-switch 1P 10kA B-6A 1M is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager NBN106 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Hager NBN106 LS-switch 1P 10kA B-6A 1M always at the best possible price. We can give you a discount of 2% on Hager NBN106 LS-switch 1P 10kA B-6A 1M if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Hager NBN106 LS-switch 1P 10kA B-6A 1M we can offer you a price of 28,80 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
