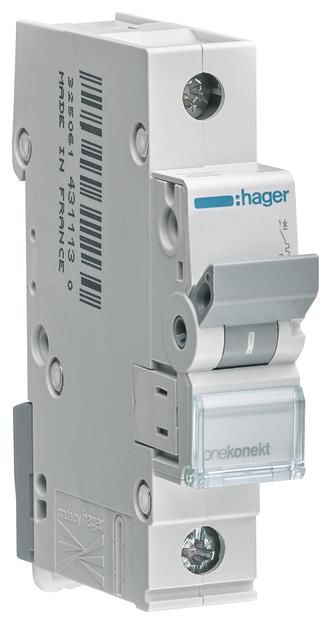

Hager Machine 1 Built-pin C6 MCN106,
|
31,16 EUR 32,47 EUR |
|||||||||||
|
( 37,08 EUR incl. VAT ) ≈ £26.36 | ≈ $34.84 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Lieske Part No.: | 836094 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | MCN106 | ||||||||||
| UPC/EAN: | 3250614311123 | ||||||||||
| Weight: | 0.094 kg | ||||||||||
| Type: | MCN106 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager MCN106:
| General | |
| Release characteristic | C |
| Number of poles (total) | 1 |
| Number of protected poles | 1 |
| Rated current | 6 A |
| Rated voltage | 400 |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V | 6 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V | 10 kA |
| Voltage type | AC |
| Frequency | 60 |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 1 |
| Built-in depth | 70 mm |
| Degree of protection (IP) | IP20 |
| Ambient temperature during operating | 70 |
| Connectable conductor cross section multi-wired | 25 |
| Connectable conductor cross section solid-core | 35 |
| Power loss | 1.30 W |
| Concurrently switching N-neutral | |
| Additional equipment possible | |
| Explosion-proof | |
| Flush-mounted installation | |
Questions & answers
What is the delivery time of Hager Machine 1 Built-pin C6 MCN106,?
The article Hager Machine 1 Built-pin C6 MCN106, is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager MCN106 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager Machine 1 Built-pin C6 MCN106, always at the best possible price. We can give you a discount of 2% on Hager Machine 1 Built-pin C6 MCN106, if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Hager Machine 1 Built-pin C6 MCN106, we can offer you a price of 28,12 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Hager Machine 1 Built-pin C6 MCN106,
 |
Hager spacer 9 LZ060 mm, for mounting on DIN rail
Spacer Cross section: 9 mm ² Type: LZ060 Quantity: 1 unit. Lieske Part No.: 178169 Mfg Part No: LZ060 |
3,32 EUR 3,47 EUR
 ≈ £2.81 | ≈ $3.71
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager K67H cable bridge NYAF 6qmm 110mm long
Cable bridge NYAF 6 mm², 110mm long, pin, color black Lieske Part No.: 419408 Mfg Part No: K67H |
-5% 1,26 EUR 1,32 EUR
≈ £1.07 | ≈ $1.41
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
|
 |
Hager K67C cable bridge NYAF 10qmm 110mm long
Cable bridge NYAF 10 mm², 110mm long, pin, color black Lieske Part No.: 440816 Mfg Part No: K67C |
5,51 EUR 5,74 EUR
≈ £4.66 | ≈ $6.16
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
|
 |
Hager SD signal contact MZ202, 6 amp 230 volt 0.5 PLE
Signal contact for MCB RCBO 125A 1 NO and 1 NC 6A 240V Lieske Part No.: 502785 Mfg Part No: MZ202 |
45,79 EUR 47,72 EUR
≈ £38.74 | ≈ $51.19
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Hager auxiliary switch 6 amps MZ201,
Auxiliary contact for MCB RCBO 125A 1 NO and 1 NC 6A 240V Lieske Part No.: 547425 Mfg Part No: MZ201 |
31,35 EUR 32,67 EUR
≈ £26.52 | ≈ $35.05
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
|
|
Hager Locking MZN175, for LS-cabinet
Locking device for circuit breakers FI-switch FI-LS-switch Lieske Part No.: 565350 Mfg Part No: MZN175 |
8,26 EUR 8,61 EUR
≈ £6.99 | ≈ $9.23
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager sealable U841,
Transparent cover 53 x 53 mm Sealable, for the installation of fuses D, DII or main switch type: U84 ST. Lieske Part No.: 829644 Mfg Part No: U841 |
12,73 EUR 13,27 EUR
≈ £10.77 | ≈ $14.23
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
