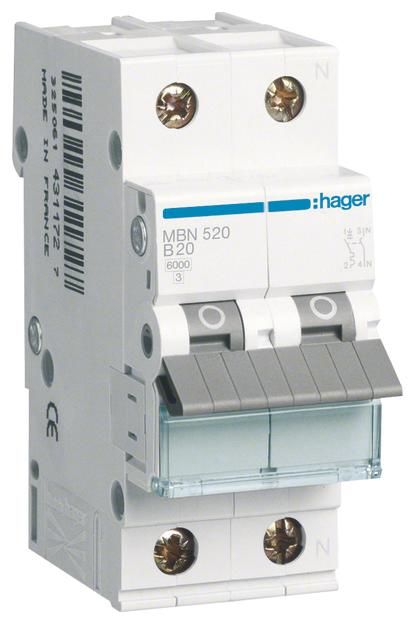

Hager MBN520
LS-switch 1P+N 6kA B-20A 2M
|
46,64 EUR 48,61 EUR |
|||||||||||
|
( 55,50 EUR incl. VAT ) ≈ £39.08 | ≈ $52.38 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 639784 | ||||||||||
| Mfg Part No: | MBN520 | ||||||||||
| UPC/EAN: | 3250614310713 | ||||||||||
| Weight: | 0.2068 kg | ||||||||||
| Type: | MBN520 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager MBN520:
| General | |
| Release characteristic | B |
| Number of poles (total) | 2 |
| Number of protected poles | 1 |
| Rated current | 20 A |
| Rated voltage | 230 |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V | 6 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V | 10 kA |
| Voltage type | AC |
| Frequency | 60 |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 2 |
| Built-in depth | 70 mm |
| Degree of protection (IP) | IP20 |
| Ambient temperature during operating | 70 |
| Connectable conductor cross section multi-wired | 25 |
| Connectable conductor cross section solid-core | 35 |
| Power loss | 5.60 W |
| Concurrently switching N-neutral | |
| Additional equipment possible | |
| Explosion-proof | |
| Flush-mounted installation | |
Questions & answers
What is the delivery time of Hager MBN520 LS-switch 1P+N 6kA B-20A 2M?
The article Hager MBN520 LS-switch 1P+N 6kA B-20A 2M is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager MBN520 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager MBN520 LS-switch 1P+N 6kA B-20A 2M always at the best possible price. We can give you a discount of 2% on Hager MBN520 LS-switch 1P+N 6kA B-20A 2M if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Hager MBN520 LS-switch 1P+N 6kA B-20A 2M we can offer you a price of 44,19 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
