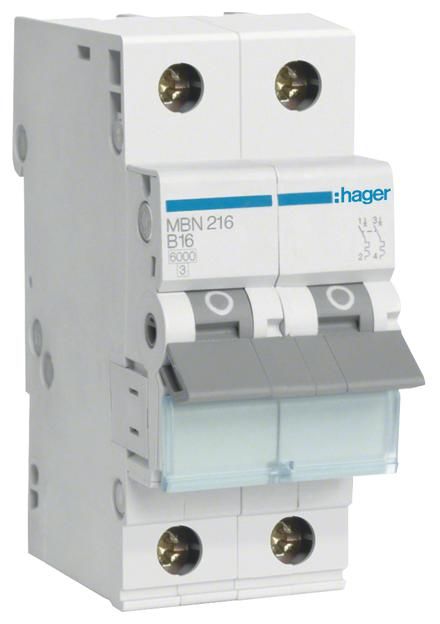

Hager MBN216 LS switch 2P 6kA B-16A 2M
|
52,72 EUR 54,95 EUR |
|||||||||||
|
( 62,74 EUR incl. VAT ) ≈ £44.60 | ≈ $58.94 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Lieske Part No.: | 379558 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | MBN216 | ||||||||||
| UPC/EAN: | 3250614310256 | ||||||||||
| Weight: | 0.001 kg | ||||||||||
| Type: | MBN216 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager MBN216:
| General | |
| Release characteristic | B |
| Number of poles (total) | 2 |
| Number of protected poles | 2 |
| Rated current | 16 A |
| Rated voltage | 400 |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V | 6 kA |
| Voltage type | AC |
| Frequency | 60 |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 2 |
| Built-in depth | 70 mm |
| Degree of protection (IP) | IP20 |
| Ambient temperature during operating | 70 |
| Connectable conductor cross section multi-wired | 25 |
| Connectable conductor cross section solid-core | 35 |
| Power loss | 4.20 W |
| Concurrently switching N-neutral | |
| Additional equipment possible | |
| Explosion-proof | |
| Flush-mounted installation | |
Questions & answers
What is the delivery time of Hager MBN216 LS switch 2P 6kA B-16A 2M?
The article Hager MBN216 LS switch 2P 6kA B-16A 2M is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager MBN216 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager MBN216 LS switch 2P 6kA B-16A 2M always at the best possible price. We can give you a discount of 2% on Hager MBN216 LS switch 2P 6kA B-16A 2M if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Hager MBN216 LS switch 2P 6kA B-16A 2M we can offer you a price of 49,95 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
