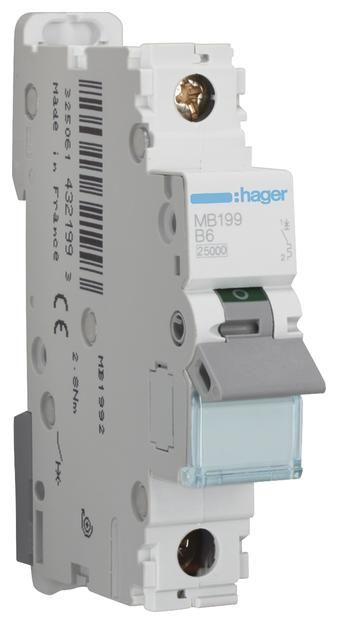

Hager MB199 LS switch 1P 25kA B-6A 1M
|
38,66 EUR 40,29 EUR |
|||||||||||
|
( 46,01 EUR incl. VAT ) ≈ £32.71 | ≈ $43.22 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: 4 pieces | |||||||||||
| Lieske Part No.: | 340445 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | MB199 | ||||||||||
| UPC/EAN: | 3250614321993 | ||||||||||
| Weight: | 0.111 kg | ||||||||||
| Type: | MB199 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager MB199:
| General | |
| Release characteristic | B |
| Number of poles (total) | 1 |
| Number of protected poles | 1 |
| Rated current | 6 A |
| Rated voltage | 400 V |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V | 25 kA |
| Voltage type | AC |
| Frequency | 60 Hz |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 1 |
| Built-in depth | 70 mm |
| Degree of protection (IP) | IP20 |
| Ambient temperature during operating | 70 °C |
| Connectable conductor cross section multi-wired | 25 mm² |
| Connectable conductor cross section solid-core | 35 mm² |
| Power loss | 1.33 W |
| Concurrently switching N-neutral | |
| Additional equipment possible | |
| Explosion-proof | |
| Flush-mounted installation | |
Questions & answers
What is the delivery time of Hager MB199 LS switch 1P 25kA B-6A 1M?
The article Hager MB199 LS switch 1P 25kA B-6A 1M is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager MB199 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager MB199 LS switch 1P 25kA B-6A 1M always at the best possible price. We can give you a discount of 2% on Hager MB199 LS switch 1P 25kA B-6A 1M if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Hager MB199 LS switch 1P 25kA B-6A 1M we can offer you a price of 37,21 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Hager MB199 LS switch 1P 25kA B-6A 1M
 |
Hager spacer 9 LZ060 mm, for mounting on DIN rail
Spacer Cross section: 9 mm ² Type: LZ060 Quantity: 1 unit. Lieske Part No.: 178169 Mfg Part No: LZ060 |
3,32 EUR 3,47 EUR
 ≈ £2.81 | ≈ $3.71
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager K67H cable bridge NYAF 6qmm 110mm long
Cable bridge NYAF 6 mm², 110mm long, pin, color black Lieske Part No.: 419408 Mfg Part No: K67H |
-5% 1,26 EUR 1,32 EUR
≈ £1.07 | ≈ $1.41
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
|
 |
Hager K67C cable bridge NYAF 10qmm 110mm long
Cable bridge NYAF 10 mm², 110mm long, pin, color black Lieske Part No.: 440816 Mfg Part No: K67C |
5,51 EUR 5,74 EUR
≈ £4.66 | ≈ $6.16
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
|
 |
Hager SD signal contact MZ202, 6 amp 230 volt 0.5 PLE
Signal contact for MCB RCBO 125A 1 NO and 1 NC 6A 240V Lieske Part No.: 502785 Mfg Part No: MZ202 |
45,79 EUR 47,72 EUR
≈ £38.74 | ≈ $51.19
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Hager auxiliary switch 6 amps MZ201,
Auxiliary contact for MCB RCBO 125A 1 NO and 1 NC 6A 240V Lieske Part No.: 547425 Mfg Part No: MZ201 |
31,35 EUR 32,67 EUR
≈ £26.52 | ≈ $35.05
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager sealable U841,
Transparent cover 53 x 53 mm Sealable, for the installation of fuses D, DII or main switch type: U84 ST. Lieske Part No.: 829644 Mfg Part No: U841 |
12,73 EUR 13,27 EUR
≈ £10.77 | ≈ $14.23
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
