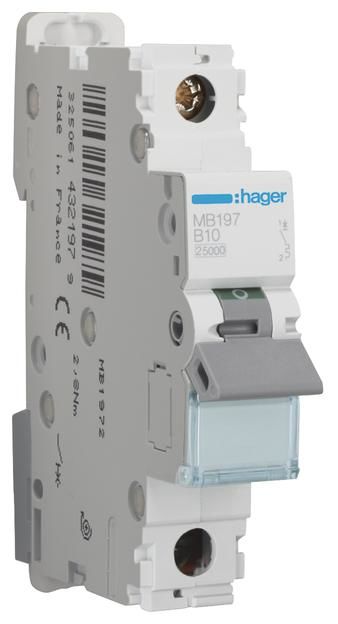

Hager MB197
LS switch 1P 25kA B-10A 1M
|
35,24 EUR 36,73 EUR |
|||||||||||
|
( 41,94 EUR incl. VAT ) ≈ £29.81 | ≈ $39.40 plus delivery charges: 53,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 611478 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | MB197 | ||||||||||
| UPC/EAN: | 3250614321979 | ||||||||||
| Weight: | 0.105 kg | ||||||||||
| Type: | MB197 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager MB197:
| General | |
| Release characteristic | B |
| Number of poles (total) | 1 |
| Number of protected poles | 1 |
| Rated current | 10 A |
| Rated voltage | 400 V |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V | 25 kA |
| Voltage type | AC |
| Frequency | 60 Hz |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 1 |
| Built-in depth | 70 mm |
| Degree of protection (IP) | IP20 |
| Ambient temperature during operating | 70 °C |
| Connectable conductor cross section multi-wired | 25 mm² |
| Connectable conductor cross section solid-core | 35 mm² |
| Power loss | 1.87 W |
| Concurrently switching N-neutral | |
| Additional equipment possible | |
| Explosion-proof | |
| Flush-mounted installation | |
Questions & answers
What is the delivery time of Hager MB197 LS switch 1P 25kA B-10A 1M?
The article Hager MB197 LS switch 1P 25kA B-10A 1M is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager MB197 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager MB197 LS switch 1P 25kA B-10A 1M always at the best possible price. We can give you a discount of 2% on Hager MB197 LS switch 1P 25kA B-10A 1M if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Hager MB197 LS switch 1P 25kA B-10A 1M we can offer you a price of 33,39 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
