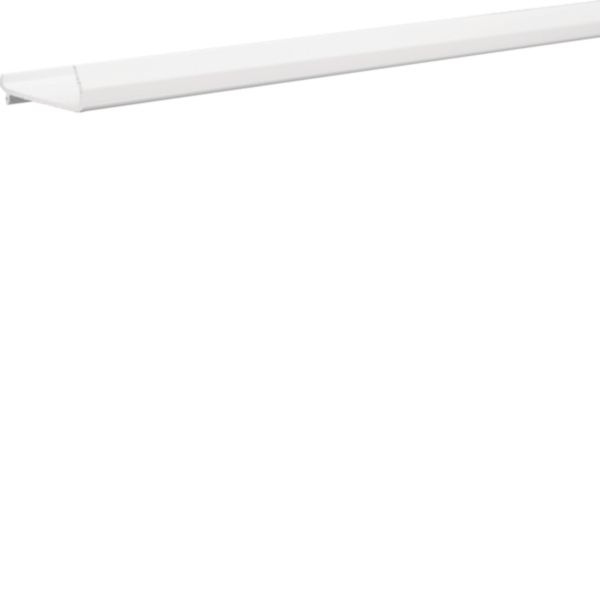

Hager M1839 partition panel BRH/BRHN 1-piece halogen-free with C-slot content_copy

The partition panel M1839 from Hager is a single-element component for segmenting cable ducts with C-profile. It enables structured cable routing and allows for clear separation of different cable types within a single duct, minimizing electromagnetic interference. The partition panel is halogen-free, making it suitable for applications requiring low smoke emission and high fire safety, such as office buildings, administrative buildings, or other sensitive environments. The material durability ensures long service life and enhances operational safety.

Partition panel for ducts with C-profile is specifically designed for an installation height of 68 mm, making it compatible with ducts of types BRH 65x100, BRH 65x130, BRH 65x170, and BRH 65x210D. The length is 2000 mm, allowing it to be used in longer duct sections without additional connections. Installation is done by inserting it into the C-profile of the duct, enabling quick and tool-free mounting. The partition panel is made of PC-ABS, a plastic known for its high mechanical strength and heat resistance.

Halogen-free means that the material does not release toxic halogen compounds during a fire, increasing safety in case of fire. The partition panel is also RoHS-compliant and REACH-SVHC free, confirming compliance with European environmental and safety regulations. The surface is untreated, allowing for easy processing and installation without additional pre-treatment.

The impact resistance IK07 ensures that the partition panel is resistant to mechanical stresses such as minor impacts or vibrations during operation. The operating temperature is up to 90 °C, enabling use in environments with increased heat load, for example near electrical equipment or in enclosed enclosures. The color of the partition panel is gray, providing a neutral appearance that blends into various installation scenarios.

The partition panel is designed for structured cable routing and supports maintenance through clear demarcation of cable paths. It is particularly suitable for applications requiring clear separation between data and power cables to avoid interference. The installation method allows flexible adaptation to existing duct structures without additional mounting aids.

Cable duct accessories such as this partition panel are often used in combination with other components like covers, end caps, or mounting elements to create a complete cable management system. Compatibility with the specified duct types (BRH series) ensures secure and stable installation. The partition panel does not include additional tools or fastening materials; installation is done exclusively by inserting it into the C-profile of the duct.

Using the partition panel M1839 improves clarity and safety in installations. The clear segmentation of cable paths simplifies maintenance and identification of individual cables. The material quality and compliance with environmental standards make this product a reliable solution for professional installations.

Applications include primarily electrical and IT installations in buildings where structured and safe cable routing is required. The partition panel is intended for indoor use, and its heat resistance up to 90 °C also makes it suitable for environments with increased thermal load. The halogen-free design is particularly relevant in rooms with high safety requirements, such as hospitals, schools, or administrative buildings.

Functions and equipment in detail include the single-element structure, enabling separation into two distinct areas. The length of 2000 mm and height of 70 mm match the standard dimensions of BRH ducts. The material quality made of PC-ABS ensures high mechanical stability and heat resistance. The impact resistance IK07 protects against mechanical stress during operation.

Technology explained simply shows that the partition panel is held in place by the C-profile of the duct without additional fastening elements. The halogen-free design reduces fire hazard and smoke emission in case of fire. The material durability ensures long service life and minimizes the need for replacement or maintenance.

Compatibility and accessories refer to use with ducts from the BRH series (65x100, 65x130, 65x170, 65x210D), all of which feature a C-profile. The partition panel is not supplied with additional accessories such as covers or end caps; it is delivered as a single component and integrated into the existing duct system.

Installation and mounting is done tool-free by inserting into the C-profile of the duct. The partition panel automatically fits into the duct depth of 68 mm and ensures stable positioning. Installation is quick and requires no additional tools.

Operational advantages include clear segmentation of cable paths, increased safety due to halogen-free material, and easy installation. The partition panel supports maintenance and cable identification, increasing efficiency during inspections and repairs. The material quality ensures long service life and minimizes maintenance requirements.

The item price shown refers to 2 meters Hager M1839

General
Model	1-fold
Suitable for duct depth	68 mm
Type of fastening	Inserting
Length	2000 mm
Material	Plastic
Material quality	Other
Colour	Grey
Impact strength	IK07
Working temperature	90 °C
Halogen free
Antibacterial treatment

---
