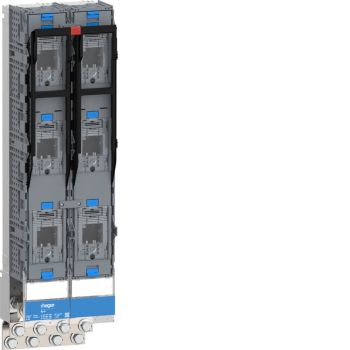

Hager LV8SDR1260STP NH3 double switch disconnector 1260 A 3-pole M12
|
712,37 EUR |
|
|
( 847,72 EUR incl. VAT ) ≈ £596.97 | ≈ $799.99 plus delivery charges: 148,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2033814 |
| Mfg Part No: | LV8SDR1260STP |
| UPC/EAN: | 3250617653015 |
| Weight: | 13.05 kg |
| Type: | LV8SDR1260STP |
Product information for Hager LV8SDR1260STP:
| General | |
| Model | Fuse switch disconnector |
| Rated permanent current Iu | 1260 A |
| Max. rated operation voltage Ue AC | 690 V |
| Conditioned rated short-circuit current Iq | 80 kA |
| Type of electrical connection of main circuit | Screw connection |
| Number of poles | 3 |
| Construction size fuse insert | NH3 |
| Release indication | None |
| Double interrupting | |
| Distance between rail centre, 40 mm | |
| Distance between rail centre, 50 mm | |
| Distance between rail centre, 60 mm | |
| Distance between rail centre, 100 mm | |
| Distance between rail centre, 185 mm | |
Questions & answers
What is the delivery time of Hager LV8SDR1260STP NH3 double switch disconnector 1260 A 3-pole M12?
The article Hager LV8SDR1260STP NH3 double switch disconnector 1260 A 3-pole M12 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager LV8SDR1260STP to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager LV8SDR1260STP NH3 double switch disconnector 1260 A 3-pole M12 always at the best possible price. We can give you a discount of 2% on Hager LV8SDR1260STP NH3 double switch disconnector 1260 A 3-pole M12 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
