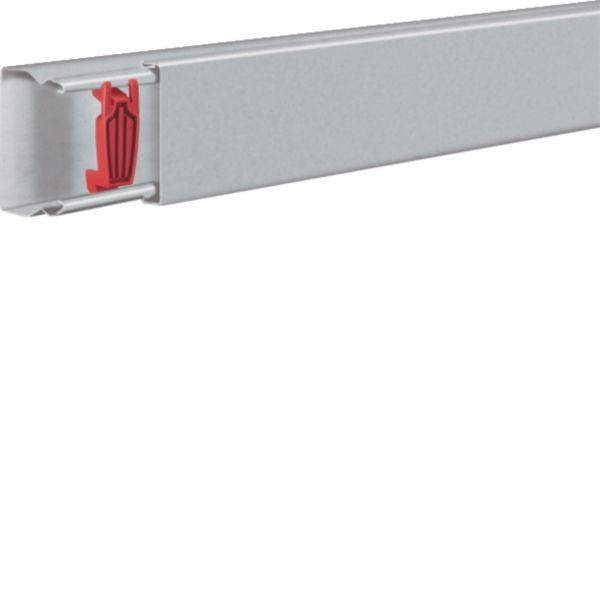

Hager LFS400600VERZ cable routing duct made of steel LFS 40x60 mm galvanized content_copy

The LFS40060 0 VERZ cable routing duct from Hager is a robust installation component made of galvanised steel sheet, specifically designed for use in electrical installations. With a cross-section size of 40 mm height and 60 mm width, it offers a usable cross-section of 1700 mm², sufficient for routing up to seven cables with a diameter of 11 mm at a fill rate of 50 %. The length is 2000 mm, making it suitable for longer installation runs. The surface is strip-galvanised, ensuring high corrosion resistance and long service life. The duct is halogen-free and meets the requirements for functional integrity according to DIN 4102-12, making it suitable for applications in fire protection systems.

Cable routing duct made of steel sheet is designed for indoor use, with protection class IP30 providing protection against solid foreign objects (minimum 2.5 mm) and splashing water to a limited extent. The impact resistance IK08 ensures high mechanical durability, making it suitable for areas with increased mechanical stress. The operating temperature range extends from -5 °C to 90 °C, enabling use in a wide variety of environments. The covers are loose-fitting, allowing for easy installation and maintenance.

Functions and equipment in detail include the integrated cable retention clamp, supplied at a rate of two per metre. This ensures secure fastening of cables within the duct and prevents displacement. Additionally, a duct connector is included in the delivery, enabling clean and stable connections between multiple duct sections. Installation is carried out via floor mounting holes, allowing the duct to be mounted on base surfaces such as concrete or screed.

Technology explained simply shows that the duct is made of steel, whose surface is protected against corrosion by strip galvanisation. The galvanisation provides a durable protective layer that extends the duct’s service life. The IP30 protection class protects against finger contact and splashing water, making it suitable for indoor use. The IK08 impact resistance corresponds to protection against mechanical impacts, such as those occurring during normal handling or minor impacts.

Compatibility and accessories include use with compatible terminal boxes, such as the L5111, which ensure secure and quick cable connections within the duct. These accessories enable flexible and efficient installation, particularly when connecting cables to electrical devices or socket outlets. Combination with other LFS ducts is possible via the integrated duct connectors, ensuring continuous cable routing.

Installation and mounting is performed by securing the duct to the base surface using floor mounting holes. The loose cover design allows for easy installation and maintenance, as the covers can be reattached after cables are inserted. The integrated cable retention clamps ensure that cables remain fixed within the duct and do not shift. Connection of multiple duct sections is achieved using the included duct connectors, which provide a stable and tight connection.

Operational advantages lie in the high mechanical and chemical resistance of the galvanised steel, enabling long service life and low maintenance frequency. The halogen-free design reduces fire hazard and the formation of toxic gases in the event of fire. Functional integrity according to DIN 4102-12 makes the duct suitable for use in fire protection systems. The integrated cable retention clamps and duct connectors reduce installation time and increase installation safety.

The item price shown refers to 2 meters Hager LFS400600VERZ

General
Height	40 mm
Width	60 mm
Length	2000 mm
Useful cross section	1700
Material	Steel
Material quality	Other
Surface protection	Continuously galvanized
Colour	Other
Number of permanent partitions	0
Number of plug-in partitions	0
Type of fastening	Bottom perforation
Cover model	Loose
Degree of protection (IP)	IP30
Impact strength	IK08
Working temperature	90
Halogen free
Suitable for circuit integrity
Transparent
With cable fixing clip
With protection film
With duct connector
Delivery on roll
Pre-stamping
Antibacterial treatment

---
