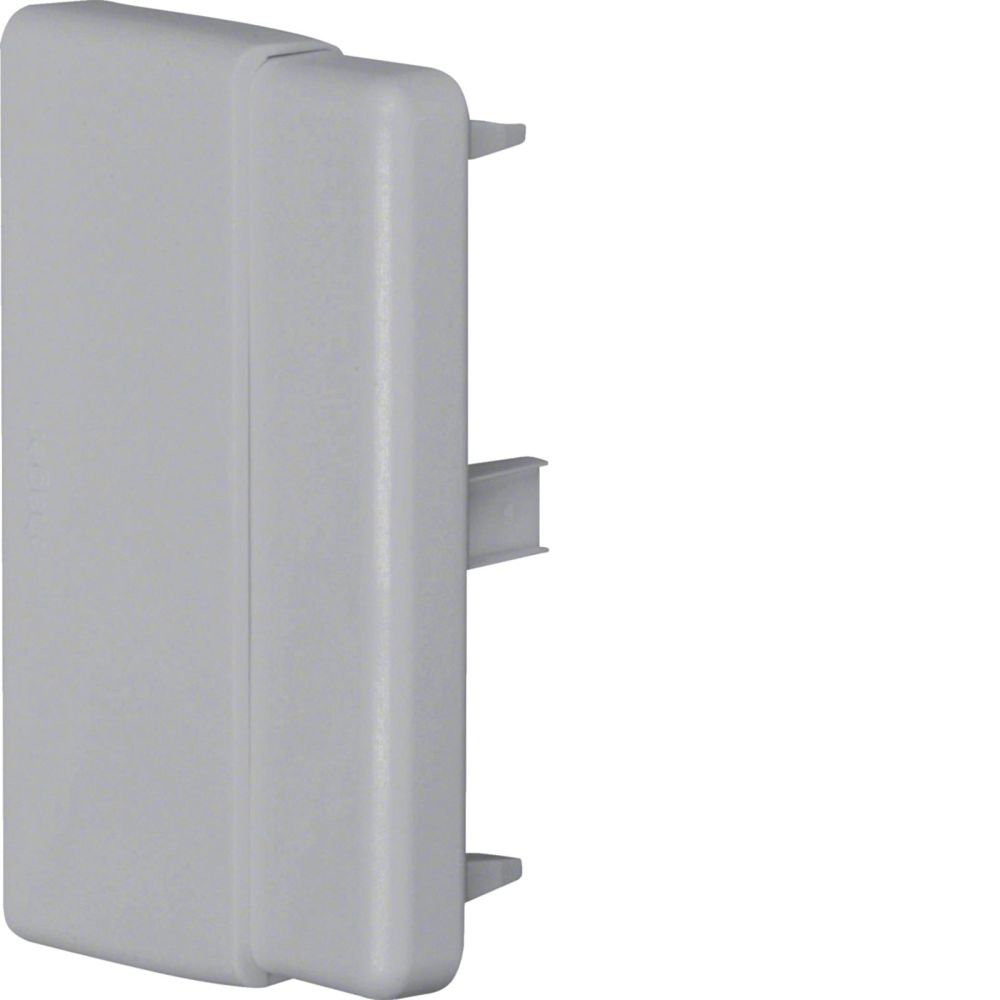

Hager LFF6009067030 adjustable end piece hfr for LF/LFF (40,60)x90 mm stone grey content_copy

This product is an adjustable end cap of the brand Hager, type LFF6009067030, specifically designed for use with cable ducts of the LF and LFF series in dimensions (40, 60) mm height and 90 mm width. It serves as a finishing cover at the end of a cable duct to ensure a clean and closed appearance and to protect cables from external influences. The end cap is finished in stone grey (RAL 7030) and made of acrylonitrile butadiene styrene (ABS), a robust plastic known for its mechanical strength and weather resistance.

Applications

The end cap is intended for use in indoor environments where proper cable management and an aesthetically pleasing cover for cable ducts are required. It is used in electrical installations, IT environments, and building automation, where cable ducts are employed for structuring and protecting wiring. The adjustable design allows adaptation to different end positions of cable ducts, achieving a precise fit.

Functions and Features in Detail

The end cap features a snap-fit mounting method, enabling quick and secure installation without additional tools. The snap connection ensures a stable bond with the cable duct, while the edge sealing provides a secure and tight closure. The surface is untreated, allowing for easy processing and installation without additional pre-treatment. The product is halogen-free, meaning that no toxic halogen compounds are released in case of heating or burning, which is particularly advantageous in enclosed spaces.

Technology Explained Simply

The ABS material quality offers high impact resistance, certified with IK07 according to DIN EN 62262. This means the end cap is resistant to mechanical impacts such as shocks or vibrations up to a certain energy level. The operating temperature range is between -5 °C and +60 °C, allowing use under normal indoor conditions. The stone grey colour (RAL 7030) is a neutral tone that typically integrates well into technical and architectural environments.

Compatibility and Accessories

The end cap is specifically designed for cable ducts LF 40 x 90 and LF 60 x 90 mm. It is adjustable, allowing use with ducts of both 40 mm and 60 mm height. Compatibility is ensured by the precise shape and snap connection. It is not suitable for applications requiring fire performance retention according to DIN 4102-12, as this is not provided in the product.

Installation and Mounting

Mounting is achieved by simply snapping the end cap onto the end of the cable duct. The snap connection ensures a secure fit without requiring additional fastening materials such as screws or adhesives. The adjustable design allows adaptation to the exact end position of the duct, ensuring a clean and professional finish. The surface is untreated, so no additional pre-treatment is required.

Operational Advantages

The end cap offers easy and quick installation, high mechanical stability due to IK07 certification, and a secure closure function via edge sealing. The halogen-free design increases safety during use, especially in enclosed spaces. The adjustable construction allows flexible adaptation to different duct heights, facilitating use in various installation scenarios. The stone grey colour (RAL 7030) ensures unobtrusive integration into the environment.

The product complies with RoHS and REACh-SVHC standards, confirming environmental compatibility and the use of safe materials. It is not intended for use in areas requiring fire performance retention according to DIN 4102-12.

General
Height	60 mm
Width	90 mm
Model	Left/right
Material	Plastic
Material quality	Other
Surface protection	Untreated
Colour	Grey
RAL-number	7030
Type of fastening	Snap on
Impact strength	IK07
Working temperature	60
Halogen free
Suitable for circuit integrity
With protection film
Antibacterial treatment

---
