Hager LF4006007030 cable routing duct PVC LF 40x60 mm stone grey
|
22,99 EUR |
|||||||||||
|
( 27,36 EUR incl. VAT ) ≈ £19.22 | ≈ $25.40 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| Sales unit: 2 meters | |||||||||||
| In Stock: >10 meters | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 369869 | ||||||||||
| Mfg Part No: | LF4006007030 | ||||||||||
| UPC/EAN: | 4012740138086 | ||||||||||
| Weight: | 0.2585 kg | ||||||||||
| Type: | LF40060 0 7030 | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Service ducts LF / FB / LFS others from HagerFurther products in category Service ducts LF / FB / LFS others
All products of Hager
Product information for Hager LF4006007030:

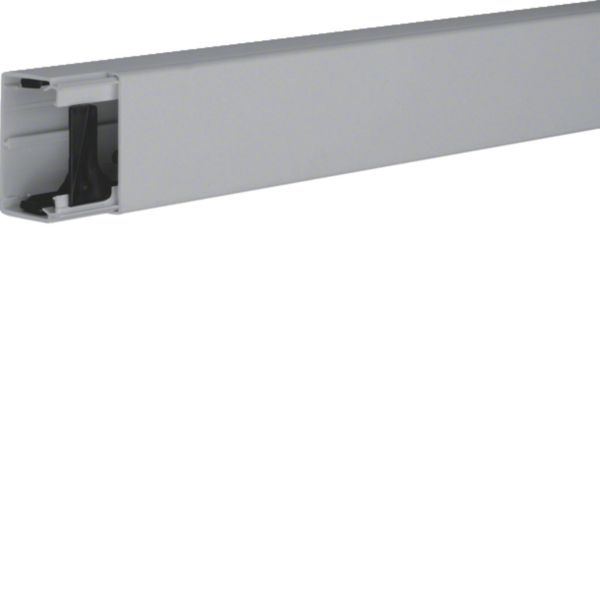

The LF4006007030 cable routing duct from Hager is an installation duct made of polyvinyl chloride (PVC) with dimensions of 40 mm height, 57 mm width, and a length of 2000 mm. It is finished in Stone Grey (RAL 7030) and is designed for the structured and secure installation of electrical cables in indoor environments. The duct is intended for use in electrical installations where reliable and durable cable routing is required. It features a usable cross-section of 1500 mm², enabling a capacity for up to seven cables with a diameter of 11 mm at a 50 % fill rate. The surface is untreated, and the duct is not transparent.
Cable routing duct made of PVC offers a robust construction designed for long service life in professional applications. The protection rating IP30 ensures protection against solid foreign objects larger than 2.5 mm and against splashing water, but not against dust ingress or water jets. The impact resistance IK07 ensures mechanical durability against minor mechanical stresses, such as those occurring during installation or operation. The operating temperature range is between -5 °C and 60 °C, suitable for typical indoor conditions.
Functions and equipment in detail include a loose cover construction, enabling easy installation and maintenance. The duct is equipped with pre-mounted couplings that ensure a secure connection between individual duct sections. The delivery includes cable retention clips, with two clips per meter provided to secure cables within the duct and ensure orderly routing. No fixed partition panels are integrated, but a plug-in partition panel is available, allowing flexible division of the duct cross-section. The duct is not supplied on a reel, but as a single section with a length of 2000 mm.
Technology explained simply shows that the PVC material offers high dimensional stability and weather resistance, suitable for indoor use. The pre-mounted couplings simplify connecting multiple duct sections without requiring additional installation tools. The loose cover construction allows easy access to installed cables, which is advantageous during maintenance or modifications. The cable retention clips ensure that cables remain fixed within the duct and do not shift, enhancing the safety and orderliness of the installation.
Compatibility and accessories refer to use with other components of the Hager system. The pre-mounted couplings allow direct connection to other duct sections of the same type. The plug-in partition panel can be used as needed to divide the duct into two separate compartments, which is useful for separating different cable functions.
Installation and mounting is carried out via floor mounting holes, enabling secure fastening to substrates such as concrete, plasterboard, or wood. The loose cover construction allows for easy installation, with covers placed and secured after cable installation. The cable retention clips are inserted into designated openings during installation to fix the cables. Connecting multiple duct sections is done via the pre-mounted couplings, ensuring a tight and stable connection.
Operational advantages include easy handling, high mechanical stability, and long service life. The pre-mounted couplings and integrated cable retention clips reduce installation time and increase installation accuracy. The loose cover construction allows flexible use, as the duct can be opened and resealed even after installation. The Stone Grey (RAL 7030) colour blends well with typical indoor designs, allowing the duct to be discreetly integrated.
The duct is not halogen-free and is not suitable for use in areas requiring functional integrity according to DIN 4102-12. It is not treated with antibacterial agents. The product is manufactured in Germany and complies with REACh-SVHC and RoHS requirements.
The item price shown refers to 2 meters Hager LF4006007030
Cable routing duct made of PVC offers a robust construction designed for long service life in professional applications. The protection rating IP30 ensures protection against solid foreign objects larger than 2.5 mm and against splashing water, but not against dust ingress or water jets. The impact resistance IK07 ensures mechanical durability against minor mechanical stresses, such as those occurring during installation or operation. The operating temperature range is between -5 °C and 60 °C, suitable for typical indoor conditions.
Functions and equipment in detail include a loose cover construction, enabling easy installation and maintenance. The duct is equipped with pre-mounted couplings that ensure a secure connection between individual duct sections. The delivery includes cable retention clips, with two clips per meter provided to secure cables within the duct and ensure orderly routing. No fixed partition panels are integrated, but a plug-in partition panel is available, allowing flexible division of the duct cross-section. The duct is not supplied on a reel, but as a single section with a length of 2000 mm.
Technology explained simply shows that the PVC material offers high dimensional stability and weather resistance, suitable for indoor use. The pre-mounted couplings simplify connecting multiple duct sections without requiring additional installation tools. The loose cover construction allows easy access to installed cables, which is advantageous during maintenance or modifications. The cable retention clips ensure that cables remain fixed within the duct and do not shift, enhancing the safety and orderliness of the installation.
Compatibility and accessories refer to use with other components of the Hager system. The pre-mounted couplings allow direct connection to other duct sections of the same type. The plug-in partition panel can be used as needed to divide the duct into two separate compartments, which is useful for separating different cable functions.
Installation and mounting is carried out via floor mounting holes, enabling secure fastening to substrates such as concrete, plasterboard, or wood. The loose cover construction allows for easy installation, with covers placed and secured after cable installation. The cable retention clips are inserted into designated openings during installation to fix the cables. Connecting multiple duct sections is done via the pre-mounted couplings, ensuring a tight and stable connection.
Operational advantages include easy handling, high mechanical stability, and long service life. The pre-mounted couplings and integrated cable retention clips reduce installation time and increase installation accuracy. The loose cover construction allows flexible use, as the duct can be opened and resealed even after installation. The Stone Grey (RAL 7030) colour blends well with typical indoor designs, allowing the duct to be discreetly integrated.
The duct is not halogen-free and is not suitable for use in areas requiring functional integrity according to DIN 4102-12. It is not treated with antibacterial agents. The product is manufactured in Germany and complies with REACh-SVHC and RoHS requirements.
The item price shown refers to 2 meters Hager LF4006007030
| General | |
| Height | 40 mm |
| Width | 57 mm |
| Length | 2000 mm |
| Useful cross section | 1500 |
| Material | Plastic |
| Material quality | Polyvinyl chloride (PVC) |
| Surface protection | Untreated |
| Colour | Grey |
| RAL-number | 7030 |
| Number of permanent partitions | 0 |
| Number of plug-in partitions | 1 |
| Type of fastening | Bottom perforation |
| Cover model | Loose |
| Degree of protection (IP) | IP30 |
| Impact strength | IK07 |
| Working temperature | 60 |
| Halogen free | |
| Suitable for circuit integrity | |
| Transparent | |
| With cable fixing clip | |
| With protection film | |
| With duct connector | |
| Delivery on roll | |
| Pre-stamping | |
| Antibacterial treatment | |
Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Questions & answers
What is the delivery time of Hager LF4006007030 cable routing duct PVC LF 40x60 mm stone grey?
The article Hager LF4006007030 cable routing duct PVC LF 40x60 mm stone grey is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager LF4006007030 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager LF4006007030 cable routing duct PVC LF 40x60 mm stone grey always at the best possible price. We can give you a discount of 2% on Hager LF4006007030 cable routing duct PVC LF 40x60 mm stone grey if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 meters of Hager LF4006007030 cable routing duct PVC LF 40x60 mm stone grey we can offer you a price of 20,40 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Hager LF4006007030 cable routing duct PVC LF 40x60 mm stone grey is offered by us in a sales unit of 2 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
