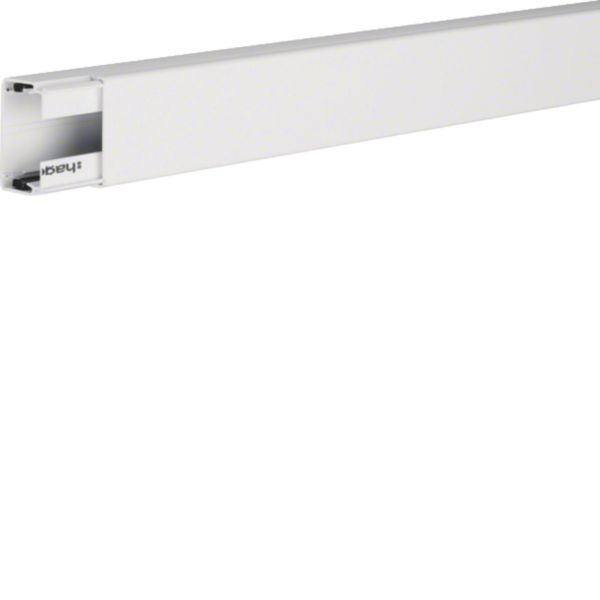

Hager LF3004509016 cable routing duct made of PVC LF 30x45 mm traffic white content_copy

The cable routing duct LF3004509016 from Hager is a PVC duct with dimensions of 30 mm height and 45 mm width, and a length of 2000 mm. It is designed for structured and secure routing of electrical cables in indoor environments and is finished in traffic white (RAL 9016). The duct is made of polyvinyl chloride (PVC), with an untreated surface and no antibacterial treatment. The colour is not transparent and remains stable under normal use, without fading. The duct is not halogen-free and is not suitable for functional integrity according to DIN 4102-12. The operating temperature range is between -5 °C and 60 °C, making it suitable for typical indoor conditions.

Cable routing duct made of PVC offers a usable cross-section of 1010 mm², corresponding to a maximum capacity of five cables with a diameter of 11 mm at 50 % fill. The capacity is therefore sufficient for small to medium cable bundles in electrical installations. The duct features a loose cover lid, enabling easy installation and maintenance. The impact resistance is IK07, providing a certain level of mechanical protection against shocks and vibrations. The protection class IP30 protects against entry of solid foreign objects with a diameter of at least 2.5 mm, but not against water or fine dust particles.

Applications include professional electrical installations, particularly in offices, apartments, commercial and industrial facilities, where orderly and visible cable routing is required. The duct is suitable for laying electrical cables that are not to be concealed, such as in open installations or during renovation work. The traffic white colour blends well into bright indoor environments and ensures a clean visual appearance.

Functions and equipment in detail include pre-mounted duct connectors, enabling secure and quick connection of multiple duct sections. There are no fixed or plug-in partition walls, so the duct functions as a single chamber. The surface is not coated, which facilitates processing and installation. The duct is not supplied on a roll, but as a single section with a length of 2000 mm. A protective film is not included.

Technology explained simply shows that the duct is made of a robust yet flexible plastic (PVC), suitable for indoor applications. The IP30 protection class means it is protected against larger foreign objects such as dust or fibres, but not suitable for damp or wet environments. The IK07 impact resistance protects against minor mechanical stresses, such as those occurring during installation or daily operation. The temperature resistance from -5 °C to 60 °C covers most indoor conditions.

Compatibility and accessories include use with matching terminal boxes, such as the L5111, which are suitable for securing and connecting cables. These accessories support professional installation and ensure a secure connection.

Installation and mounting is carried out via the designated floor mounting holes, with the loose cover lid enabling easy installation and later maintenance. The pre-mounted duct connectors facilitate the connection of multiple sections.

Operational advantages include easy handling, clear cable structuring, and visual control of the installation. The duct ensures orderly and secure cable routing, facilitating maintenance and expansion. The use of PVC ensures long service life and resistance to mechanical stresses in indoor environments. The traffic white colour remains stable and fits well into modern indoor spaces.

The duct is RoHS-compliant and free of REACh SVHC, confirming environmental compatibility and compliance with current standards. The technical data are summarised in the product description, with exact values such as dimensions, protection class, material, and capacity taken from the manufacturer’s datasheet. The specifications correspond to the stated properties and are suitable for professional use.

The item price shown refers to 2 meters Hager LF3004509016

General
Height	30 mm
Width	45 mm
Length	2000 mm
Useful cross section	1010
Material	Plastic
Material quality	Polyvinyl chloride (PVC)
Surface protection	Untreated
Colour	White
RAL-number	9016
Number of permanent partitions	0
Number of plug-in partitions	0
Type of fastening	Bottom perforation
Cover model	Loose
Degree of protection (IP)	IP30
Impact strength	IK07
Working temperature	60
Halogen free
Suitable for circuit integrity
Transparent
With cable fixing clip
With protection film
With duct connector
Delivery on roll
Pre-stamping
Antibacterial treatment

---
