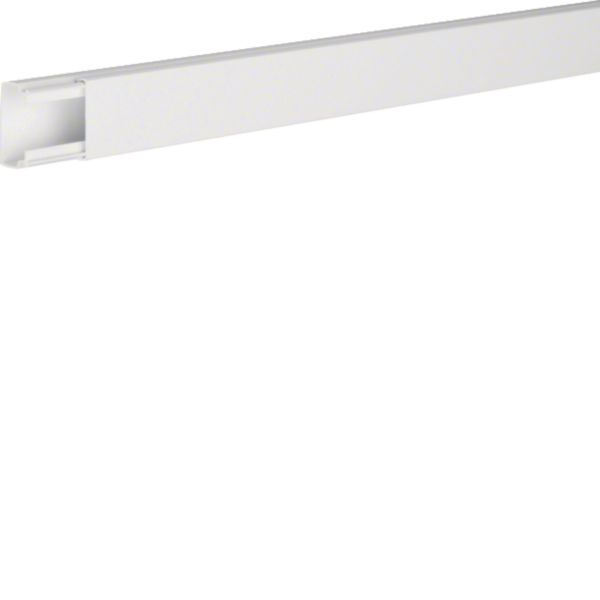

Hager LF2003509016 cable routing duct made of PVC LF 20x35 mm traffic white content_copy

The LF2003509016 cable routing channel from Hager is a PVC cable duct with dimensions of 20 mm height and 33 mm width, and a length of 2000 mm. It is finished in traffic white (RAL 9016) and is designed for the orderly and safe installation of cables in indoor environments, particularly in residential and office areas. The channel offers a usable internal cross-section of 440 mm² and is suitable for small to medium cable installations, allowing up to two cables with a diameter of 11 mm to be installed at 50% fill.

Applications
This channel is designed for indoor use where orderly and aesthetically pleasing cable routing is required. It is suitable for installation in apartments, offices, and other commercial spaces, where cables are routed along walls, under tables, or in other visible areas. The robust construction from polyvinyl chloride (PVC) ensures high resistance to mechanical stress and many chemical influences, supporting a long service life.

Functions and Features in Detail
The channel features a loose cover lid that is pre-mounted. Installation is carried out via bottom mounting holes. The channel is not halogen-free and is not suitable for fire-resistance performance according to DIN 4102-12. The maximum operating temperature is 60 °C, with a minimum temperature of -5 °C.

Technical Explanation
The PVC material provides good mechanical stability and weather resistance. The impact resistance is classified as IK07, indicating moderate resistance to mechanical impacts such as shocks or vibrations. The protection rating IP30 protects against solid foreign objects with a diameter of at least 2.5 mm, but does not protect against water. This makes the channel suitable for indoor use, but not for damp or wet environments. The traffic white colour (RAL 9016) is a standard white commonly used in many indoor installations.

Compatibility and Accessories
Various accessories are available for this channel, enabling flexible installation. These include the end cap LFF2003569016, the flat corner LFF2003559016, the inside corner LFF2003549016, and the outside corner LFF2003539016 — all in the same dimensions of 20x33 mm and in traffic white. These components allow for neat termination and branching at walls, corners, and ends. The L5111 clamp box can be used for securing or connecting cables.

Installation and Mounting
Mounting is performed using the pre-drilled bottom holes, enabling secure attachment to walls or sub-surfaces. The loose cover lid can be easily placed and secured after cable installation. Connecting multiple channel sections is done without special couplings, simply by joining the ends together.

Operational Advantages
The channel provides clear cable organization, simplifying maintenance and inspection of the installation. The robust PVC construction ensures long service life and low maintenance. The use of standardized accessories allows for flexible and neat installation design. The traffic white colour blends well with most interior designs, keeping the installation visually unobtrusive.

Standards and Compliance
The channel is RoHS-compliant and free of REACh-SVHC substances, ensuring environmental compatibility and safety during use. It complies with applicable standards for electrical installations, but is not suitable for fire-resistance performance according to DIN 4102-12.

The item price shown refers to 2 meters Hager LF2003509016

General
Height	20 mm
Width	33 mm
Length	2000 mm
Useful cross section	440
Material	Plastic
Material quality	Polyvinyl chloride (PVC)
Surface protection	Untreated
Colour	White
RAL-number	9016
Number of permanent partitions	0
Number of plug-in partitions	0
Type of fastening	Bottom perforation
Cover model	Loose
Degree of protection (IP)	IP30
Impact strength	IK07
Working temperature	60
Halogen free
Suitable for circuit integrity
Transparent
With cable fixing clip
With protection film
With duct connector
Delivery on roll
Pre-stamping
Antibacterial treatment

---
