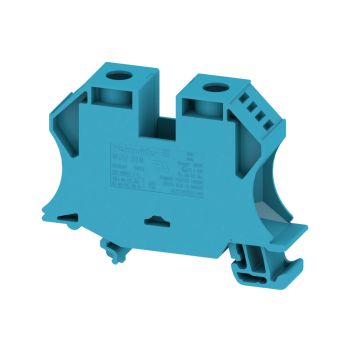

Hager KR350N passage terminal-Neutral 35 mm² 500 V/125 A screw technology
|
7,13 EUR 7,43 EUR |
|||||||||||
|
( 8,48 EUR incl. VAT ) ≈ £5.97 | ≈ $8.01 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 893802 | ||||||||||
| Mfg Part No: | KR350N | ||||||||||
| UPC/EAN: | 3250610133576 | ||||||||||
| Weight: | 0.0482 kg | ||||||||||
| Type: | KR350N | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager KR350N:
| General | |
| Connectable conductor cross section fine-strand without cable end sleeve | 35 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 35 mm² |
| Connectable conductor cross section solid-core | 16 mm² |
| Connectable conductor cross section multi-wired | 50 mm² |
| Rated current In | 125 A |
| Rated voltage | 500 V |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Mounting method | DIN rail (top hat rail)/G-rail TH35/G32 |
| Material insulation body | Thermoplastic |
| Operation temperature | 130 °C |
| Colour | Blue |
| Depth | 62.5 mm |
| Height | 60 mm |
| Suitable for conductor material | Copper |
| Width | 16 mm |
| Explosion-tested version 'Ex e' | |
| Closing plate required | |
| Internally connected stages | |
Questions & answers
What is the delivery time of Hager KR350N passage terminal-Neutral 35 mm² 500 V/125 A screw technology?
The article Hager KR350N passage terminal-Neutral 35 mm² 500 V/125 A screw technology is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager KR350N to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager KR350N passage terminal-Neutral 35 mm² 500 V/125 A screw technology always at the best possible price. We can give you a discount of 2% on Hager KR350N passage terminal-Neutral 35 mm² 500 V/125 A screw technology if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of Hager KR350N passage terminal-Neutral 35 mm² 500 V/125 A screw technology we can offer you a price of 6,70 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
