Hager KC325 connection bridge 3P 125 mm pin/phase

Your rating:
Average rating
product review for Hager KC325 connection bridge 3P 125 mm pin/phase
( 4.4 / 5 ) 27 ratings

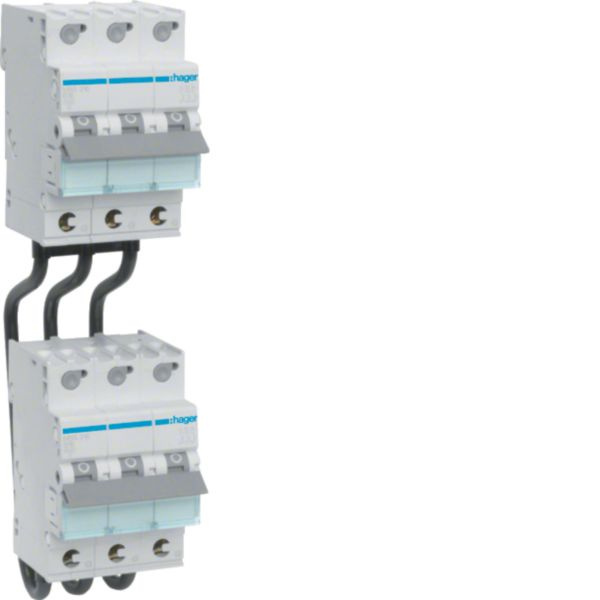

Hager KC325
This image may differ from the desired article.
Hager KC325Hager KC325
11,49 EUR
( 13,67 EUR incl. VAT )
≈ £9.62  |  ≈ $12.63
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces
1x Hager KC325 connection bridge 3P 125 mm pin/phase
Datasheet:file_download Download
Lieske Part No.:499646
Mfg Part No: KC325
UPC/EAN: 3250613730079
Weight:0.0732 kg
Type:KC325
Graduated prices net
From piecesPrice per pieces
1510,80 EUR
3010,11 EUR
709,42 EUR
1008,73 EUR

Product information for Hager KC325:

The KC325 connection bridge from Hager is a 3-pole component for electrical installation, specifically designed for safe and reliable connection of conductors in meter enclosures or distributors. With a length of 125 mm and a pin connection for the phase, it enables parallel connection of conductors in the power supply area. The bridge is designed for use in electrical installations where a stable and durable connection between multiple conductors is required, for example when connecting meter connections or distribution elements.

Connection bridge
The KC325 serves as an electrical connecting element between multiple conductors in the same circuit. It is designed for the phase (L), meaning it is typically used in the area of wiring connections for supply voltage. The 3-pole design allows simultaneous connection of three conductors, making installation in distributors or meter enclosures more efficient and structured. The bridge is equipped with a pin connection, ensuring a firm and secure connection to the connected conductors.

Functions and equipment in detail
The connection bridge is rated for a nominal current of 63 A, making it suitable for use in medium to high load ranges. The power dissipation is 0.60 W at nominal current, indicating low self-loss and ensuring efficient energy transfer. The permissible conductor cross-section is 10 mm², enabling use with medium-sized cables. The cable length is 0.12 m, matching the bridge length and allowing direct connection within the distributor or meter enclosure.

Technology explained simply
The bridge is made of a conductive material with low electrical resistance to minimize voltage drops during current transmission. The pin connection ensures a mechanically stable and electrically reliable connection. The 3-pole construction allows simultaneous connection of three conductors, simplifying installation in complex distribution systems. The bridge is intended for use in enclosed distributors or meter enclosures where a durable and secure connection is required.

Compatibility and accessories
The KC325 connection bridge is specifically designed for use in meter enclosures and distributors. It is compatible with standard installation components that support a pin connection for the phase. The bridge can be used in combination with other components of the Hager system, particularly in installations requiring structured and secure power distribution. It is typically used in electrical distribution systems where parallel connection of conductors is necessary.

Installation and mounting
Mounting is done by inserting the bridge into the designated connection points in the distributor or meter enclosure. Conductors are connected to the pin connections, ensuring compliance with the 10 mm² cross-section specification. The bridge is designed for a secure connection, guaranteed by the mechanical design of the pin connection. Installation typically requires no additional tools, although using an appropriate tool for secure conductor fastening is recommended.

Advantages in operation
The KC325 connection bridge provides a reliable and durable electrical connection, enhancing the safety and stability of the installation. The 3-pole design enables efficient connection of multiple conductors, making installation in distributors or meter enclosures more structured and clear. The low power dissipation of 0.60 W at nominal current ensures efficient energy transfer. The bridge is RoHS-compliant, ensuring environmental compatibility and compliance with European directives for electrical equipment.

RoHS-compliant
The connection bridge meets the requirements of the RoHS directive, which prohibits the use of certain hazardous substances in electrical and electronic equipment. This ensures environmentally compatible manufacturing and disposal of the product.

Nominal current
The nominal current of 63 A defines the maximum current the bridge can transmit continuously without overheating or performance impairment. This value is crucial for selecting the bridge based on the load in the respective circuit.

Conductor cross-section
The permissible conductor cross-section of 10 mm² determines the maximum size of the connected conductors. This ensures a safe and reliable connection that meets electrical installation requirements.

Pin connection
The pin connection enables a mechanically stable and electrically reliable connection between the bridge and the connected conductors. It is specifically designed for use in distributors and meter enclosures.

Phase
The bridge is designed for the phase (L), meaning it is used in the supply voltage area. This is essential for correct integration into electrical installations.

Length
The length of 125 mm matches the cable length and allows direct connection within the distributor or meter enclosure. This dimension is suitable for use in standard installation systems.

Connection bridge
The bridge serves as an electrical connection between multiple conductors in the same circuit. It is intended for use in distributors and meter enclosures where a stable and secure connection is required.

3-pole
The 3-pole design allows simultaneous connection of three conductors, making installation in complex distribution systems more efficient.

Pin connection
The pin connection ensures a firm and secure connection to the connected conductors. It is specifically designed for use in electrical distributors.

Phase
The bridge is designed for the phase (L), meaning it is used in the supply voltage area. This is essential for correct integration into electrical installations.

Length
The length of 125 mm matches the cable length and allows direct connection within the distributor or meter enclosure. This dimension is suitable for use in standard installation systems.

RoHS-compliant
The connection bridge meets the requirements of the RoHS directive, which prohibits the use of certain hazardous substances in electrical and electronic equipment. This ensures environmentally compatible manufacturing and disposal of the product.

The bridge is intended for use in enclosed distributors or meter enclosures where a durable and secure connection is required. Mounting is done by inserting the bridge into the designated connection points in the distributor or meter enclosure. Conductors are connected to the pin connections, ensuring compliance with the 10 mm² cross-section specification. The bridge is designed for a secure connection, guaranteed by the mechanical design of the pin connection. Installation typically requires no additional tools, although using an appropriate tool for secure conductor fastening is recommended. The KC325 connection bridge provides a reliable and durable electrical connection, enhancing the safety and stability of the installation. The 3-pole design enables efficient connection of multiple conductors, making installation in distributors or meter enclosures more structured and clear. The low power dissipation of 0.60 W at nominal current ensures efficient energy transfer. The bridge is RoHS-compliant, ensuring environmental compatibility and compliance with European directives for electrical equipment.

General
Nominal cross section10 mm²
Number of poles3
Length125 mm


Product data sheet
Datasheet for Hager KC325, EAN: 3250613730079

Questions & answers

What is the delivery time of Hager KC325 connection bridge 3P 125 mm pin/phase?

The article Hager KC325 connection bridge 3P 125 mm pin/phase is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager KC325 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Hager KC325 connection bridge 3P 125 mm pin/phase always at the best possible price. We can give you a discount of 2% on Hager KC325 connection bridge 3P 125 mm pin/phase if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Hager KC325 connection bridge 3P 125 mm pin/phase we can offer you a price of 10,80 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
