Hager KC125 connection bridge 1P 125 mm pin/phase

Your rating:
Average rating
product review for Hager KC125 connection bridge 1P 125 mm pin/phase
( 4.7 / 5 ) 9 ratings

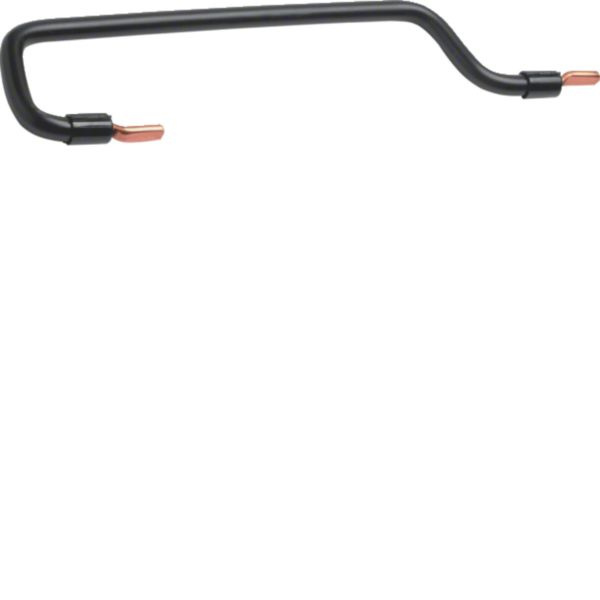

Hager KC125
This image may differ from the desired article.
Hager KC125Hager KC125
4,75 EUR
( 5,65 EUR incl. VAT )
≈ £3.98  |  ≈ $5.22
plus delivery charges: 55,00 €
in stockinfo_outline
1x Hager KC125 connection bridge 1P 125 mm pin/phase
Datasheet:file_download Download
Lieske Part No.:754145
Mfg Part No: KC125
UPC/EAN: 3250613730017
Weight:0.026 kg
Type:KC125
Graduated prices net
From piecesPrice per pieces
504,54 EUR
1004,32 EUR
2504,11 EUR
5003,90 EUR

Product information for Hager KC125:

The KC125 connection bridge from Hager is a 1-pole component designed for use in electrical distributions, particularly in meter enclosures and distributors. It provides a safe and reliable connection for conductors in the phase area, with the pin connection enabling a direct and stable electrical connection. The bridge has a length of 125 mm and is designed for a nominal cross-section of 10 mm², making it suitable for standard installations in electrical engineering.

Connection bridge
The KC125 is specifically designed for connecting conductors in the phase area. As a 1-pole bridge, it enables the parallel connection of multiple conductors, ensuring even current distribution. The pin connection provides a mechanically stable and electrically conductive connection that remains reliable even under load. The length of 125 mm offers sufficient space for installation in standard distributors and meter enclosures.

Functions and equipment in detail
The bridge is rated for a nominal current of 63 A, making it suitable for typical low-voltage applications in residential and building electrical systems. The power dissipation is 0.20 W at nominal current, indicating low thermal load and high efficiency. The permissible conductor cross-section is 10 mm², allowing the bridge to be used with standard cables in electrical installations. The cable length is 0.12 m, matching the bridge length and enabling direct connection at the component.

Technology explained simply
The connection bridge functions as a mechanical and electrical transition between two or more conductors. The pin connection ensures that conductors can be securely connected without additional connection elements. The design meets requirements for electrical safety and reliability. The bridge is RoHS-compliant, meaning it does not contain hazardous materials prohibited in the electronics industry.

Compatibility and accessories
The KC125 is designed for use in meter enclosures and distributors, particularly in systems where a secure phase connection is required. It is compatible with standard cables with a cross-section of 10 mm² and can be installed in distributors with sufficient space. The bridge is typically used together with other components such as fuses, switches, or meter boxes to form a complete distribution unit.

Installation and mounting
Mounting is done by directly connecting the conductors to the pin connection of the bridge. The bridge is installed in the distributor or meter enclosure, with its 125 mm length allowing for easy placement. The connection is mechanically stable and does not require additional fastening elements. Installation must follow applicable electrical regulations, particularly VDE and DIN standards.

Advantages in operation
The KC125 connection bridge provides a reliable and secure connection in the phase area. The low power dissipation of 0.20 W at nominal current reduces thermal stress and increases the component's service life. RoHS compliance ensures environmentally friendly manufacturing and disposal. The bridge is easy to install and requires no additional tools or connection elements, reducing installation time and minimizing error potential.

General
Nominal cross section10 mm²
Number of poles1
Length125 mm


Product data sheet
Datasheet for Hager KC125, EAN: 3250613730017

Questions & answers

What is the delivery time of Hager KC125 connection bridge 1P 125 mm pin/phase?

The article Hager KC125 connection bridge 1P 125 mm pin/phase is currently in stock

According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager KC125 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Hager KC125 connection bridge 1P 125 mm pin/phase always at the best possible price. We can give you a discount of 2% on Hager KC125 connection bridge 1P 125 mm pin/phase if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of Hager KC125 connection bridge 1P 125 mm pin/phase we can offer you a price of 4,54 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
