Hager K96Q S-rail terminal 1.5–16 mm² for Cu 12–40x5 mm

Your rating:
Average rating
product review for Hager K96Q S-rail terminal 1.5–16 mm² for Cu 12–40x5 mm
( 4.5 / 5 ) 12 ratings

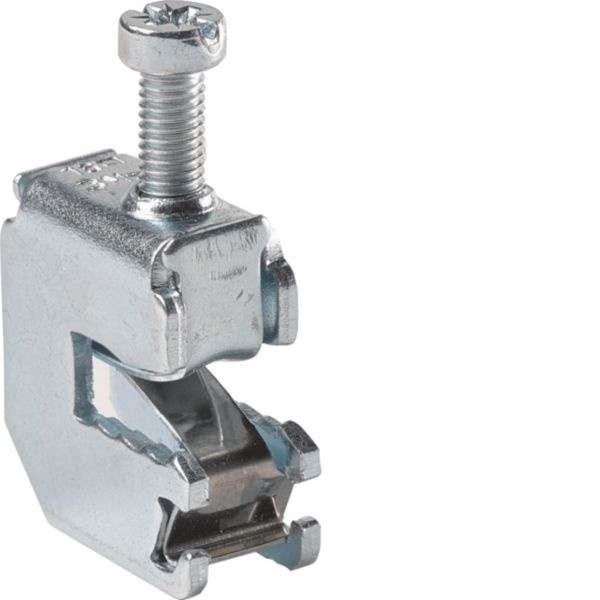

Hager K96Q
This image may differ from the desired article.
Hager K96QHager K96Q
2,38 EUR
( 2,83 EUR incl. VAT )
≈ £1.99  |  ≈ $2.62
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >100 pieces
1x Hager K96Q S-rail terminal 1.5–16 mm² for Cu 12–40x5 mm
Datasheet:file_download Download
Lieske Part No.:435214
Mfg Part No: K96Q
UPC/EAN: 4010330710827
Weight:0.02 kg
Type:K96Q
Graduated prices net
From piecesPrice per pieces
502,26 EUR
1002,13 EUR
2502,01 EUR
5001,88 EUR

Product information for Hager K96Q:

The busbar terminal K96Q from Hager is a component for the safe and reliable connection of copper conductors to busbars in distribution systems. It serves as an electrical transition point between individual conductors and the busbar, ensuring efficient power distribution. The model is specifically designed for use in installation systems where a stable and durable electrical connection is required.

Applications

The terminal is intended for use in distribution systems, particularly in electrical distribution enclosures, where it provides connection between copper conductors and busbars. It is suitable for applications requiring high contact quality and mechanical stability, for example in industrial or commercial electrical installations. The terminal is used in systems that must ensure continuous power supply.

Functions and Features in Detail

The busbar terminal K96Q enables the connection of copper conductors with a cross-section of 1.0 to 16 mm², regardless of whether the conductor is flexible or rigid. The terminal is designed for busbars with a width of 12 to 40 mm and a thickness of 5 mm. The high contact quality ensures a reliable electrical connection that remains stable under mechanical stress and environmental influences. Installation is carried out via screw connection, with a nominal torque of 3 to 3 Nm specified to ensure an optimal connection.

Technology Explained Simply

The terminal functions as an electrical transition between the connected copper conductor and the busbar. The rated current is 180 A, meaning the terminal is designed for loads up to this value. The busbar thickness is 5 mm, which is a standard dimension in distribution systems. The terminal is halogen-free and RoHS-compliant, ensuring environmental compatibility and compliance with the European Restriction of Hazardous Substances Directive. The design ensures easy installation and a durable electrical connection.

Compatibility and Accessories

The terminal is compatible with busbars of dimensions 12 to 40 mm width and 5 mm thickness. It is specifically designed for copper conductors, allowing both flexible and rigid conductors with a cross-section of 1.0 to 16 mm² to be connected. The terminal is part of a power distribution system and is used in conjunction with distributors, meter enclosures, or other installation systems.

Installation and Mounting

Mounting is performed via screw connection to the busbar. The specified torque is 3 to 3 Nm to ensure a secure and durable connection. The terminal is designed to allow simple and quick installation without requiring additional tools or accessories. The depth of the terminal is 25.50 mm, which should be considered during planning of the distribution system.

Operational Advantages

The terminal provides high contact quality, ensuring reliable power transmission. Mechanical stability and resistance to environmental influences ensure long service life and minimize maintenance requirements. Easy installation reduces installation time and lowers the risk of errors. Compliance with RoHS and halogen-free construction meet requirements for environmentally friendly products and are suitable for use in various industries.

General
Busbar thickness5


Product data sheet
Datasheet for Hager K96Q, EAN: 4010330710827

Questions & answers

What is the delivery time of Hager K96Q S-rail terminal 1.5–16 mm² for Cu 12–40x5 mm?

The article Hager K96Q S-rail terminal 1.5–16 mm² for Cu 12–40x5 mm is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager K96Q to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Hager K96Q S-rail terminal 1.5–16 mm² for Cu 12–40x5 mm always at the best possible price. We can give you a discount of 2% on Hager K96Q S-rail terminal 1.5–16 mm² for Cu 12–40x5 mm if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of Hager K96Q S-rail terminal 1.5–16 mm² for Cu 12–40x5 mm we can offer you a price of 2,26 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
