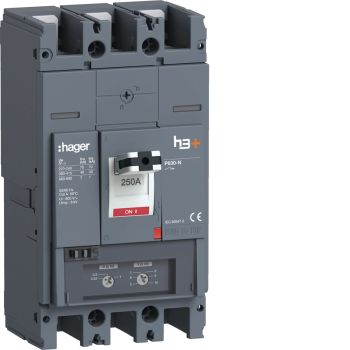

Hager HNW250DR power switch h3+P630 TM 3x250A 40kA
|
1.183,11 EUR |
|
|
( 1.407,90 EUR incl. VAT ) ≈ £991.45 | ≈ $1,328.63 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1990298 |
| Mfg Part No: | HNW250DR |
| UPC/EAN: | 3250613244507 |
| Weight: | 4.9 kg |
| Type: | HNW250DR |
Product information for Hager HNW250DR:
| General | |
| Rated permanent current Iu | 250 A |
| Rated voltage | 690 V |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 40 kA |
| Overload release current setting | 250 A |
| Adjustment range undelayed short-circuit release | 2500 A |
| Type of electrical connection of main circuit | Screw connection |
| Device construction | Built-in device fixed built-in technique |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of poles | 3 |
| Position of connection for main current circuit | Front side |
| Type of control element | Toggle |
| Degree of protection (IP) | IP40 |
| Power loss | 71.4 W |
| Integrated earth fault protection | |
| Suitable for DIN rail (top hat rail) mounting | |
| DIN rail (top hat rail) mounting optional | |
| With switched-off indicator | |
| Complete device with protection unit | |
| Motor drive integrated | |
| Motor drive optional | |
| With integrated under voltage release | |
