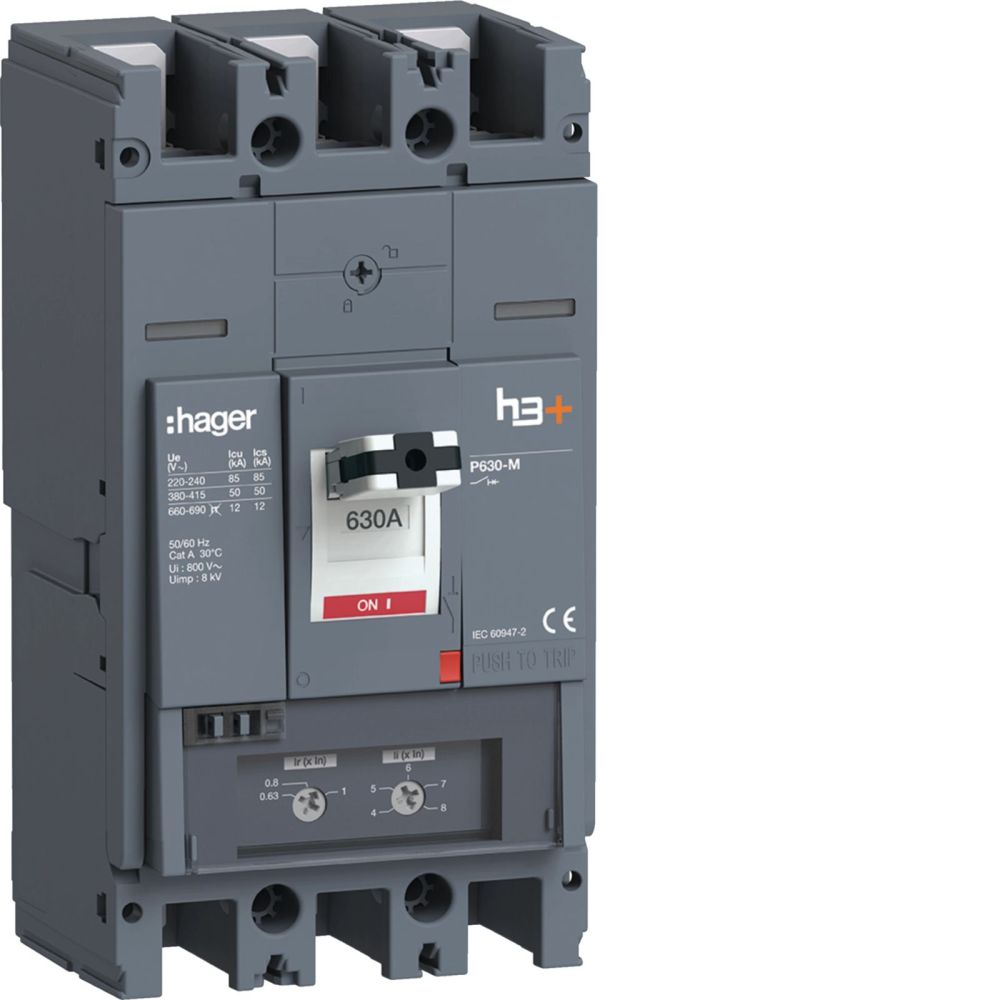

Hager HMW630DE power switch h3+P630 TM 3x630A 50kA
|
1.723,69 EUR |
|
|
( 2.051,19 EUR incl. VAT ) ≈ £1,444.45 | ≈ $1,935.70 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1990297 |
| Mfg Part No: | HMW630DE |
| UPC/EAN: | 3250613244439 |
| Weight: | 4.9 kg |
| Type: | HMW630DE |
Product information for Hager HMW630DE:
| General | |
| Rated permanent current Iu | 630 A |
| Rated voltage | 690 V |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 50 kA |
| Overload release current setting | 630 A |
| Adjustment range undelayed short-circuit release | 5040 A |
| Type of electrical connection of main circuit | Screw connection |
| Device construction | Built-in device fixed built-in technique |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of poles | 3 |
| Position of connection for main current circuit | Front side |
| Type of control element | Toggle |
| Degree of protection (IP) | IP40 |
| Power loss | 145.2 W |
| Integrated earth fault protection | |
| Suitable for DIN rail (top hat rail) mounting | |
| DIN rail (top hat rail) mounting optional | |
| With switched-off indicator | |
| Complete device with protection unit | |
| Motor drive integrated | |
| Motor drive optional | |
| With integrated under voltage release | |
Questions & answers
What is the delivery time of Hager HMW630DE power switch h3+P630 TM 3x630A 50kA?
The article Hager HMW630DE power switch h3+P630 TM 3x630A 50kA is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager HMW630DE to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager HMW630DE power switch h3+P630 TM 3x630A 50kA always at the best possible price. We can give you a discount of 2% on Hager HMW630DE power switch h3+P630 TM 3x630A 50kA if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
