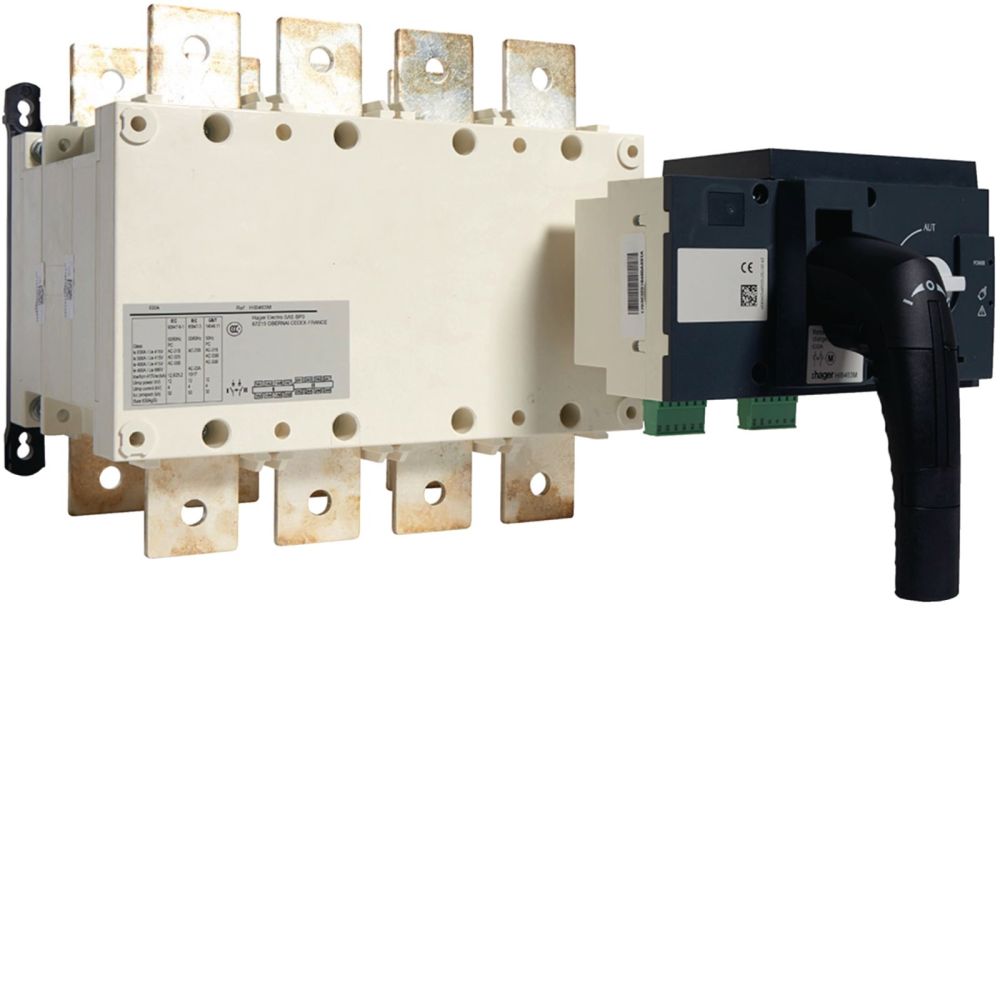

Hager HIB463M
load transfer switch with motor drive 4-pole 630 A
|
6.773,40 EUR 7.058,60 EUR |
|||||||||||
|
( 8.060,35 EUR incl. VAT ) ≈ £5,676.11 | ≈ $7,606.53 plus delivery charges: 148,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 637569 | ||||||||||
| Mfg Part No: | HIB463M | ||||||||||
| UPC/EAN: | 3250613191399 | ||||||||||
| Weight: | 15.496 kg | ||||||||||
| Type: | HIB463M | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager HIB463M:
Funktion:
- 3 stabile Schaltstellungen (I-0-II) und das automatische Umschalten unter Last von einer Stellung zur anderen Sicherheitstrennung mit Schaltstellungsanzeige
- manueller Notschaltgriff
- großzügig dimensionierte Anschlussschienen, die den Einsatz von Verbindungsschienen ermöglichen. Mit Bereitschaftsrelais mit ständiger Überwachung der Verfügbarkeit des Gerätes, integrierter Hilfsschalter (SÖ) für jede Schaltstelle und automatische oder manuelle Umschaltung wählbar.
Hinweis: Eine manuelle Verriegelung mit Vorhängeschloss ist möglich.
| General | |
| Number of switches | 1 |
| Max. rated operation voltage Ue AC | 415 V |
| Rated operating voltage | 415 V |
| Rated permanent current Iu | 630 A |
| Rated permanent current at AC-23, 400 V | 500 A |
| Rated permanent current at AC-21, 400 V | 630 A |
| Rated operation power at AC-3, 400 V | 180 kW |
| Rated short-time withstand current lcw | 17 kA |
| Rated operation power at AC-23, 400 V | 283 kW |
| Switching power at 400 V | 414 kW |
| Conditioned rated short-circuit current Iq | 50 kA |
| Number of poles | 4 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as change-over contact | 0 |
| Device construction | Built-in device fixed built-in technique |
| Colour control element | Other |
| Type of control element | Other |
| Type of electrical connection of main circuit | Cable clamp |
| Degree of protection (IP), front side | IP00 |
| Degree of protection (NEMA) | Other |
| Version as main switch | |
| Version as maintenance-/service switch | |
| Version as safety switch | |
| Version as emergency stop installation | |
| Version as reversing switch | |
| Motor drive optional | |
| Motor drive integrated | |
| Voltage release optional | |
| Suitable for front mounting 4-hole | |
| Suitable for front mounting centre | |
| Suitable for distribution board installation | |
| Suitable for intermediate mounting | |
| Interlockable | |
| Floor mounting | |
Questions & answers
What is the delivery time of Hager HIB463M load transfer switch with motor drive 4-pole 630 A?
The article Hager HIB463M load transfer switch with motor drive 4-pole 630 A is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager HIB463M to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager HIB463M load transfer switch with motor drive 4-pole 630 A always at the best possible price. We can give you a discount of 2% on Hager HIB463M load transfer switch with motor drive 4-pole 630 A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Hager HIB463M load transfer switch with motor drive 4-pole 630 A we can offer you a price of 6.519,40 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
