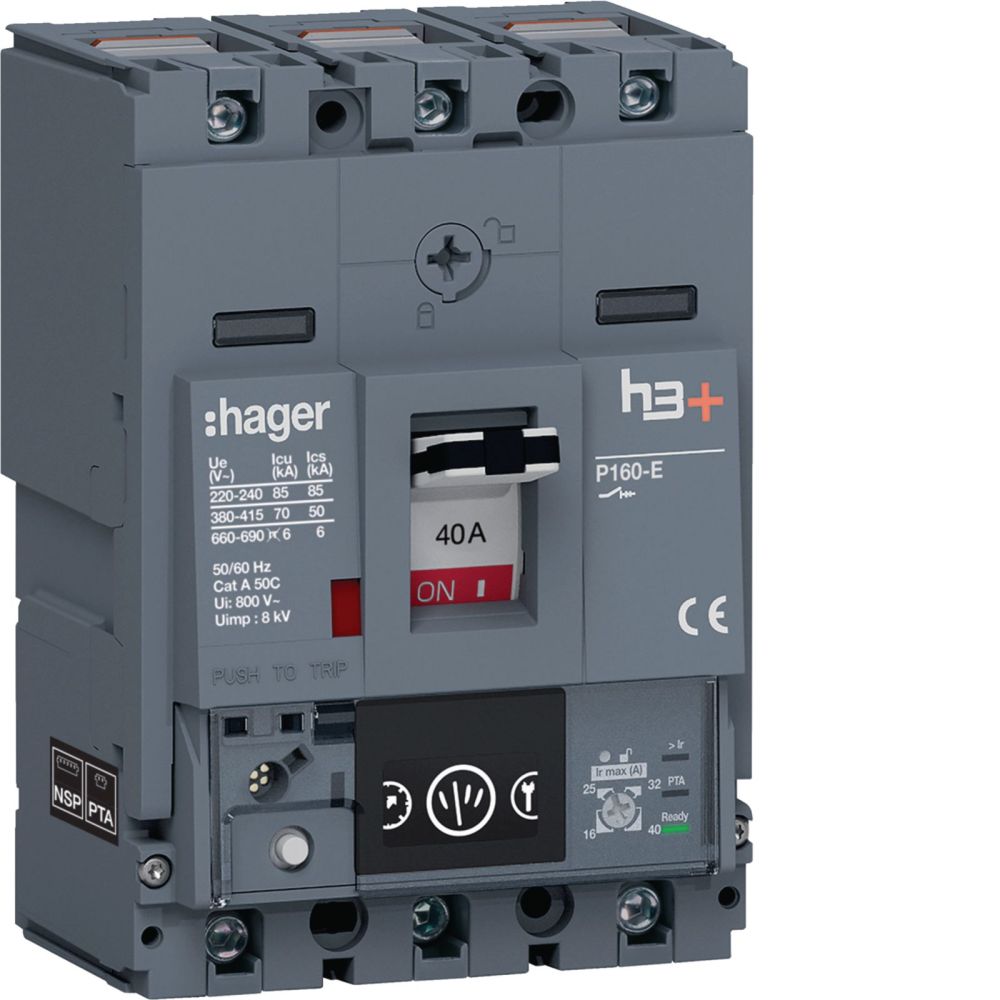

Hager HES040NC power switch h3+ P160 Energy 3P3D 40A 70kA CTC
|
1.677,51 EUR 1.748,14 EUR |
|||||||||||
|
( 1.996,24 EUR incl. VAT ) ≈ £1,405.75 | ≈ $1,883.84 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 592118 | ||||||||||
| Mfg Part No: | HES040NC | ||||||||||
| UPC/EAN: | 3250613141233 | ||||||||||
| Weight: | 1.1 kg | ||||||||||
| Type: | HES040NC | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager HES040NC:
| General | |
| Rated permanent current Iu | 40 A |
| Rated voltage | 690 V |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 70 kA |
| Adjustment range short-term delayed short-circuit release | 400 A |
| Type of electrical connection of main circuit | Screw connection |
| Device construction | Built-in device fixed built-in technique |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of poles | 3 |
| Position of connection for main current circuit | Front side |
| Type of control element | Toggle |
| Degree of protection (IP) | IP40 |
| Power loss | 1.68 W |
| Integrated earth fault protection | |
| Suitable for DIN rail (top hat rail) mounting | |
| DIN rail (top hat rail) mounting optional | |
| With switched-off indicator | |
| Complete device with protection unit | |
| Motor drive integrated | |
| Motor drive optional | |
| With integrated under voltage release | |
Questions & answers
What is the delivery time of Hager HES040NC power switch h3+ P160 Energy 3P3D 40A 70kA CTC?
The article Hager HES040NC power switch h3+ P160 Energy 3P3D 40A 70kA CTC is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager HES040NC to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager HES040NC power switch h3+ P160 Energy 3P3D 40A 70kA CTC always at the best possible price. We can give you a discount of 2% on Hager HES040NC power switch h3+ P160 Energy 3P3D 40A 70kA CTC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Hager HES040NC power switch h3+ P160 Energy 3P3D 40A 70kA CTC we can offer you a price of 1.664,93 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
