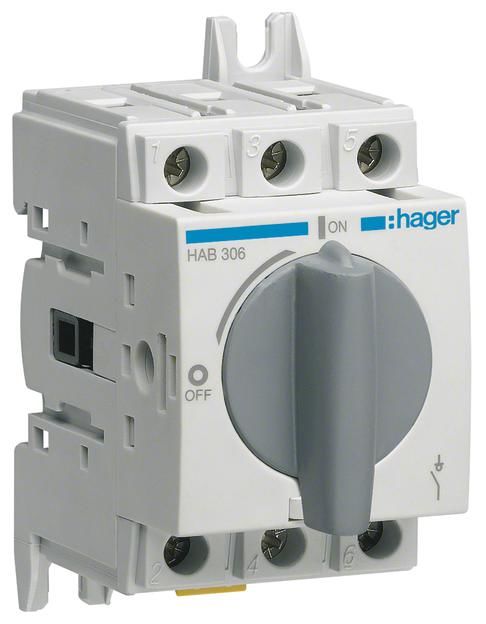

Hager HAB306 switch disconnector 3P 63A
|
70,87 EUR 73,85 EUR |
|||||||||||
|
( 84,34 EUR incl. VAT ) ≈ £59.81 | ≈ $79.73 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 654823 | ||||||||||
| Mfg Part No: | HAB306 | ||||||||||
| UPC/EAN: | 3250613140267 | ||||||||||
| Weight: | 0.18 kg | ||||||||||
| Type: | HAB306 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager HAB306:
| General | |
| Number of switches | 1 |
| Max. rated operation voltage Ue AC | 415 V |
| Rated operating voltage | 415 V |
| Rated permanent current Iu | 63 A |
| Rated permanent current at AC-23, 400 V | 40 A |
| Rated permanent current at AC-21, 400 V | 63 A |
| Rated short-time withstand current lcw | 1.26 kA |
| Rated operation power at AC-23, 400 V | 28 kW |
| Switching power at 400 V | 41 kW |
| Conditioned rated short-circuit current Iq | 50 kA |
| Number of poles | 3 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Device construction | Built-in device fixed built-in technique |
| Colour control element | Grey |
| Type of control element | Short thumb-grip |
| Type of electrical connection of main circuit | Screw connection |
| Degree of protection (IP), front side | IP20 |
| Degree of protection (NEMA) | Other |
| Depth | 69 mm |
| Height | 68 mm |
| Width | 45 mm |
| Width in number of modular spacings | 3 |
| Version as main switch | |
| Version as maintenance-/service switch | |
| Version as safety switch | |
| Version as emergency stop installation | |
| Version as reversing switch | |
| Motor drive optional | |
| Motor drive integrated | |
| Voltage release optional | |
| Suitable for front mounting 4-hole | |
| Suitable for front mounting centre | |
| Suitable for distribution board installation | |
| Suitable for intermediate mounting | |
| Interlockable | |
Questions & answers
What is the delivery time of Hager HAB306 switch disconnector 3P 63A?
The article Hager HAB306 switch disconnector 3P 63A is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager HAB306 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager HAB306 switch disconnector 3P 63A always at the best possible price. We can give you a discount of 2% on Hager HAB306 switch disconnector 3P 63A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Hager HAB306 switch disconnector 3P 63A we can offer you a price of 68,21 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Hager HAB306 switch disconnector 3P 63A
 |
Hager HZC311 auxiliary contact 1NO+1NC 20-125A for switch disconnector
Auxiliary contact 1 NO + 1 NC for load break switch 20-125A Lieske Part No.: 917994 Mfg Part No: HZC311 |
24,04 EUR 25,05 EUR
 ≈ £20.29 | ≈ $27.04
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
