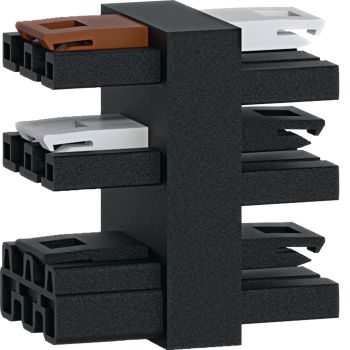

Hager GKWAWC3 distributor Wago Winsta light off/series circuit
|
29,92 EUR 31,19 EUR |
|||||||||||
|
( 35,60 EUR incl. VAT ) ≈ £25.07 | ≈ $33.60 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 602836 | ||||||||||
| Mfg Part No: | GKWAWC3 | ||||||||||
| UPC/EAN: | 4012740868594 | ||||||||||
| Weight: | 0.0442 kg | ||||||||||
| Type: | GKWAWC3 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager GKWAWC3:
| General | |
| Rated voltage | 250 V |
| Rated current | 25 A |
| Rated current to luminaire | 10 A |
| Number of poles | 3 |
| Degree of protection (IP) | IP20 |
| Number of inputs | 1 |
| Number of outputs | 5 |
| Phase pickup | L1 |
| Pole codification | L, N, PE |
| Colour coding/contact insert | Multi colour |
| Colour of the separate adapter piece | Black |
| Locking mechanism | Integrated in plug-in connector |
| Max. continuous temperature resistance contact part | 85 °C |
| Max. continuous temperature resistance strain relief | 105 °C |
| Material housing | Polyamide (PA) |
| Fire load | 0.214 kWh |
| Contact material | Other |
| Surface finish contacts | Tinned |
| Pollution degree | 3 |
| Continuity resistor | 1 mOhm |
| Rated surge voltage | 4 kV |
| Length | 46 mm |
| Height | 52.5 mm |
| Width | 38 mm |
| Type of distributor | Switching distributor |
| Type of integrated switching | Series circuit |
| Mounting possibility | With separate adapter |
| Mechanical coding | |
| Halogen free | |
Questions & answers
What is the delivery time of Hager GKWAWC3 distributor Wago Winsta light off/series circuit?
The article Hager GKWAWC3 distributor Wago Winsta light off/series circuit is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager GKWAWC3 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager GKWAWC3 distributor Wago Winsta light off/series circuit always at the best possible price. We can give you a discount of 2% on Hager GKWAWC3 distributor Wago Winsta light off/series circuit if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Hager GKWAWC3 distributor Wago Winsta light off/series circuit we can offer you a price of 29,47 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
