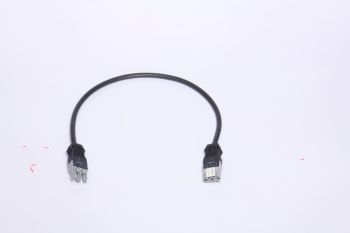

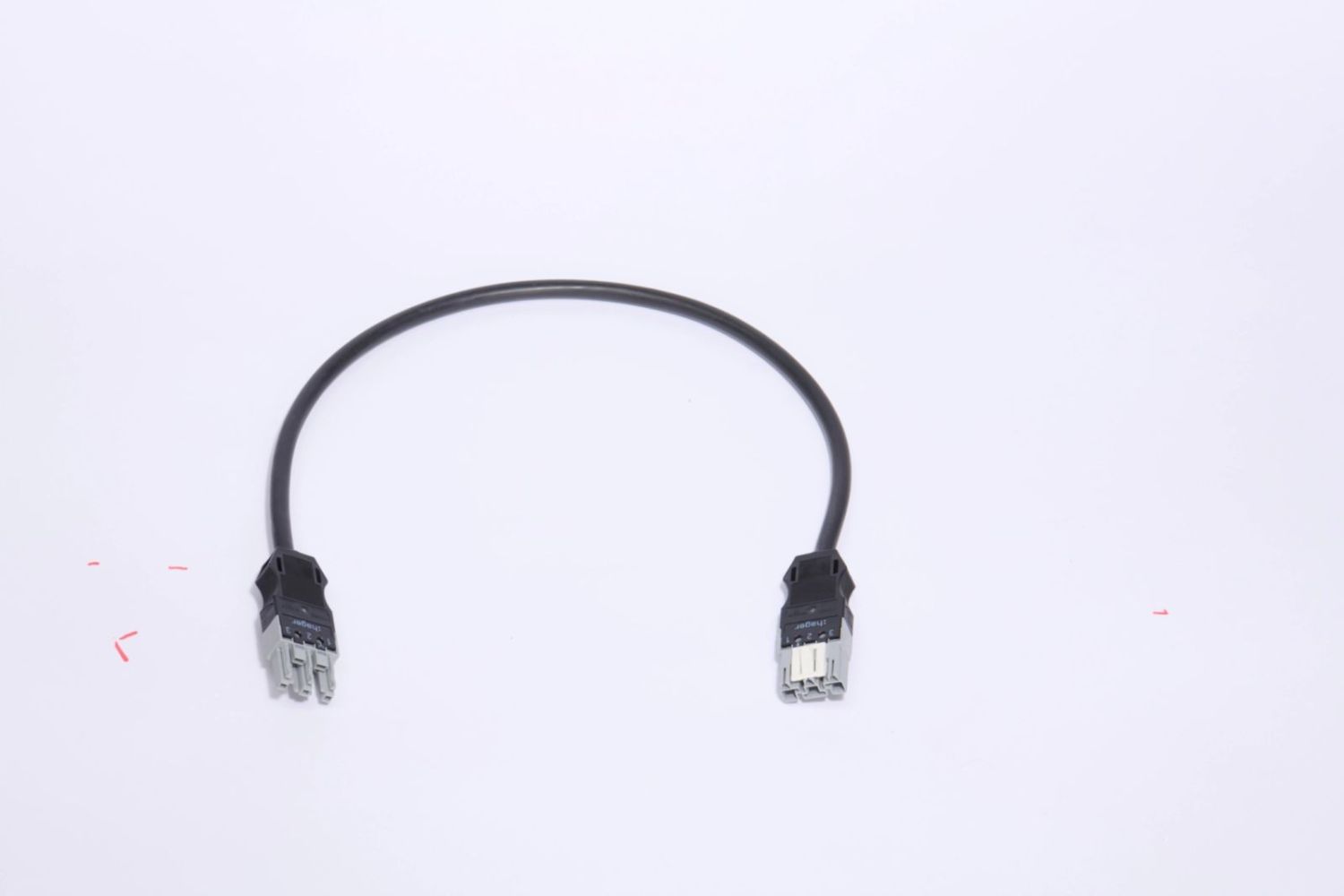

Hager GKWAD93006 connection cable WAGO Winsta Code B 3x1.5 mm² 0.6 m hfr Cca
|
21,95 EUR 22,87 EUR |
|||||||||||
|
( 26,12 EUR incl. VAT ) ≈ £18.39 | ≈ $24.65 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 888448 | ||||||||||
| Mfg Part No: | GKWAD93006 | ||||||||||
| UPC/EAN: | 4012740002943 | ||||||||||
| Weight: | 0.09 kg | ||||||||||
| Type: | GKWAD93006 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager GKWAD93006:
| General | |
| Rated voltage | 400 V |
| Rated current | 25 A |
| Number of poles | 3 |
| Degree of protection (IP) | IP20 |
| Type of finished cable | Connecting cable |
| Type side 1 | Plug |
| Type side 2 | Bus |
| Conductor end treatment | Untreated |
| Total length | 600 mm |
| Colour coding/contact insert | Grey |
| Colour housing | Black |
| Cable type | H05Z1Z1-F |
| Cable diameter | 9.4 mm |
| Dismantle length | 0 mm |
| Strip length | 0 mm |
| Colour outer sheath | Black |
| Pole codification | 1, 2, PE |
| Nominal cross section conductor | 1.5 mm² |
| Locking mechanism | Integrated in plug-in connector |
| Insulating piece permanent temperature-resistant | 105 °C |
| Cable permanent temperature-resistant to | 70 °C |
| Max. operation temperature at conductor | 70 °C |
| Fire load | 0.1727 kWh |
| Surface finish contacts | Tinned |
| Pollution degree | 3 |
| Continuity resistor | 1 mOhm |
| Rated surge voltage | 6 kV |
| Contact material | CuZn |
| Euro class acidity according to EN 13501-6 | None |
| Euro class flaming droplets/particles according to EN 13501-6 | None |
| Material housing | Polyamide (PA) |
| Reaction-to-fire class according to EN 13501-6 | Cca |
| Smoke development class according to EN 13501-6 | None |
| Mechanical coding | |
| Halogen free | |
