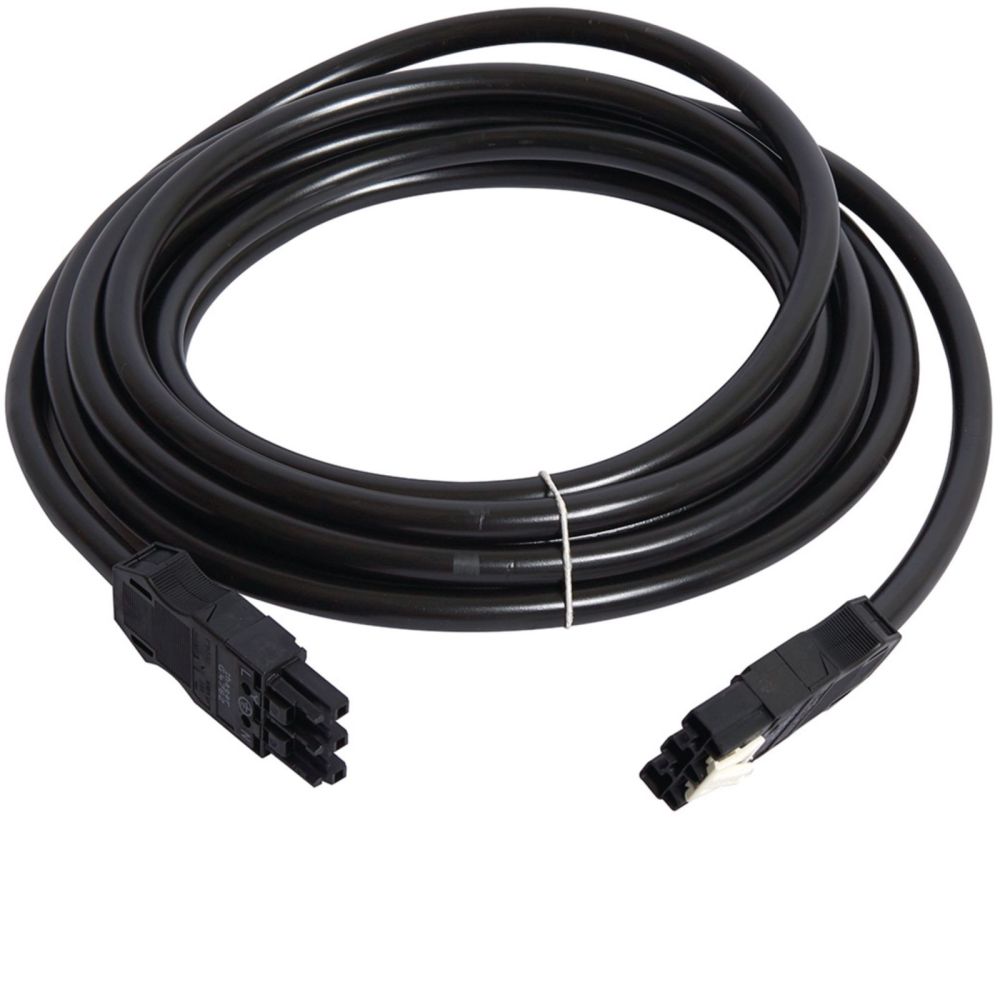

Hager GKWAD23050 connection cable Winsta Code S 3x2.5 mm² 5.0 m PVC Eca
|
26,60 EUR 27,72 EUR |
|||||||||||
|
( 31,65 EUR incl. VAT ) ≈ £22.29 | ≈ $29.87 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 643058 | ||||||||||
| Mfg Part No: | GKWAD23050 | ||||||||||
| UPC/EAN: | 4012740868808 | ||||||||||
| Weight: | 0.7896 kg | ||||||||||
| Type: | GKWAD23050 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager GKWAD23050:
| General | |
| Rated voltage | 250 V |
| Rated current | 20 A |
| Number of poles | 3 |
| Degree of protection (IP) | IP20 |
| Type of finished cable | Connecting cable |
| Type side 1 | Bus |
| Type side 2 | Plug |
| Conductor end treatment | Untreated |
| Total length | 5000 mm |
| Colour coding/contact insert | Brown |
| Colour housing | Brown |
| Cable type | H05VV-F |
| Cable diameter | 10 mm |
| Dismantle length | 0 mm |
| Strip length | 0 mm |
| Colour outer sheath | Black |
| Pole codification | 1, 2, 3 |
| Nominal cross section conductor | 2.5 mm² |
| Locking mechanism | Integrated in plug-in connector |
| Insulating piece permanent temperature-resistant | 105 °C |
| Cable permanent temperature-resistant to | 70 °C |
| Max. operation temperature at conductor | 70 °C |
| Fire load | 2.362222 kWh |
| Surface finish contacts | Tinned |
| Pollution degree | 3 |
| Continuity resistor | 1 mOhm |
| Rated surge voltage | 4 kV |
| Contact material | CuSn |
| Euro class acidity according to EN 13501-6 | None |
| Euro class flaming droplets/particles according to EN 13501-6 | None |
| Material housing | Polyamide (PA) |
| Reaction-to-fire class according to EN 13501-6 | Eca |
| Smoke development class according to EN 13501-6 | None |
| Mechanical coding | |
| Halogen free | |
Questions & answers
What is the delivery time of Hager GKWAD23050 connection cable Winsta Code S 3x2.5 mm² 5.0 m PVC Eca?
The article Hager GKWAD23050 connection cable Winsta Code S 3x2.5 mm² 5.0 m PVC Eca is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager GKWAD23050 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager GKWAD23050 connection cable Winsta Code S 3x2.5 mm² 5.0 m PVC Eca always at the best possible price. We can give you a discount of 2% on Hager GKWAD23050 connection cable Winsta Code S 3x2.5 mm² 5.0 m PVC Eca if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Hager GKWAD23050 connection cable Winsta Code S 3x2.5 mm² 5.0 m PVC Eca we can offer you a price of 26,20 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
