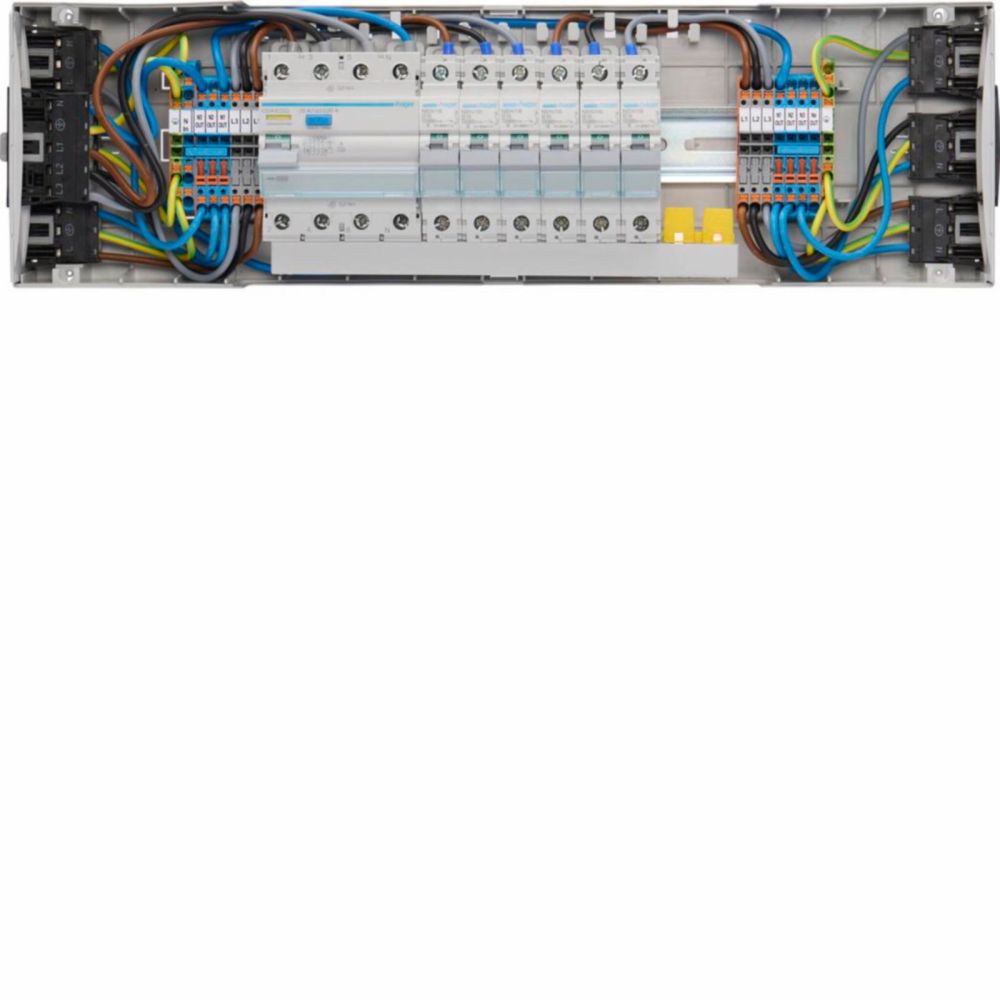

Hager GKEV12SET22 small distributor for BR channel equipped with CDA625D +6xNBN116
|
537,51 EUR 560,14 EUR |
|||||||||||
|
( 639,64 EUR incl. VAT ) ≈ £450.43 | ≈ $603.62 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 889801 | ||||||||||
| Mfg Part No: | GKEV12SET22 | ||||||||||
| UPC/EAN: | 4012740003377 | ||||||||||
| Weight: | 2 kg | ||||||||||
| Type: | GKEV12SET22 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager GKEV12SET22:
| General | |
| Mounting method | Cable duct |
| Number of phases | 3 |
| Protection | Miniature- / earth leakage circuit breaker |
| Total number of groups | 1 |
| Number of direct groups | 6 |
| Number of light groups | 0 |
| Number of groups behind earth leakage switch | 6 |
| Number of earth leakage circuit breakers | 1 |
| Number of earth leakage switches 30 mA | 1 |
| Number of earth leakage switches 300 mA | 0 |
| Number of poles main switch | 5 |
| Main switch rated current | 16 A |
| Cooker group | None |
| Material housing | Plastic |
| Degree of protection (IP) | IP2XC |
| Height | 130 mm |
| Width | 450 mm |
| Width in number of modular spacings | 12 |
| Depth | 52 mm |
| Built-in depth | 52 mm |
| Built-in height | 130 mm |
| Built-in width | 450 mm |
| Colour | Grey |
| Number of rows | 1 |
| Power consumption | 17.7 W |
| RAL-number | 7035 |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V | 10 kA |
| Release characteristic | B |
| Type of closure | Cylinder |
| Type of cover | Cover |
| Cooker group suitable as power current group | |
| With socket outlet | |
| With bell transformer | |
| Over voltage protection | |
| Extension possible | |
| With transparent cover | |
| Lockable | |
| Suitable for data | |
| With N-disconnect slide | |
