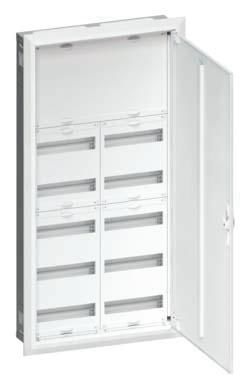

Hager FWU72N field distributor UP 140PLE with cover (150mm), IP30, SKII

Field distributor UP 140PLE, with cover (150mm), IP30, SKII, niche 1107x565x115mm. Field distributor UP/HW certified according to DIN EN 61 439-1/-3, dimensional standard according to DIN 43 870. For installation of devices up to 125 A, air and creepage distances according to DIN EN 60664-1, protection class IP30. Consists of cabinet, cover frame and sheet steel door, powder-coated in RAL 9010 (pure white). Complete distributor with installation kit equipped with profiled mounting rails, top two rows with 15mm high top hat rails for terminal blocks at 150mm spacing and closed cover, bottom rows for 7.5mm high top hat rails with 150mm center distance and matching contact protection covers. Cable entries at the top/bottom through removable plastic flange plates with pre-punched holes and integrated cable strain relief. Power entries that can be knocked out at the side and rear. Door with internal adjustable hinges and an opening angle of 110°. Doors can be hinged on the right and left, door hinge can be changed without tools. Door lock with sash lock and folding handle that can be sealed as standard. Two-door design for cabinet widths of 800mm and over (3-panel). Right-hand doors maximum 2 panels wide. With double door with bar lock. Frame depth or overhang 13 mm. Notes: Interchangeable locking systems possible.
Type: FWU72N
